842-041 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 41POS 0.100

Part	Termination Rows	Material - Insulation	Contact Finish	Read Out	Contact Material	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Positions	Card Type	Number of Positions/Bay/Row	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Rows

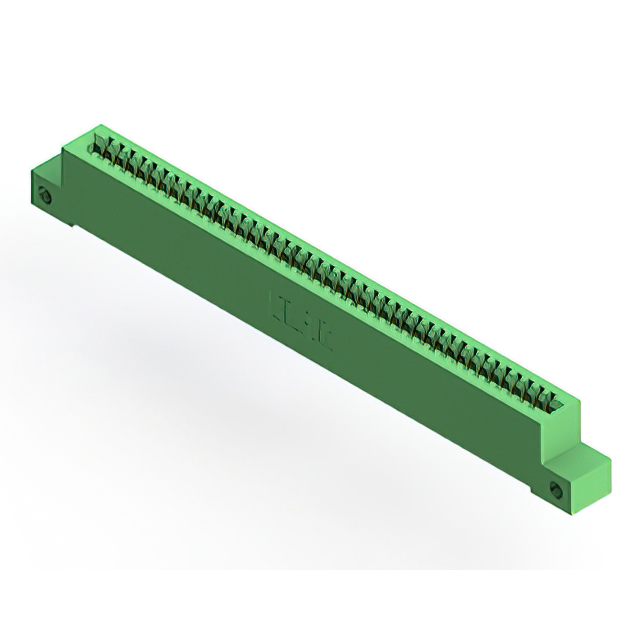

EDAC Inc. 842-041-521-112	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	Solder	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-541-108	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-523-102	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	Solder	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-540-101	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female				125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-544-107	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Flush Mount M3 Threaded Insert Top Opening			125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-523-104	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C	Solder	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1

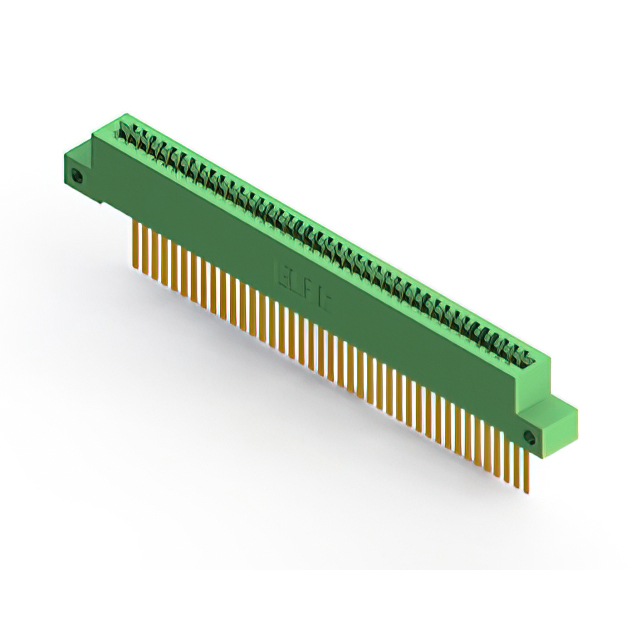

EDAC Inc. 842-041-544-112	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-544-108	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-559-108	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C	Solder	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
EDAC Inc. 842-041-544-103	1	Diallyl Phthalate (DAP)	Gold	Single	Copper Alloy	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm	125 °C	-40 C	Wire Wrap	41	Non Specified - Single Edge	41	Green	0.25 Ám	10 Áin	Cantilever	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	1
