SC05-11 Series

Catalog

DISPLAY 7SEG 0.5" SGL GRN 10DIP

Part	Display Type	Number of Characters	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Current - Test	Package / Case	Package / Case	Millicandela Rating	Common Pin	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Color	Wavelength - Peak	Package / Case [x]	Package / Case [x]
Kingbright SC05-11CGKWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA	0.6 in 15.24 mm	10-DIP	34 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	2.1 V	Green
Kingbright SC05-11YWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA		18-DIP	6.1 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	2.1 V	Yellow	590 nm	0.5 in	12.7 mm
Kingbright SC05-11SRWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA		18-DIP	34 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1.85 V	Red	660 nm	0.5 in	12.7 mm

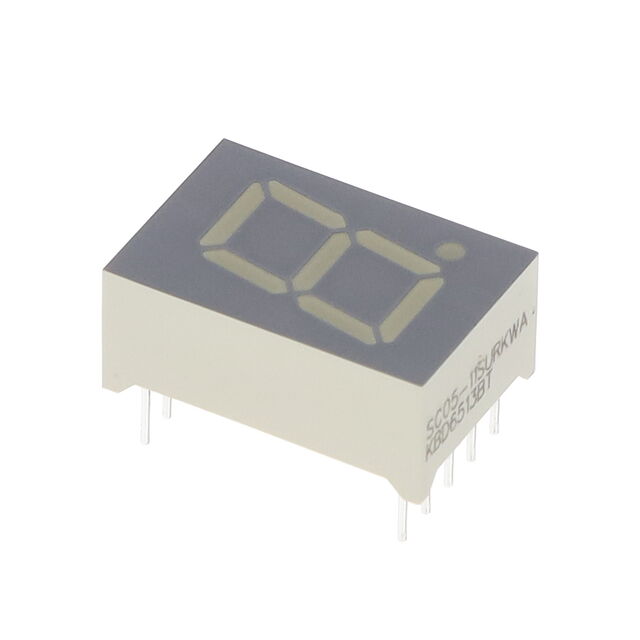

Kingbright SC05-11SURKWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA	0.6 in 15.24 mm	10-DIP	69 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	1.95 V	Red	645 nm
Kingbright SC05-11EWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA		18-DIP		Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	2 V	Red	627 nm	0.5 in	12.7 mm
Kingbright SC05-11GWA	7-Segment	1	12.7 mm	0.5 in	62.5 mW	20 mA		18-DIP	10 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	2.2 V	Green	565 nm	0.5 in	12.7 mm
Kingbright SC05-11SYKWA	7-Segment	1	12.7 mm	0.5 in	75 mw	20 mA	0.6 in 15.24 mm	10-DIP	120 mcd	Common Cathode	8 mm	0.5 "	12.7 mm	0.748 in	0.315 in	19 mm	2 V	Yellow	590 nm
