EGA.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Material	Color	Shell Material	Mounting Feature	Mounting Type	Current Rating (Amps)	Orientation	Insert Material	Shielding	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Ingress Protection	Connector Type	Shell Size - Insert	Number of Positions	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Termination
LEMO EGA.2B.303.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	17 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	303
LEMO EGA.2B.307.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	11 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets		7	307
LEMO EGA.2B.306.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	12 Amps	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	306	6
LEMO EGA.2B.308.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	10 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	308	8
LEMO EGA.2B.310.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	8 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	310	10
LEMO EGA.2B.316.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	6 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets		16		316

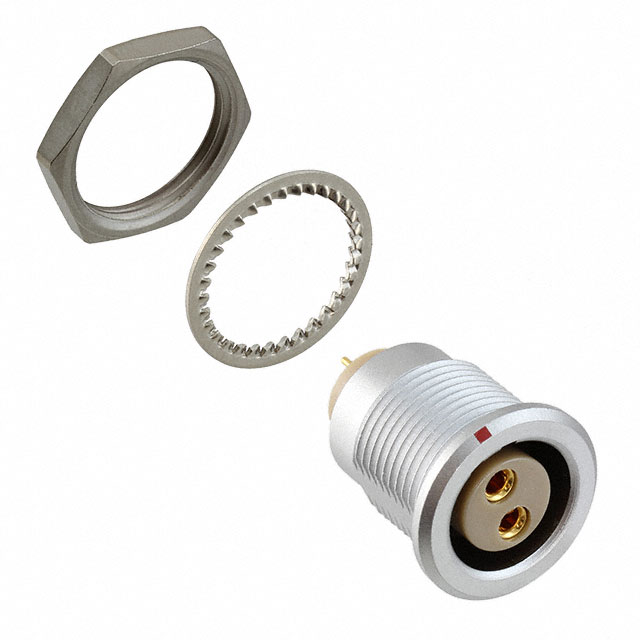

LEMO EGA.2B.302.CLN	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount Through Hole	25 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	302	2			Solder
LEMO EGA.2B.302.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	25 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	302	2
LEMO EGA.2B.319.CLL	Chrome	-55 C	250 °C	Push-Pull	Bronze	Silver	Brass	Bulkhead - Rear Side Nut	Panel Mount	5 A	A	Polyetheretherketone (PEEK)	Shielded	UL94 V-0	Gold	1.5 Ám	59 Áin	Metal	IP50 - Dust Protected	Receptacle Female Sockets	319	19
