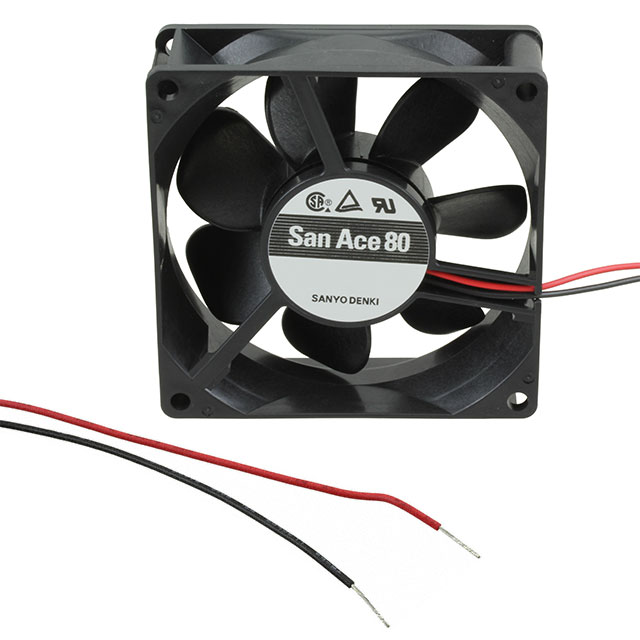

109R0848 Series

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Manufacturer: Sanyo Denki America Inc.

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Catalog

DC Fans Axial Fan, 80x80x25mm, 12VDC, 53CFM, 4.44W, 40dBA, Ball, 3 Lead Wire, Tach

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Termination	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Power (Watts)	Bearing Type	Weight	Weight	Voltage - Rated	RPM	Static Pressure	Static Pressure	Features	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]
Sanyo Denki America Inc. 109R0848S4011	Plastic	60 mA	Plastic	1.19 mł/min	42.4 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	34 dB(A)	-20 ░C	70 °C	25 mm	80 mm	80 mm	Tubeaxial	2.88 W	Ball	110.22 g	0.243 lb	48 VDC	3400 RPM	0.193 in H2O	48.1 Pa	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109R0848K401	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848K4D01	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa	Locked Rotor Sensor	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848K4011	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa	Locked Rotor Protection Speed Sensor (Tach)	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848K4D011	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa	Locked Rotor Sensor	40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848S4D01	Plastic	60 mA	Plastic			55.2 VDC	40.8 VDC	CSA TUV UL	3 Wire Leads	34 dB(A)	-20 ░C	70 °C	25 mm	80 mm	80 mm	Tubeaxial	2.88 W	Ball	110.22 g	0.243 lb	48 VDC	3400 RPM	0.193 in H2O	48.1 Pa	Locked Rotor Sensor
Sanyo Denki America Inc. 109R0848K402	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	2 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa		40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848K4021	Plastic	100 mA	Plastic	1.54 mł/min	55.1 CFM	55.2 VDC	40.8 VDC	CSA TUV UL	2 Wire Leads	41 dB	-20 ░C	60 °C	25 mm	80 mm	80 mm	Tubeaxial	4.8 W	Ball	110.22 g	0.243 lb	48 VDC	4600 RPM	0.355 in H2O	88.4 Pa		40000 Hrs	60 °C	-4 °F
Sanyo Denki America Inc. 109R0848S4021	Plastic	60 mA	Plastic			55.2 VDC	40.8 VDC	CSA TUV UL	2 Wire Leads	34 dB(A)	-20 ░C	70 °C	25 mm	80 mm	80 mm	Tubeaxial	2.88 W	Ball	110.22 g	0.243 lb	48 VDC	3400 RPM	0.193 in H2O	48.1 Pa
