TPS7A8300 Series

2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout voltage regulator with power good

Catalog

2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout voltage regulator with power good

Part	Control Features	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Package / Case	Output Type	Protection Features	Output Configuration	Number of Regulators	PSRR	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max)	Regulator Type	Voltage - Output [Min]	Voltage - Output [Max]	Utilized IC / Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Channels per IC	Supplier Device Package	PSRR [Max]	PSRR [Min]	Voltage - Output (Max) [Max]
Texas Instruments TPS7A8300RGRT	Enable Power Good Soft Start	0.8 V	5 mA	20-VFQFN Exposed Pad	Adjustable/Programmable	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	1	40 dB	0.2 V	4 mA	2 A	6.5 V	Surface Mount	-40 °C	125 ¯C	5 V

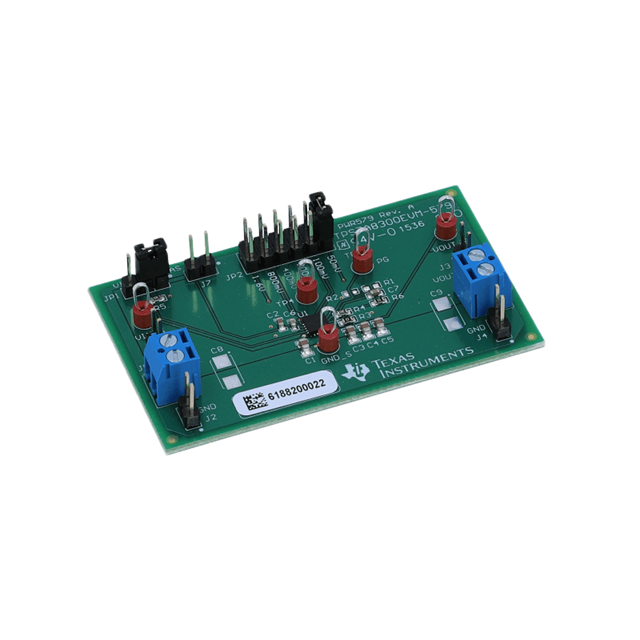

Texas Instruments TPS7A8300EVM-579												2 A						Positive Adjustable	0.8 V	3.95 V	TPS7A8300	Fully Populated	6.5 V	1.1 V	Board(s)	1 - Single
Texas Instruments TPS7A8300RGWR	Enable Power Good Soft Start	0.8 V	5 mA	20-VQFN Exposed Pad	Adjustable/Programmable	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	1	40 dB	0.2 V	4 mA	2 A	6.5 V	Surface Mount	-40 °C	125 ¯C	5 V										20-VQFN (5x5)
Texas Instruments TPS7A8300ARGRT	Enable Power Good Soft Start	0.8 V	5 mA	20-VFQFN Exposed Pad	Adjustable/Programmable	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	1		0.3 V	4 mA	2 A	6.5 V	Surface Mount	-40 °C	125 ¯C												42 dB	25 dB	5.2 V

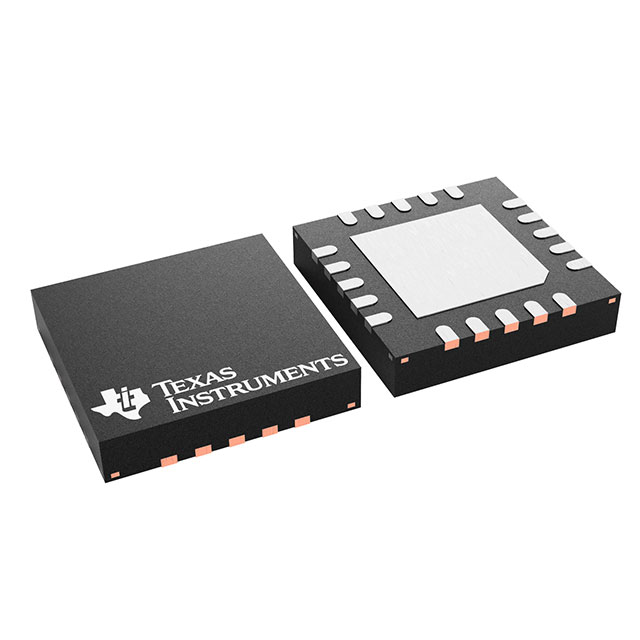

Texas Instruments TPS7A8301ARGWR	Current Limit Enable Power Good Soft Start	0.8 V	5 mA	20-VQFN Exposed Pad	Adjustable	Over Current Over Temperature Short Circuit	Positive	1		0.3 V	4.3 mA	2 A	6.5 V	Surface Mount	-40 °C	125 ¯C											20-VQFN (5x5)	42 dB	39 dB	5.2 V

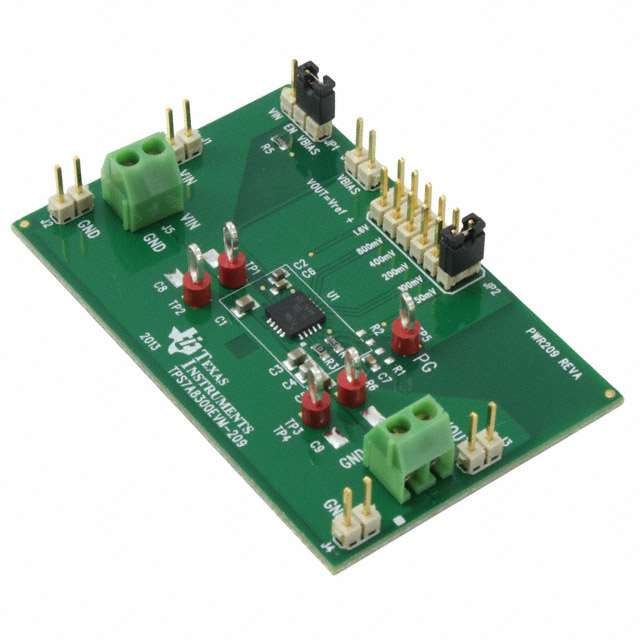

Texas Instruments TPS7A8300EVM-209												2 A						Positive Adjustable	0.8 V	3.95 V	TPS7A8300	Fully Populated	6.5 V	1.1 V	Board(s)	1 - Single
Texas Instruments TPS7A8300RGRR	Enable Power Good Soft Start	0.8 V	5 mA	20-VFQFN Exposed Pad	Adjustable/Programmable	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	1	40 dB	0.2 V	4 mA	2 A	6.5 V	Surface Mount	-40 °C	125 ¯C	5 V

Catalog

2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout voltage regulator with power good

Key Features

• Low dropout: 200 mV (max) at 2 AAccuracy over line, load, and temperature with BIAS: 0.75% (max)Output voltage noise:4.4 µVRMSat 0.8-V outputInput voltage range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VTPS7A8300A output voltage range:Adjustable operation: 0.8 V to 5.2 VANY-OUT™ operation: 0.8 V to 3.95 VTPS7A8301A output voltage range:Adjustable operation: 0.5 V to 5.2 VANY-OUT™ operation: 0.5 V to 2.075 VPower-supply ripple rejection:40 dB at 500 kHzExcellent load transient responseAdjustable soft-start inrush controlOpen-drain power-good (PG) outputLow dropout: 200 mV (max) at 2 AAccuracy over line, load, and temperature with BIAS: 0.75% (max)Output voltage noise:4.4 µVRMSat 0.8-V outputInput voltage range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VTPS7A8300A output voltage range:Adjustable operation: 0.8 V to 5.2 VANY-OUT™ operation: 0.8 V to 3.95 VTPS7A8301A output voltage range:Adjustable operation: 0.5 V to 5.2 VANY-OUT™ operation: 0.5 V to 2.075 VPower-supply ripple rejection:40 dB at 500 kHzExcellent load transient responseAdjustable soft-start inrush controlOpen-drain power-good (PG) output

Description

The TPS7A83A is a low-noise (4.4 µVRMS), low-dropout, linear regulator (LDO) capable of sourcing 2 A with only 200 mV of maximum dropout. The TPS7A8300A output voltage is pin programmable from 0.8 V to 3.95 V with a 50-mV resolution, and adjustable from 0.8 V to 5.2 V using an external resistor divider. The TPS7A8301A output voltage is pin programmable from 0.5 V to 2.075 V with a 25-mV resolution, and adjustable from 0.5 V to 5.2 V using an external resistor divider. The combination of low noise , high PSRR, and high output current capability makes the TPS7A83A an excellent choice to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications. This device is designed for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and RF components because the high performance of the TPS7A83A limits power-supply-generated phase noise and clock jitter. Specifically, RF amplifiers benefit from the high-performance and 5.2-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.75% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A83A ensure optimal system performance. The versatility of the TPS7A83A makes the device a component of choice for many demanding applications. The TPS7A83A is a low-noise (4.4 µVRMS), low-dropout, linear regulator (LDO) capable of sourcing 2 A with only 200 mV of maximum dropout. The TPS7A8300A output voltage is pin programmable from 0.8 V to 3.95 V with a 50-mV resolution, and adjustable from 0.8 V to 5.2 V using an external resistor divider. The TPS7A8301A output voltage is pin programmable from 0.5 V to 2.075 V with a 25-mV resolution, and adjustable from 0.5 V to 5.2 V using an external resistor divider. The combination of low noise , high PSRR, and high output current capability makes the TPS7A83A an excellent choice to power noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications. This device is designed for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and RF components because the high performance of the TPS7A83A limits power-supply-generated phase noise and clock jitter. Specifically, RF amplifiers benefit from the high-performance and 5.2-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.75% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A83A ensure optimal system performance. The versatility of the TPS7A83A makes the device a component of choice for many demanding applications.
