RT8295 Series

Catalog

IC REG BUCK ADJUSTABLE 2A 8SOP

Part	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Voltage - Input (Max) [Max]	Mounting Type	Topology	Package / Case	Package / Case [y]	Package / Case [x]	Function	Output Configuration	Voltage - Output (Max) [Max]	Frequency - Switching	Current - Output	Output Type	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Voltage - Output	Utilized IC / Part	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Contents
Richtek USA Inc. RT8295AHGSP	0.8 V	85 C	-40 ¯C	1	4.5 V	8-SOP-EP	23 V	Surface Mount	Buck	8-SOIC Exposed Pad	3.9 mm	0.154 in	Step-Down	Positive	20 V	340 kHz	2 A	Adjustable
Richtek USA Inc. RT8295BLZSP	0.8 V	85 C	-40 ¯C	1	4.5 V	8-SOP-EP	23 V	Surface Mount	Buck	8-SOIC Exposed Pad	3.9 mm	0.154 in	Step-Down	Positive	15 V	1.2 MHz	2 A	Adjustable

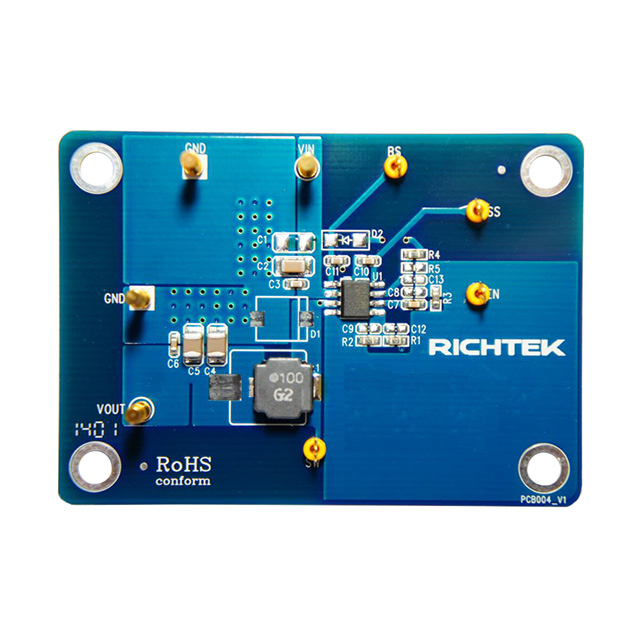

Richtek USA Inc. EVB_RT8295AHZSP																340 kHz	2 A		Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	3.3 V	RT8295A	Buck	4.5 V	23 V	DC/DC Step Down	Board(s)
Richtek USA Inc. RT8295BHGSP	0.8 V	85 C	-40 ¯C	1	4.5 V	8-SOP-EP	23 V	Surface Mount	Buck	8-SOIC Exposed Pad	3.9 mm	0.154 in	Step-Down	Positive	15 V	1.2 MHz	2 A	Adjustable
Richtek USA Inc. RT8295AHZSP	0.8 V	85 C	-40 ¯C	1	4.5 V	8-SOP-EP	23 V	Surface Mount	Buck	8-SOIC Exposed Pad	3.9 mm	0.154 in	Step-Down	Positive	20 V	340 kHz	2 A	Adjustable
