GRPB021 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 2POS 1.27MM

Part	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Connector Type	Contact Material	Number of Rows	Number of Positions Loaded	Mounting Type	Number of Positions	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Termination	Style	Material Flammability Rating	Fastening Type	Insulation Material	Contact Finish - Post	Contact Shape	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length

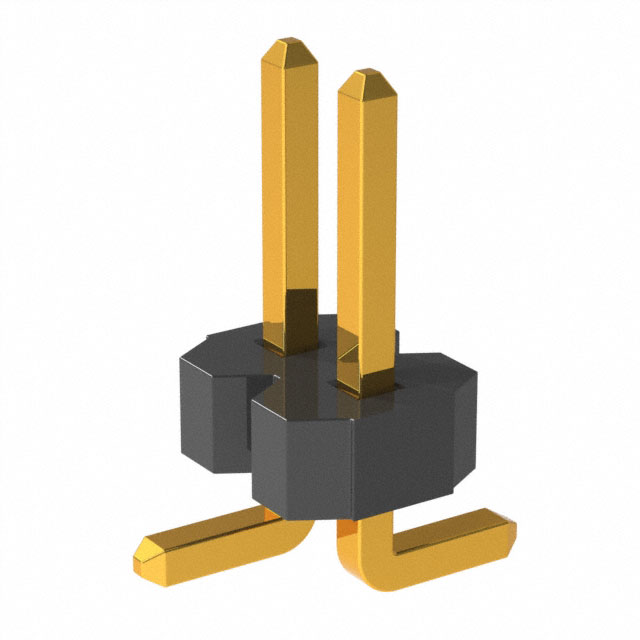

Sullins Connector Solutions GRPB021VWTD-RC	Flash	1 mm	0.039 in	Flash	Header	Brass	1	All	Surface Mount	2	1.27 mm	0.05 in	-40 C	105 ░C	Male Pin	3 mm	0.118 in	Unshrouded	Solder	Board to Board Cable	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)	Gold	Square	Gold

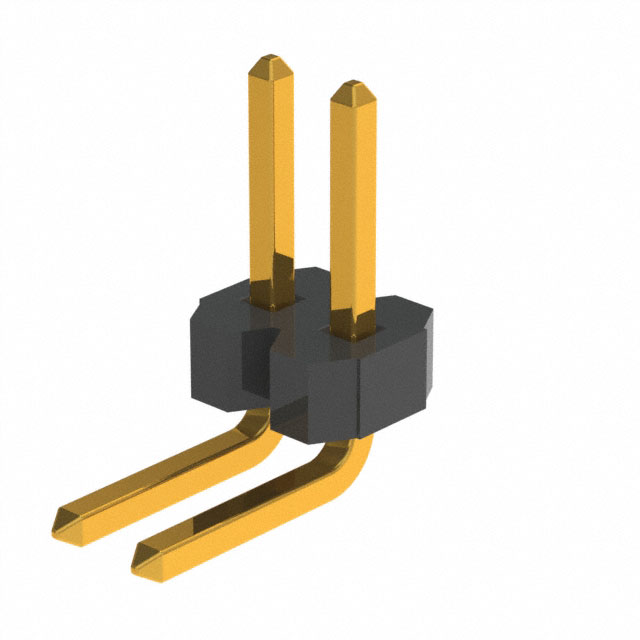

Sullins Connector Solutions GRPB021VWCN-RC	Flash			Flash	Header	Brass	1	All	Right Angle Through Hole	2	1.27 mm	0.05 in	-40 C	105 ░C	Male Pin	3 mm	0.118 in	Unshrouded	Solder	Board to Board Cable	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)	Gold	Square	Gold	2.5 mm	0.098 in	0.084 in	2.14 mm

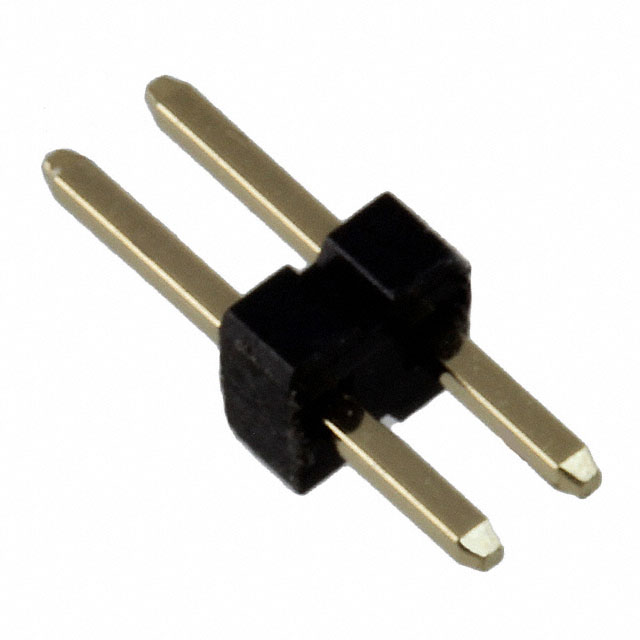

Sullins Connector Solutions GRPB021VWVN-RC	Flash	1 mm	0.039 in	Flash	Header	Brass	1	All	Through Hole	2	1.27 mm	0.05 in	-40 C	105 ░C	Male Pin	3 mm	0.118 in	Unshrouded	Solder	Board to Board Cable	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)	Gold	Square	Gold	2.3 mm				0.091 "	0.248 in	6.3 mm

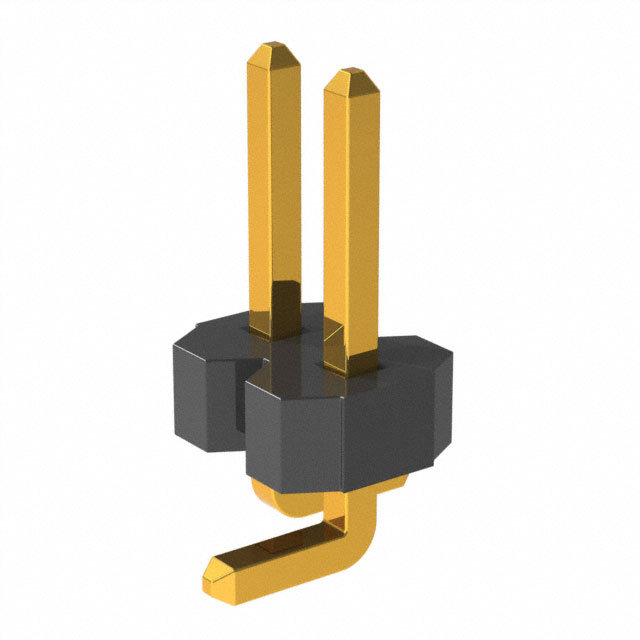

Sullins Connector Solutions GRPB021VWTC-RC	Flash	1 mm	0.039 in	Flash	Header	Brass	1	All	Surface Mount	2	1.27 mm	0.05 in	-40 C	105 ░C	Male Pin	3 mm	0.118 in	Unshrouded	Solder	Board to Board Cable	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)	Gold	Square	Gold
