M2022TN Series

Catalog

SWITCH ROCKER DPDT 6A 125V

Part	Mechanical Life	Electrical Life	Switch Function	Voltage Rating - DC	Actuator Marking	Circuit	Termination Style	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Current Rating (Amps)	Features	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap
NKK Switches M2022TNW01-GH	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Paddle	4 A 6 A	Epoxy Sealed Terminals	CSA UL	12.4 mm	0.5 in
NKK Switches M2022TNW01-DB	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Concave	4 A 6 A	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	White

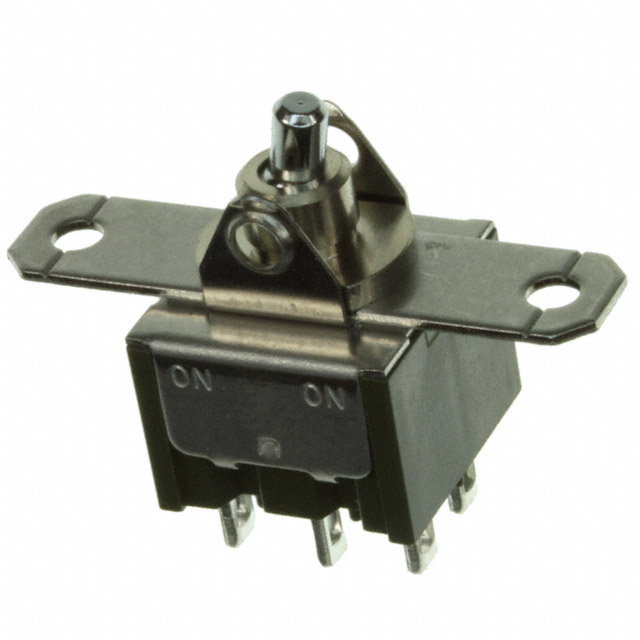

NKK Switches M2022TNW01	50000 Cycles	25000 Steps	On-On	30 V	Varies by Cap	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Actuator Arm Cap Required	4 A 6 A	Epoxy Sealed Terminals	CSA UL
NKK Switches M2022TNW03	50000 Cycles	25000 Steps	On-On	30 V	Varies by Cap	DPDT	PC Pin	125 V	85 °C	-30 ░C	Flange Panel Mount	Actuator Arm Cap Required	4 A 6 A	Epoxy Sealed Terminals	CSA UL

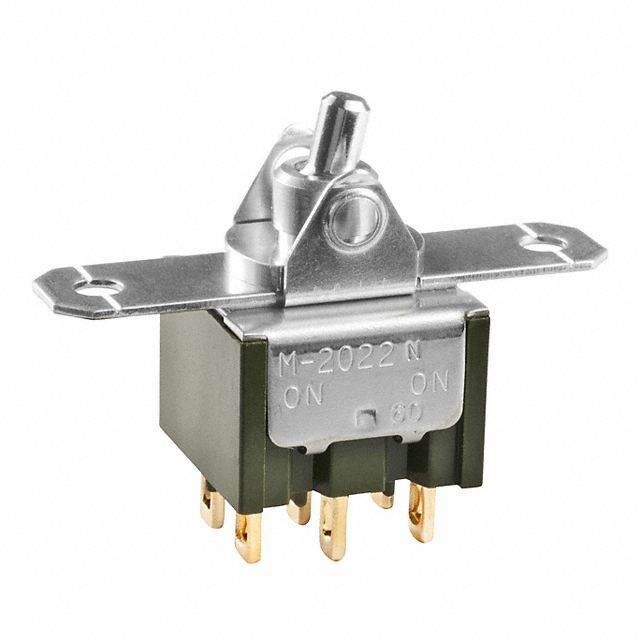

NKK Switches M2022TNG01-DA	50000 Cycles	50000 Cycles	On-On	28 V	No Marking	DPDT	Solder Lug	28 V	85 °C	-30 ░C	Flange Panel Mount	Concave	0.4 VA	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2022TNW01/U-DA	50000 Cycles	25000 Steps	On-On		No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Concave	6 A	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2022TNW01-DC	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Concave	4 A 6 A	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	Red

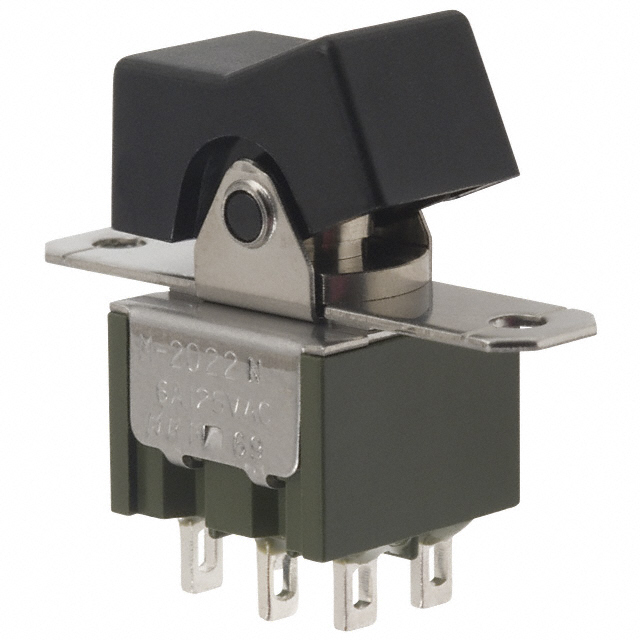

NKK Switches M2022TNW01-DA	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Concave	4 A 6 A	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	Black
NKK Switches M2022TNW01-EB	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	Solder Lug	125 V	85 °C	-30 ░C	Flange Panel Mount	Paddle	4 A 6 A	Epoxy Sealed Terminals	CSA UL	10.1 mm	17.8 mm	White
NKK Switches M2022TNW03-GA	50000 Cycles	25000 Steps	On-On	30 V	No Marking	DPDT	PC Pin	125 V	85 °C	-30 ░C	Flange Panel Mount	Paddle	4 A 6 A	Epoxy Sealed Terminals	CSA UL	12.4 mm	0.5 in	Black
