SX1509 Series
Manufacturer: Semtech Corporation
Beta
⌘K

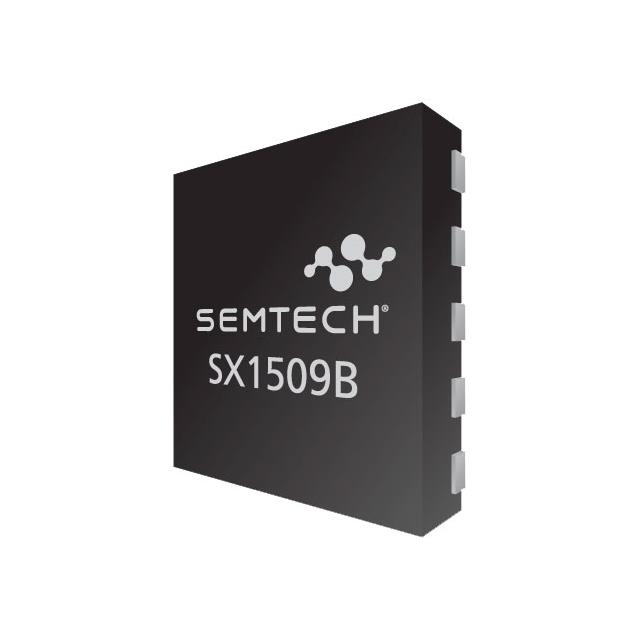

INTERFACE - I/O EXPANDERS 16 CHAN LOW VOLT I2C GPIO +PWM
| Part | Output Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Supply [Max] | Voltage - Supply [Min] | Interrupt Output | Clock Frequency | Supplier Device Package | Interface | Number of I/O | Package / Case | Current - Output Source/Sink | Supplied Contents | Contents | Primary Attributes | Function | Secondary Attributes | Utilized IC / Part | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | Open Drain Push-Pull | Surface Mount | 85 °C | -40 C | Keypad Controller LED Output POR | 3.6 V | 1.425 V | 400 kHz | 28-QFN-UT (4x4) | I2C | 16 | 28-UFQFN Exposed Pad | 8 mA 15 mA | ||||||||
 Semtech Corporation | Open Drain Push-Pull | Surface Mount | 85 °C | -40 C | Keypad Controller LED Output POR | 3.6 V | 1.425 V | 400 kHz | 28-QFN-UT (4x4) | I2C | 16 | 28-UFQFN Exposed Pad | 8 mA 15 mA | ||||||||

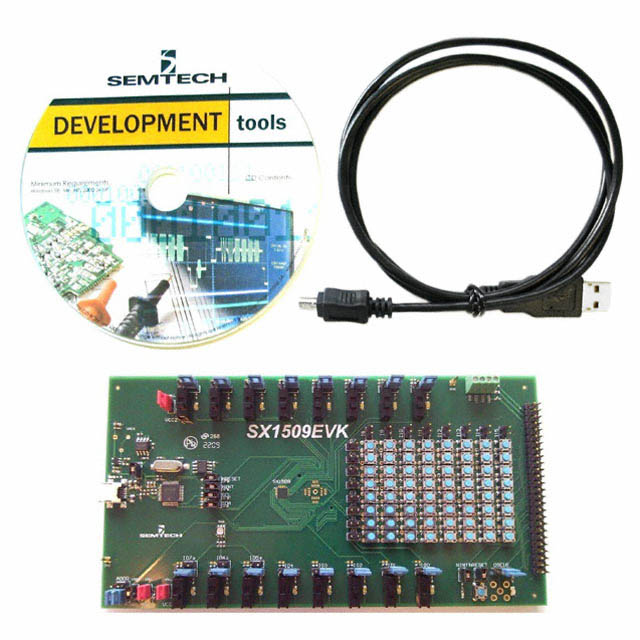

 Semtech Corporation | Board(s) Cable(s) | Board Cable | Level Shifter | GPIO Expander | On-Board LEDs | SX1509 | Interface |
