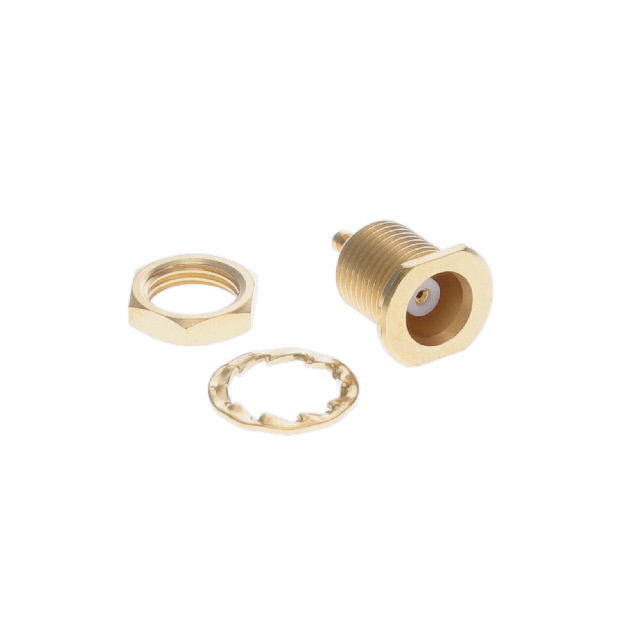

R11355300 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
MCX F BHD
| Part | Dielectric Material | Body Finish | Body Material | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Includes | Voltage Rating | Impedance | Number of Ports | Fastening Type | Frequency - Max [Max] | Mounting Type | Mounting Feature | Center Contact Material | Connector Style | Housing Color | Shield Termination | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Brass | 500 | 155 C | -55 C | Gold | 1 Connector 1 Lockwasher 1 Nut | 335 V | 50 Ohms | 1 | Snap-On | 6000 MHz | Panel Mount | Bulkhead - Rear Side Nut | Beryllium Copper | MCX | Gold | Solder | Jack Male Pin | Solder |
