Pushbutton Switches LED INDCAT24VDC14MM YLW,STAND.RFLR.
Pushbutton Switches LED INDCAT24VDC14MM YLW,STAND.RFLR.
| Part | Accessory Type | For Use With/Related Products | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Ingress Protection | Type | Actuator Marking | Current Rating (Amps) | Circuit | Switch Function | Actuator Type | Termination Style | Voltage Rating - AC | Contact Material | Depth Behind Flange | Angle of Throw | Contact Timing | Key Removable Positions | Number of Positions | Voltage Rating - DC | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | Diffuser | 02 Series | ||||||||||||||||||||||

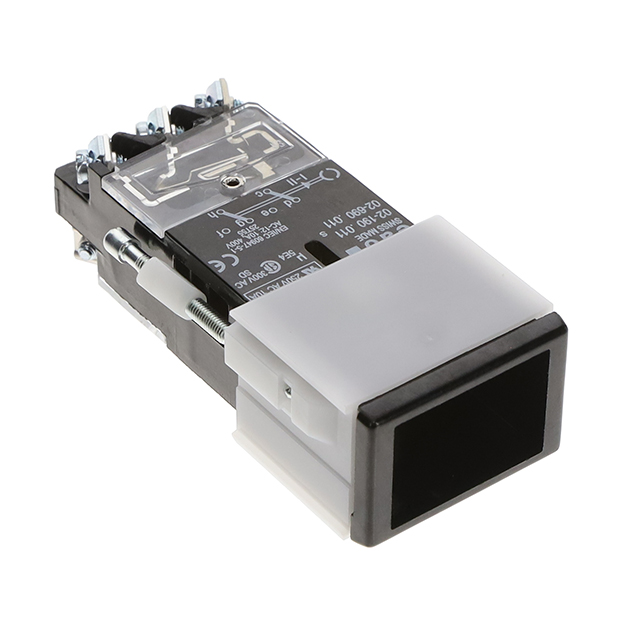

 EAO | Panel Mount Front | 55 °C | -25 °C | 29.2 mm | 21.2 mm | IP40 | Standard | No Marking | 10 A | DPDT | On-Mom | Button Rectangular | Screw Terminal | 400 V | ||||||||||
 EAO | Bezel | 02 Series | ||||||||||||||||||||||
 EAO | Panel Mount | 29.2 mm | 21.2 mm | 100 mA | DPDT | On-On | Flat Key | Screw Terminal | 42 V | Silver | 75 mm | 90 ° | Not Specified | Right | 2 | 42 V | Silver | |||||||

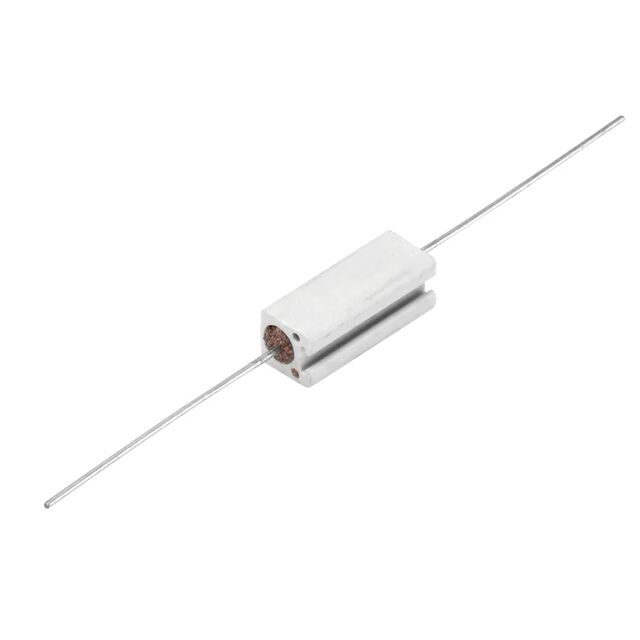

 EAO | Resistor | 02 Series |
