15GENG Series
Manufacturer: Delta Electronics
Beta
⌘K
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Approval Agency | Features | Mounting Type | Current Rating - Filter | Connector Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Accomodates a Fuse | Filter Type | Current Rating - Appliance Inlet | Termination | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Panel Thickness [Min] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

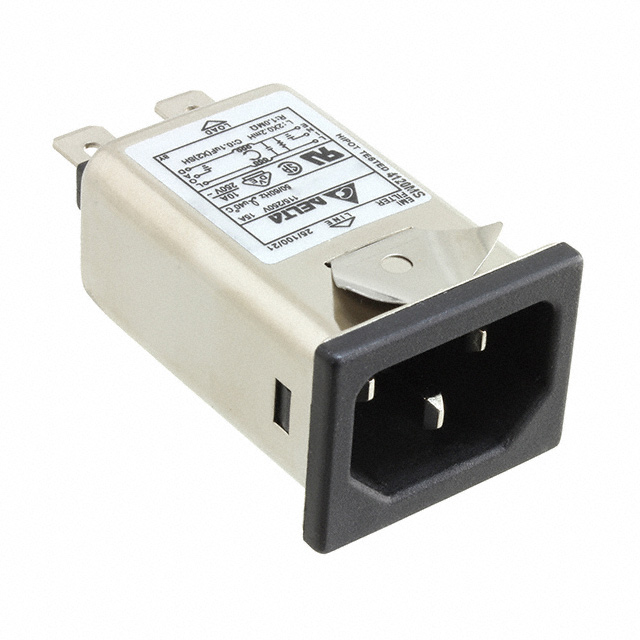

 Delta Electronics | CSA UL VDE | Mounting Clip | Panel Mount Snap-In | 15 A | IEC 320-C14 | 21.5 mm | 29.5 mm | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | 15 A | Quick Connect | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | Receptacle Male Blades | |

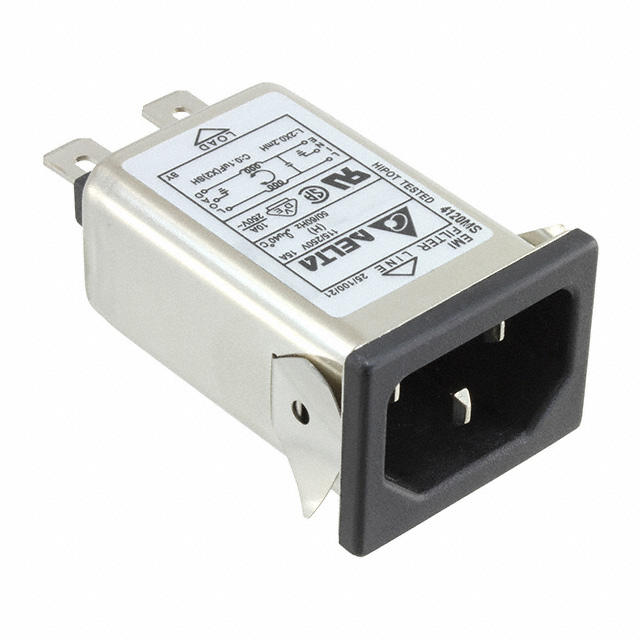

 Delta Electronics | CSA UL VDE | Bleed Resistor | Panel Mount Snap-In | 15 A | IEC 320-C14 | 21.9 mm | 28.45 mm | 115 VAC | 250 VAC | Filtered (EMI RFI) - Commercial Medical | 15 A | Quick Connect | 0.032 in | 1.6 mm | 0.063 " | 0.81 mm | Receptacle Male Blades |
