842-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Read Out	Contact Type	Number of Rows [custom]	Color	Gender	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Card Type	Pitch	Pitch	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Mounting Type

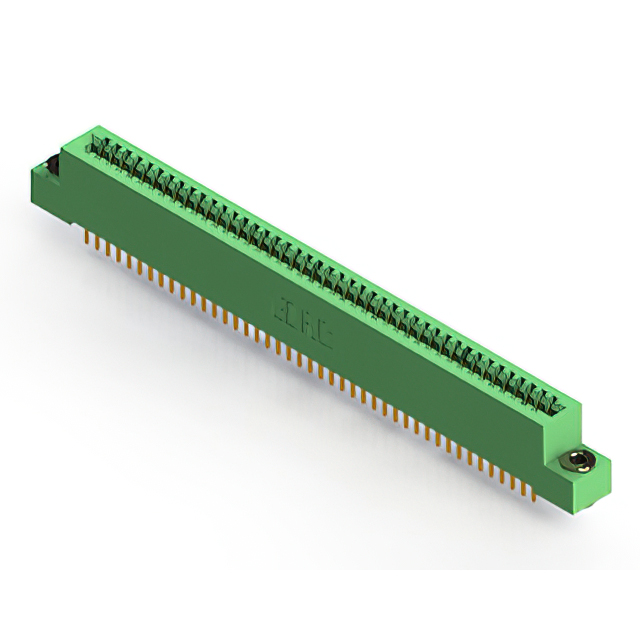

EDAC Inc. 842-086-521-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-523-202	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

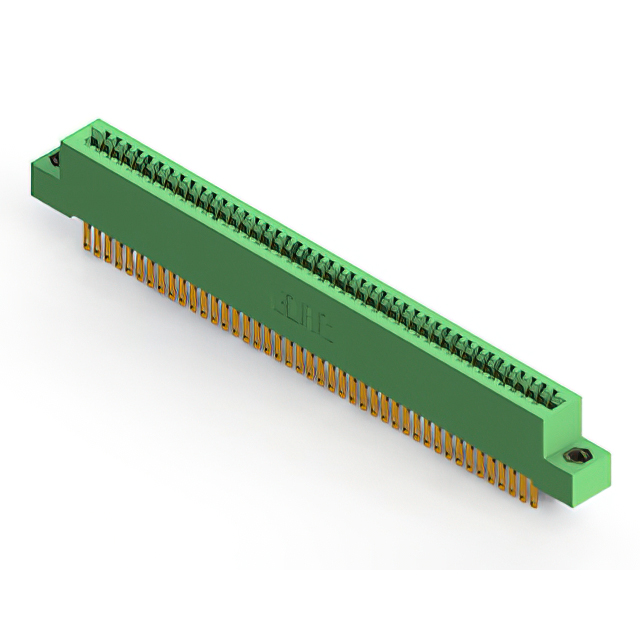

EDAC Inc. 842-086-500-208	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female		4-40 Flush Mount Threaded Insert Top Opening		Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole

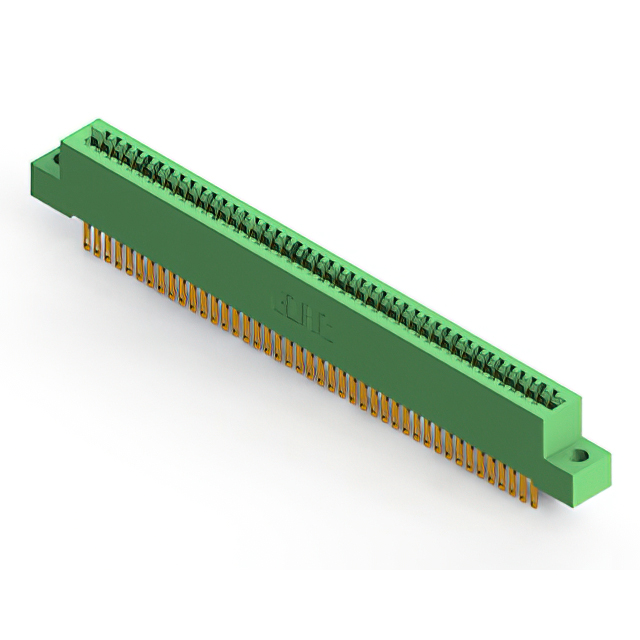

EDAC Inc. 842-086-500-204	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-541-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-542-212	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-542-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-558-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole

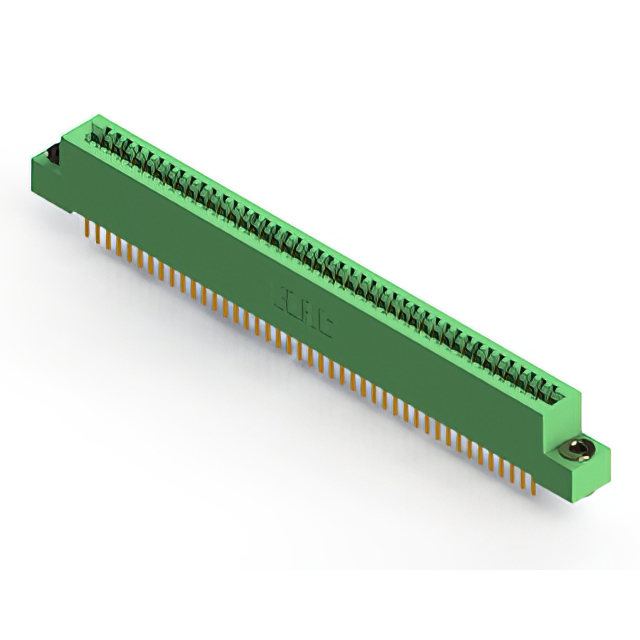

EDAC Inc. 842-086-520-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole
EDAC Inc. 842-086-559-203	2	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Green	Female	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Gold	43	125 °C	-40 C	0.25 Ám	10 Áin	Solder	Copper Alloy	Non Specified - Dual Edge	0.1 "	2.54 mm	86	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole
