MPG7 Series

Catalog

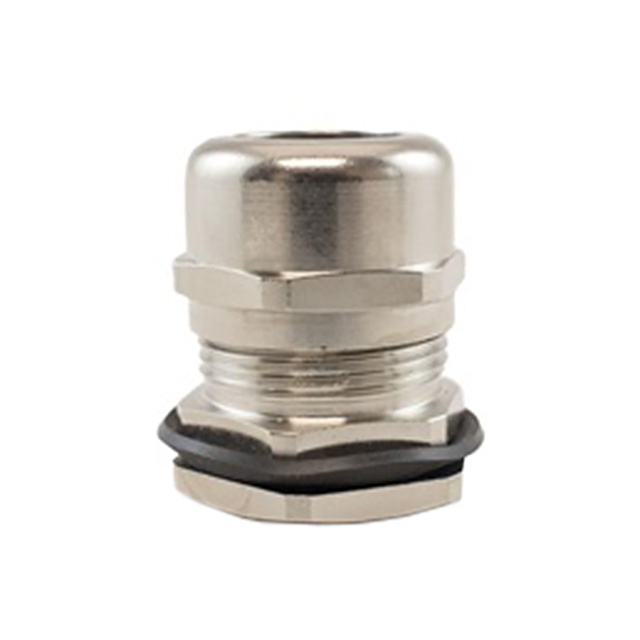

CABLE ACCESSORIES CABLE GLAND BRASS SILVER NICKEL

Part	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Material	Includes	Panel Hole Size	Panel Hole Size	Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Thread Length	Thread Length
ALPHA WIRE MPG7 NC080	6.5 mm	0.256 in	Cable Gland	3 mm	0.118 in	PG7	Brass Nickel Plated	O-Ring Seal	0.492 in	12.5 mm	Silver	-20 ░C	100 °C	IP66 IP68	6 mm	0.236 in
