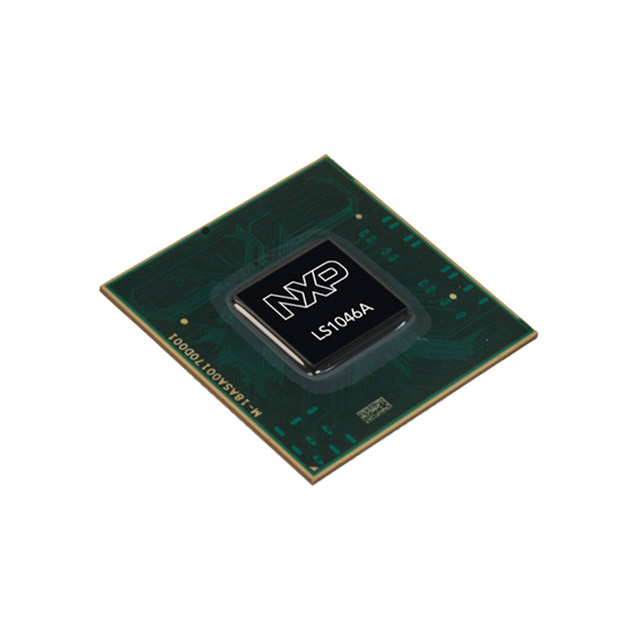

LS1046 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

LS1046A APPLICATION SOLUTION KIT

Part	Type	Contents	Board Type	Mounting Type	Platform	Core Processor	Utilized IC / Part	Ethernet	Security Features	SATA	Package / Case	RAM Controllers	Speed	Operating Temperature [Min]	Operating Temperature [Max]	Additional Interfaces	USB	Supplier Device Package	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]
Freescale Semiconductor - NXP LS1046A-SW-ASK	MPU	Board(s)	Evaluation Platform	Fixed	Layerscape LS1046A Freeway	ARM® Cortex®-A72	LS1046A
Freescale Semiconductor - NXP LS1046ASE8Q1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (8) 2.5GbE (3)	Secure Boot TrustZone	SATA 6Gbps (1)	780-BFBGA	DDR4	1.6 GHz	0 °C	105 °C	eMMC/SD/SDIO I2C I2S SPI UART	USB 3.0 + PHY (3)	780-FBGA (23x23)
Freescale Semiconductor - NXP LS1046AXN8P1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.4 GHz	-40 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046AXE8Q1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.6 GHz	-40 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046AXN8MQA				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.2 GHz	-40 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046ASE8MQA				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.2 GHz	0 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046ASN8Q1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.6 GHz	0 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046ASE8T1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.8 GHz	0 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046AXN8T1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.8 GHz	-40 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
Freescale Semiconductor - NXP LS1046ASE8P1A				Surface Mount		ARM® Cortex®-A72		10GbE (2) 1GbE (4) 2.5GbE (1)	Secure Boot TrustZone®	SATA 6Gbps (1)	780-FBGA FCBGA	DDR4	1.4 GHz	0 °C	105 ░C		USB 3.0 (3) + PHY	780-FCPBGA	64 Bit	4
