RS120 Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 120V 2A RADIAL

Part	Approval Agency	Type	Mounting Type	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Voltage - Max [Max]	Voltage - Max	Current - Max [Max]	Time to Trip	Resistance - Post Trip (R1) (Max) [Max]	Lead Spacing	Lead Spacing	Resistance - Initial (Ri) (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [custom]	Size / Dimension [custom]	Height - Seated (Max) [Max]	Current - Hold (Ih) (Max)	Size / Dimension

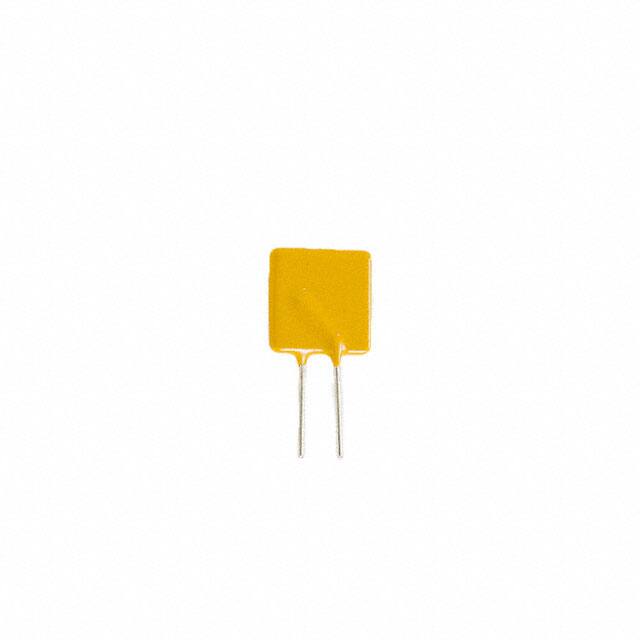

OptiFuse RS120-200	cUL TUV UL	Polymeric	Through Hole	4.2 A	2 A	120 V	135 V	20 A	36 s	210 mOhms	0.201 in	5.1 mm	80 mOhms	0.161 in	4.1 mm	23.5 mm	0.925 "	1.098 in	27.9 mm	Disc Radial	85 °C	-40 C
OptiFuse RS120-110	cUL TUV UL	Polymeric	Through Hole	2.2 A	1.1 A	120 V	135 V	8 A	8.2 s	380 mOhms	0.201 in	5.1 mm	150 mOhms							Disc Radial	85 °C	-40 C	13.3 mm	0.161 "	4.1 mm	0.524 "	18.3 mm	0.72 in

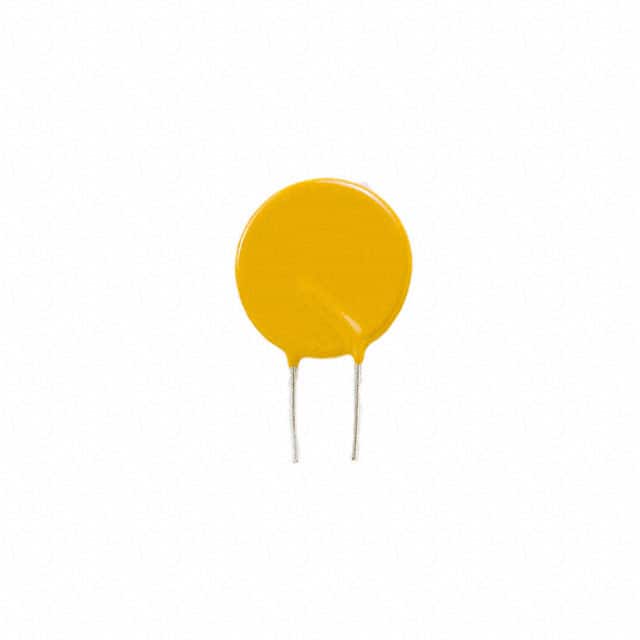

OptiFuse RS120-375	cUL TUV UL	Polymeric	Through Hole	7.5 A	3.75 A	120 V	135 V	20 A	24 s	80 mOhms			30 mOhms							Disc Radial	85 °C	-40 C	25.5 mm			1.004 in		1.339 in	34 mm	0.161 "	4.1 mm

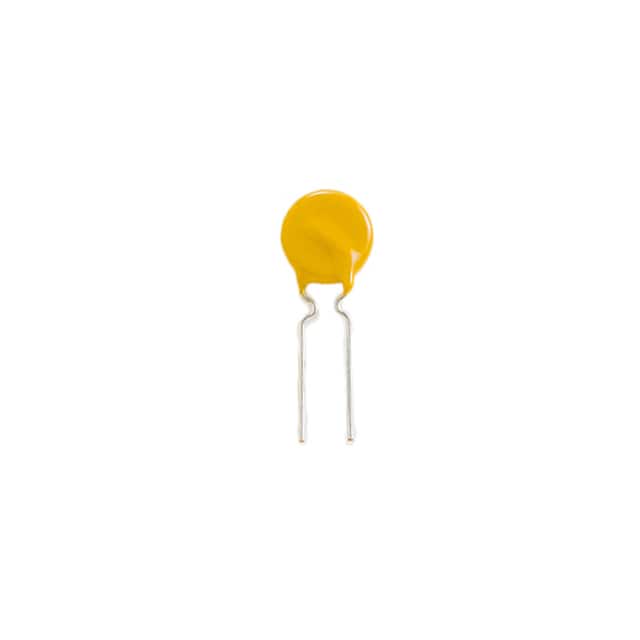

OptiFuse RS120-050	cUL TUV UL	Polymeric	Through Hole	1 A	500 mA	120 V	135 V	3 A	6 s	1.17 Ohms	0.201 in	5.1 mm								Disc Radial	85 °C	-40 C	9.2 mm	0.15 in	3.8 mm	0.362 in			0.587 in			14.9 mm

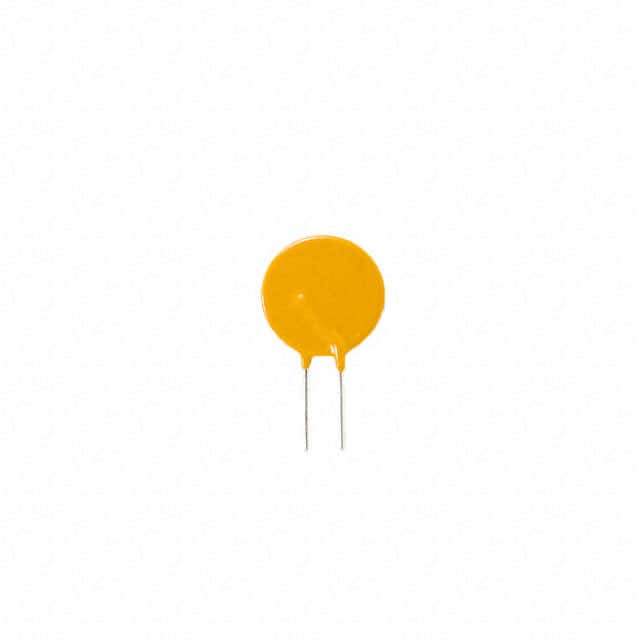

OptiFuse RS120-185	cUL TUV UL	Polymeric	Through Hole	3.7 A		120 V	135 V	12 A			0.201 in	5.1 mm	80 mOhms					0.98 in		Disc Radial	85 °C	-40 C				0.783 in			24.9 mm	0.161 "			1.85 A	4.1 mm 19.9 mm
