PP1-EB7 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACTION SPDT 16A 125V

Part	Features	Circuit	Current Rating (Amps)	Electrical Life	Termination Style	Operating Force	Switch Function	Operating Position	Operating Position	Mounting Type	Voltage Rating - AC	Operating Temperature [Max]	Actuator Type

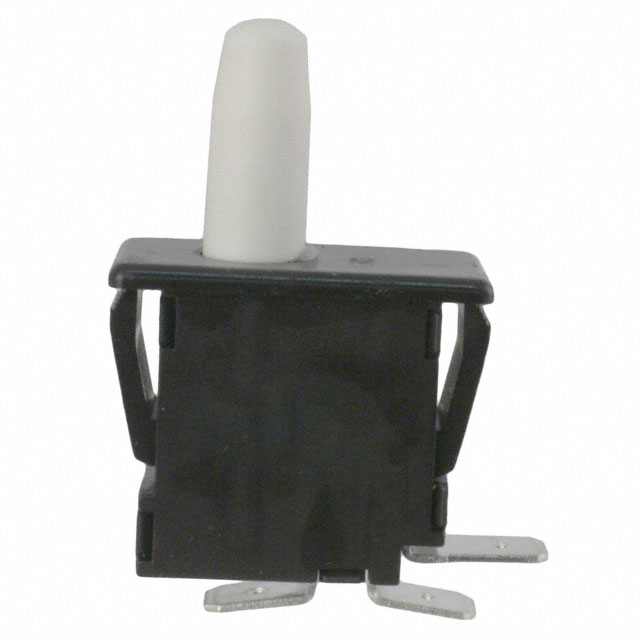

E-Switch PP1-EB7-1A2	White Actuator	SPDT	16 A	6000 Cycles	Quick Connect - 0.250" (6.3mm)	300 gf	On-Mom	0.738 in	18.7 mm	Panel Mount Snap-In	125 V	85 °C	Round (Pin Plunger)

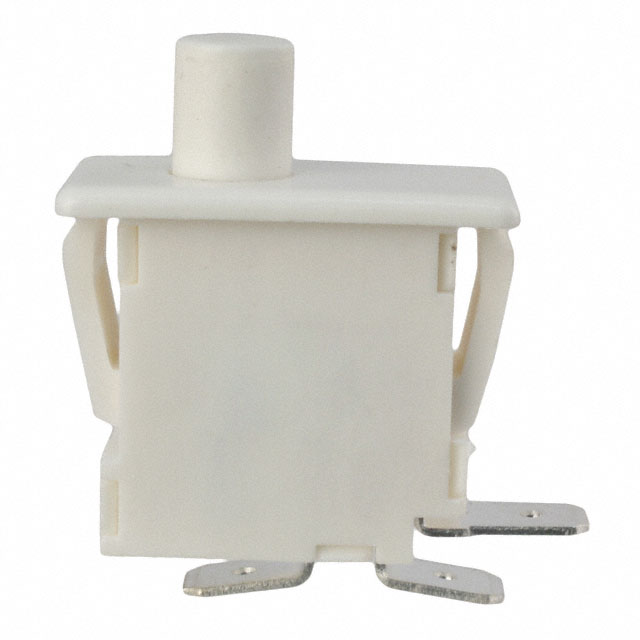

E-Switch PP1-EB7-2D2	White Actuator	SPDT	16 A	6000 Cycles	Quick Connect - 0.250" (6.3mm)	0.5 kgf	On-Mom	0.362 in	9.2 mm	Panel Mount Snap-In	125 V	85 °C	Round (Pin Plunger)
E-Switch PP1-EB7-2A2	White Actuator	SPDT	16 A	6000 Cycles	Quick Connect - 0.250" (6.3mm)	300 gf	On-Mom	0.738 in	18.7 mm	Panel Mount Snap-In	125 V	85 °C	Round (Pin Plunger)
