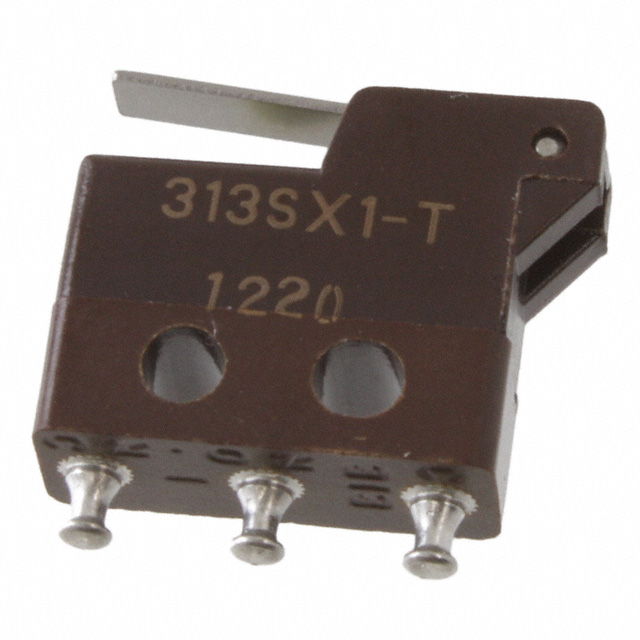

313SX1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MICROSWITCH, SUBMINIATURE, LEAF LEVER, SPDT, SOLDER, 1 A
| Part | Pretravel | Pretravel | Release Force | Actuator Type | Operating Position | Operating Position | Switch Function | Mechanical Life | Differential Travel | Differential Travel | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Overtravel [custom] | Overtravel [custom] | Termination Style | Current Rating (Amps) | Circuit | Operating Force | Voltage Rating - AC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.065 in | 1.65 mm | 9.177 gf | Lever Straight | 8.43 mm | 0.332 in | On-Mom | 10000000 Cycles | 0.5 mm | 0.02 in | -55 C | 125 °C | 30 V | 0.014 in | 0.35 mm | Solder Turret | 1 A | SPDT | 50 gf | 125 V | Chassis Mount |
