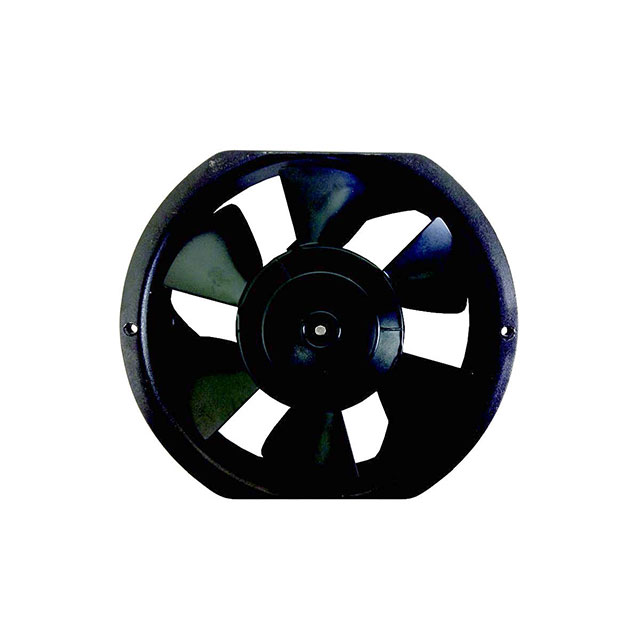

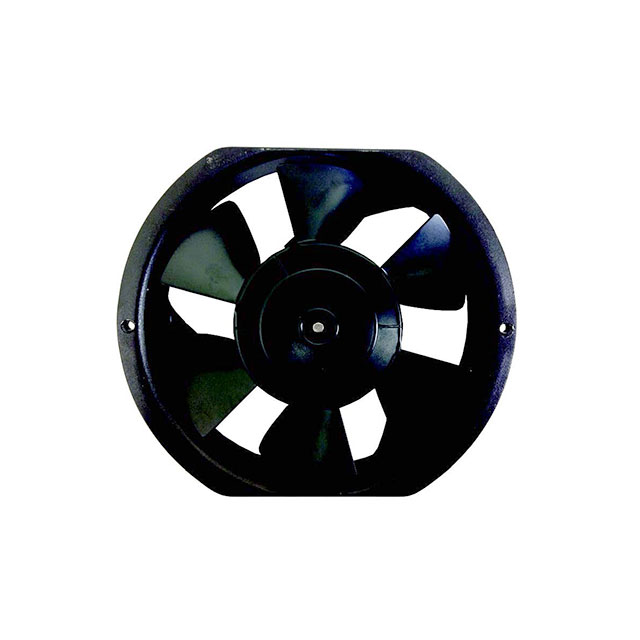

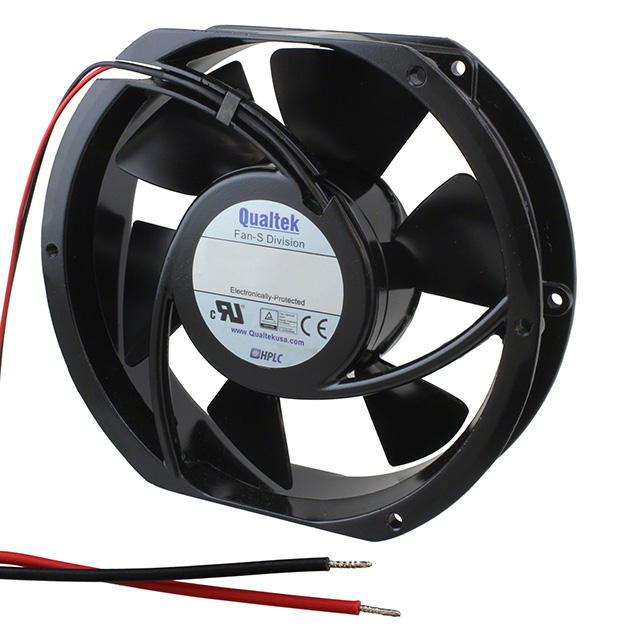

FDD1-17238 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 172X38.5MM 24VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Current Rating (Amps)	Width [y]	Power (Watts)	Noise	Fan Type	Features	Voltage - Rated	RPM	Approval Agency	Termination	Weight	Weight	Static Pressure	Static Pressure	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Air Flow	Air Flow	Bearing Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]
Qualtek FDD1-17238DBAW49	50000 Hrs	Aluminum	Steel	0.54 A	38.5 mm	13 W	52 dB	Tubeaxial	PWM Control	24 VDC	2800 RPM	CE cURus TUV	3 Wire Leads	861.8 g	1.9 lbs	0.571 in H2O	142.2 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	210 CFM	5.88 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238CBHW42	50000 Hrs	Aluminum	Steel	3.33 A	38.5 mm	39.96 W	64 dB(A)	Tubeaxial		12 VDC	4000 RPM	CE cURus TUV	2 Wire Leads	861.8 g	1.9 lbs	1.122 in H2O	279.5 Pa		-20 ░C	70 °C	310 CFM	8.68 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238DBHW42	50000 Hrs	Aluminum	Steel	1.38 A	38.5 mm	33.1 W	64 dB(A)	Tubeaxial		24 VDC	4000 RPM	CE cURus TUV	2 Wire Leads	861.8 g	1.9 lbs	1.122 in H2O	279.5 Pa		-20 ░C	70 °C	310 CFM	8.68 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238EBAW44	50000 Hrs	Aluminum	Steel	0.28 A	38.5 mm	13.4 W	52 dB	Tubeaxial	Speed Sensor (Tach)	48 VDC	2800 RPM	CE cURus TUV	3 Wire Leads	861.8 g	1.9 lbs	0.571 in H2O	142.2 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	210 CFM	5.88 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238CBHW44-L	100000 Hrs	Aluminum	Steel	3.33 A	38.5 mm	40 W	64 dB(A)	Tubeaxial	Speed Sensor (Tach)	12 VDC	4000 RPM	CE cURus TUV	2 Wire Leads	861.8 g	1.9 lbs	1.122 in H2O	279.5 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	310 CFM	8.68 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238DBLW42	50000 Hrs	Aluminum	Steel	780 mA	38.5 mm	18.7 W	56 dB	Tubeaxial		24 VDC	3200 RPM	CE cURus TUV	2 Wire Leads	861.8 g	1.9 lbs	0.732 in H2O	182.3 Pa		-20 ░C	70 °C	245 CFM	6.86 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238CBHW4B	50000 Hrs	Aluminum	Steel	3.33 A	38.5 mm	40 W	64 dB(A)	Tubeaxial	PWM Control Speed Sensor (Tach)	12 VDC	4000 RPM	CE cURus TUV	4 Wire Leads	861.8 g	1.9 lbs	1.122 in H2O	279.5 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	310 CFM	8.68 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238CBLW49	50000 Hrs	Aluminum	Steel	1.59 A	38.5 mm	19.1 W	56 dB	Tubeaxial	PWM Control	12 VDC	3200 RPM	CE cURus TUV	3 Wire Leads	861.8 g	1.9 lbs	0.732 in H2O	182.3 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	245 CFM	6.86 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238DBAW42	50000 Hrs	Aluminum	Steel	0.54 A	38.5 mm	13 W	52 dB	Tubeaxial		24 VDC	2800 RPM	CE cURus TUV	2 Wire Leads	861.8 g	1.9 lbs	0.571 in H2O	142.2 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	210 CFM	5.88 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
Qualtek FDD1-17238CBLW4B	50000 Hrs	Aluminum	Steel	1.59 A	38.5 mm	19.1 W	56 dB	Tubeaxial	PWM Control Speed Sensor (Tach)	12 VDC	3200 RPM	CE cURus TUV	4 Wire Leads	861.8 g	1.9 lbs	0.732 in H2O	182.3 Pa	IP54 - Dust Protected Water Resistant	-20 ░C	70 °C	245 CFM	6.86 m³/min	Ball	Rectangular/Rounded	151 mm	172 mm
