RAYCHEM RNF-100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RNF-100-3/4-3-SP

...

Part	Material	Color	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Type	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Recovered
TE Connectivity AMP Connectors RNF-100-3/4-3-SP
TE Connectivity AMP Connectors NB21302001

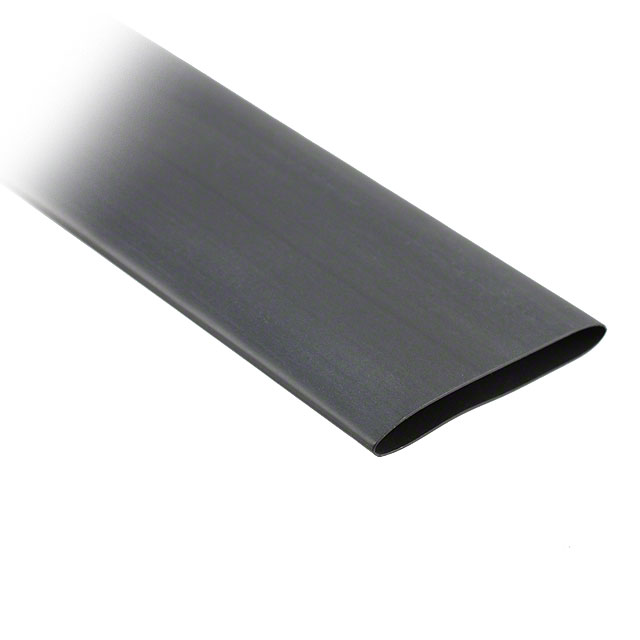

TE Connectivity AMP Connectors RNF-100-1-1/2-BK-STK	Polyolefin (PO) Irradiated Polyolefin Irradiated	Black	144 Months	-55 C	135 °C	95 °C	38.1 mm	1.5 in	4 ft	1.22 m	Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.75 "	19.05 mm	1.02 mm	0.04 in	1	2
TE Connectivity AMP Connectors RNF-100-3/32-OR-STK	Polyolefin		144 Months	-55 C	135 °C	95 °C	2.36 mm	0.093 "	4 ft	1.22 m	Tubing Flexible	Flame Retardant Fluid Resistant	0.047 in	1.19 mm	0.51 mm	0.02 in	1	2

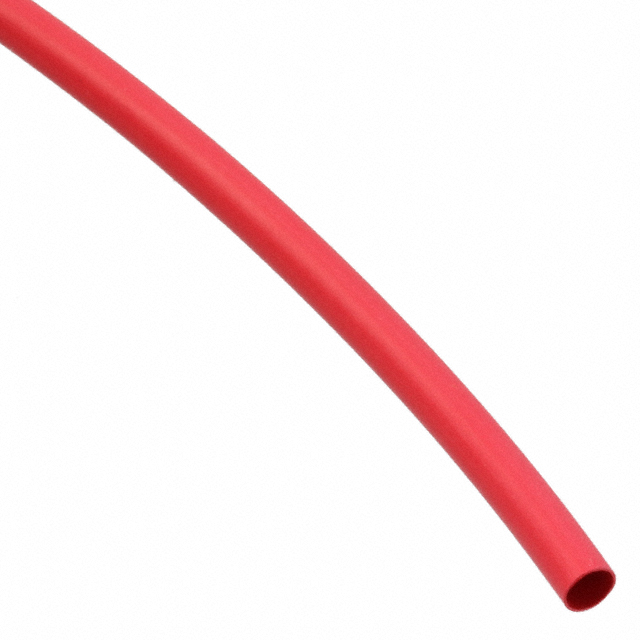

TE Connectivity AMP Connectors RNF-100-1/8-2-SP	Polyolefin (PO) Irradiated	Red	144 Months	-55 C	135 °C	95 °C	3.18 mm	0.125 in	984.3 ft	300 m	Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.062 in	1.57 mm	0.51 mm	0.02 in	1	2	1 m	3.28 ft
TE Connectivity AMP Connectors RNF-100-3/4-GN-STK	Polyolefin (PO) Irradiated	Green	144 Months	-55 C	135 °C	95 °C			4 ft	1.22 m	Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.375 in	9.53 mm	0.76 mm	0.03 in	1	2
TE Connectivity AMP Connectors RNF-100-1-0-STK	Polyolefin (PO) Irradiated	Black		-55 C	135 °C	95 °C	25.4 mm	1 in	4 ft	1.22 m	Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	0.5 "	12.7 mm	0.89 mm	0.035 in	1	2			0 °C	35 °C	32 °F	95 °F
TE Connectivity AMP Connectors NB21454001
TE Connectivity AMP Connectors RNF-100-2-4-SP	Polyolefin (PO) Irradiated	Yellow	144 Months	-55 C	135 °C	95 °C	50.8 mm	2 in			Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	1 in		1.14 mm	0.045 in	1	2	1 m	3.28 ft					25.4 mm
TE Connectivity AMP Connectors RNF-100-2-0-SP	Polyolefin (PO) Irradiated	Black	144 Months	-55 C	135 °C	95 °C	50.8 mm	2 in			Tubing Flexible	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	1 in		1.14 mm	0.045 in	1	2	1 m	3.28 ft					25.4 mm
