BD9E300EFJ-LB(E2) Series

7.0V to 36V Input, 2.5A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

7.0V to 36V Input, 2.5A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Voltage - Input (Min) [Min]	Output Type	Topology	Mounting Type	Number of Outputs	Current - Output	Frequency - Switching	Voltage - Input (Max) [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Function	Voltage - Output (Max)	Voltage - Output (Min/Fixed)	Output Configuration	Package / Case	Package / Case	Package / Case	Synchronous Rectifier	Contents	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Voltage - Output	Outputs and Type	Utilized IC / Part
Rohm Semiconductor BD9E300EFJ-LBE2	7 V	Adjustable	Buck	Surface Mount	1	2.5 A	1 MHz	36 V	8-HTSOP-J	150 °C	-40 °C	Step-Down	25.2 V	1 V	Positive	0.154 in	8-SOIC	3.9 mm

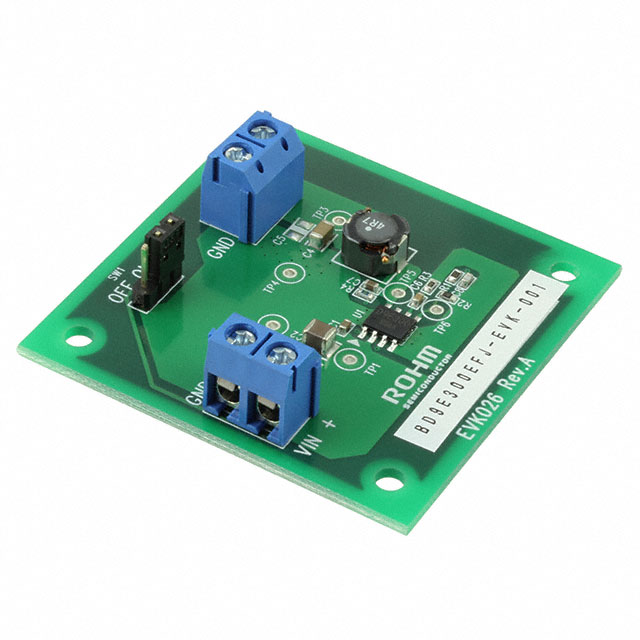

Rohm Semiconductor BD9E300EFJ-EVK-001						2.5 A	1 MHz													Board(s)	DC/DC Step Down	7.2 V	33 V	Buck	5 V	1 Non-Isolated Output	BD9E300

Catalog

7.0V to 36V Input, 2.5A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Key Features

• Long Time Support Product for Industrial Applications., Synchronous single DC/DC converter., Over-Current Protection., Short Circuit Protection., Thermal Shutdown Protection., Under voltage Lockout Protection., Soft Start., HTSOP-J8 package (Exposed Pad).

Description

This product guarantees long life cycle in Industrial market. BD9E300EFJ-LB is a synchronous buck switching regulator with built-in power MOSFETs. It is capable of an output current of up to 2.5A. It has a high oscillation frequency of 1MHz while using small inductance value. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.BD9E300EFJ-LB is also available as a small reel product with 250 packages.→BD9E300EFJ-LBH2We recommendBD9E300UEFJ-LBE2for your new development. It uses different production lines for the purpose of improving production efficiency. Electric characteristics noted in Datasheet does not differ between Production Line.
