742C163 Series

Catalog

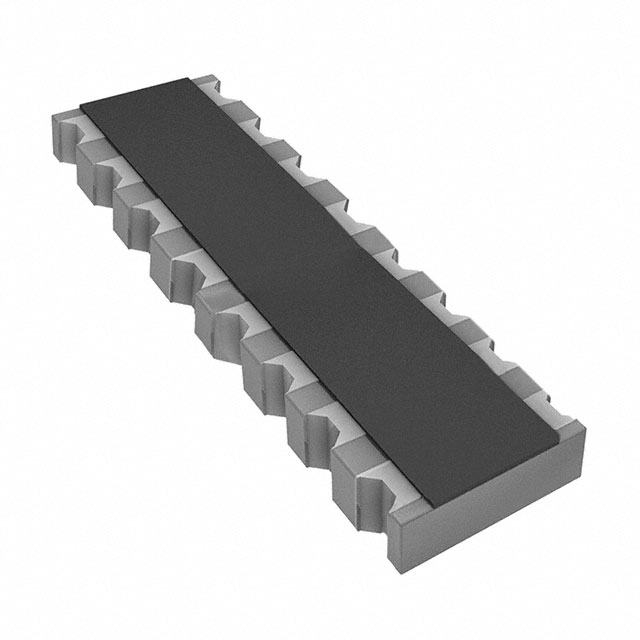

RES ARRAY 8 RES 33K OHM 2506

Part	Temperature Coefficient	Mounting Type	Power Per Element	Circuit Type	Number of Resistors	Resistance (Ohms)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Pins	Applications	Resistance (Ohms)	Resistance (Ohms) [custom]
CTS Resistor Products 742C163333JTR	200 ppm/°C	Surface Mount	63 mW	Isolated	8	33 kOhms	0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR
CTS Resistor Products 742C163682JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8		0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR	6.8k
CTS Resistor Products 742C163104JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8		0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR	100k
CTS Resistor Products 742C1631000FP	200 ppm/°C	Surface Mount	63 mW	Isolated	8		0.7 mm	0.028 "	2506 Concave Long Side Terminals	1 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR		100 Ohms
CTS Resistor Products 742C163681JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8		0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR		680 Ohms
CTS Resistor Products 742C163220JTR	200 ppm/°C	Surface Mount	63 mW	Isolated	8	22 Ohms	0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR
CTS Resistor Products 742C163750JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8	75 Ohms	0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR
CTS Resistor Products 742C163222JTR	200 ppm/°C	Surface Mount	63 mW	Isolated	8	2.2 kOhms	0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR
CTS Resistor Products 742C163111JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8	110 Ohms	0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR
CTS Resistor Products 742C163101JP	200 ppm/°C	Surface Mount	63 mW	Isolated	8		0.7 mm	0.028 "	2506 Concave Long Side Terminals	5 %	0.252 in	1.6 mm	0.063 "	6.4 mm	-55 C	125 °C	16	DDR SDRAM DRAM MDDR		100 Ohms
