833-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

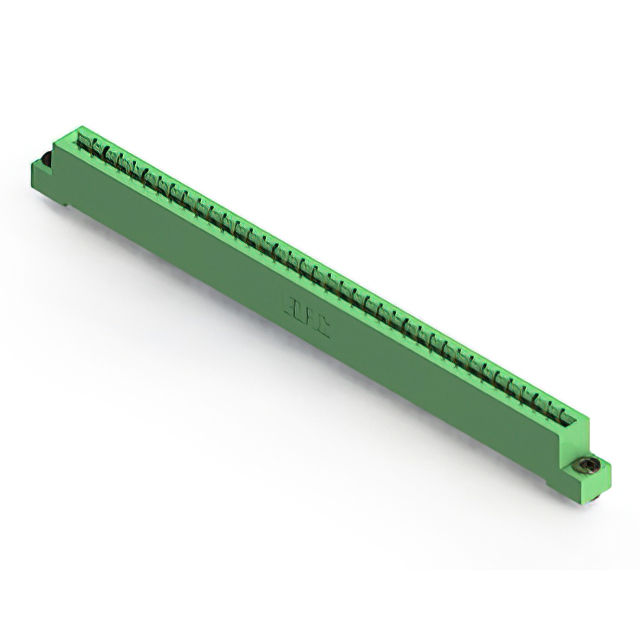

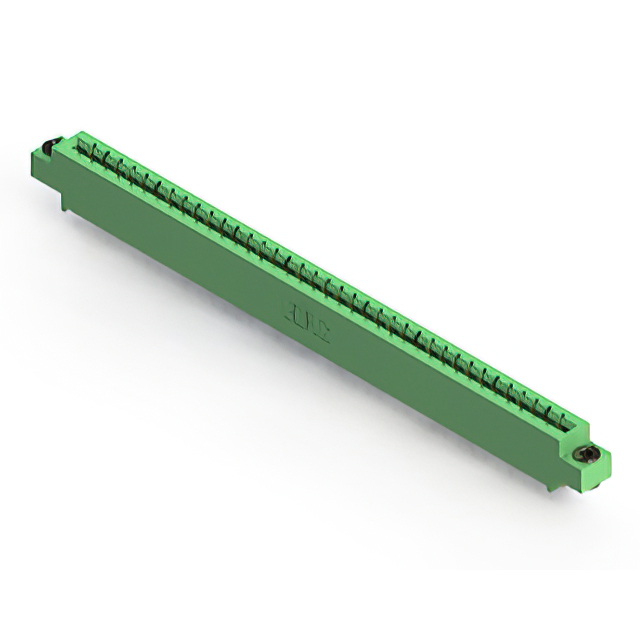

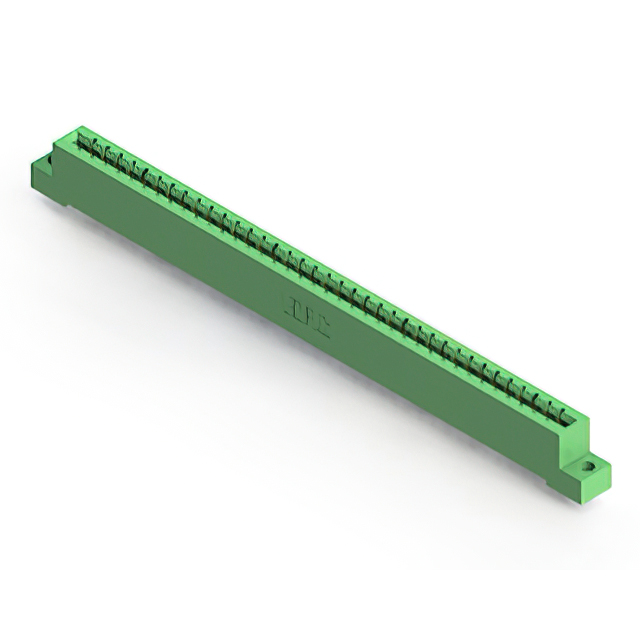

CONN EDGE SGL FMALE 37POS 0.156
| Part | Material - Insulation | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Rows | Number of Positions/Bay/Row | Termination | Card Type | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Positions | Pitch | Pitch | Gender | Contact Material | Contact Type | Contact Finish | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | Side Mount Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.128 " | 3.25 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Solder | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Right Angle Through Hole | 0.156 " | 3.96 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Solder | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Wire Wrap | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.128 " | 3.25 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Solder Eyelet(s) | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | 0.25 Ám | 10 Áin | Single | 1 | 37 | Solder | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 37 | 3.96 mm | 0.156 in | Female | Copper Alloy | Cantilever | Gold | Right Angle Through Hole | 0.128 " | 3.25 mm |
