RS60SB Series
Manufacturer: OptiFuse
Beta
⌘K

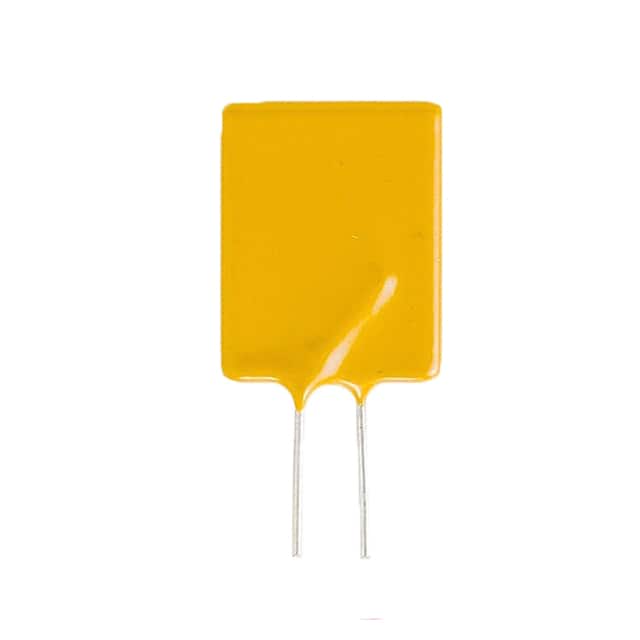

PTC RESET FUSE 60V 2.5A RADIAL
| Part | Type | Lead Spacing | Lead Spacing | Resistance - Initial (Ri) (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Trip (It) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Max [Max] | Voltage - Max [Max] | Mounting Type | Time to Trip | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Hold (Ih) (Max) | Resistance - Post Trip (R1) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | Polymeric | 0.201 in | 5.1 mm | 40 mOhms | 85 °C | -40 C | 5 A | 20.6 mm | 0.811 in | 40 A | 60 V | Through Hole | 15.6 s | Disc Radial | 0.551 in | 0.118 in | 3 mm | 14 mm | 2.5 A | 140 mOhms |
