TRPGR30ENATGA Series

TRPGR30ATGC 12-mm Low-Frequency Glass-Encapsulated Transponder, Read Only

Catalog

TRPGR30ATGC 12-mm Low-Frequency Glass-Encapsulated Transponder, Read Only

Part	Memory Type	Size / Dimension [x]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Style	Technology	Standards

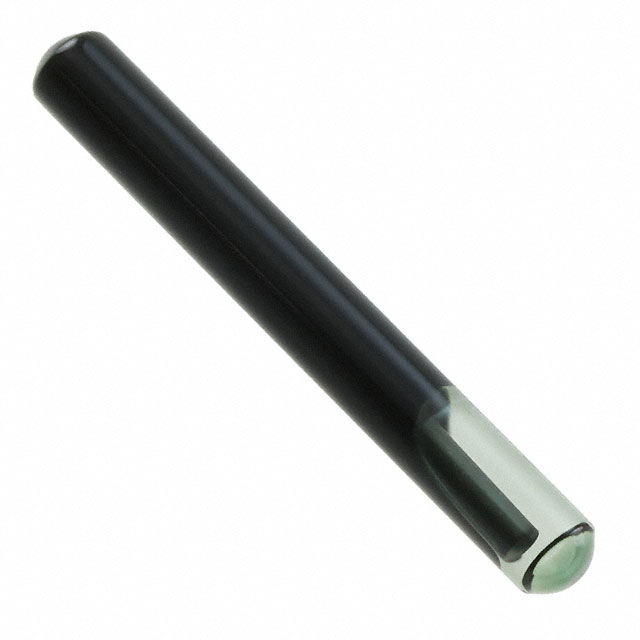

Texas Instruments TRPGR30ENATGB	Read Only	31.2 mm	3.85 mm	70 °C	-25 °C	134.2 kHz	Glass Encapsulated	Passive	ISO 11784 ISO 11785

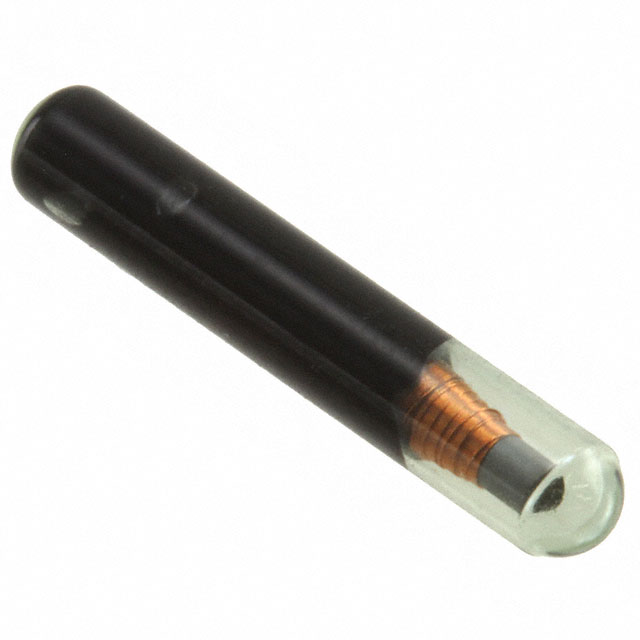

Texas Instruments TRPGR30ATGC	Read Only	12 mm	2.12 mm	85 °C	-25 °C	134.2 kHz	Glass Encapsulated	Passive	ISO 11784 ISO 11785

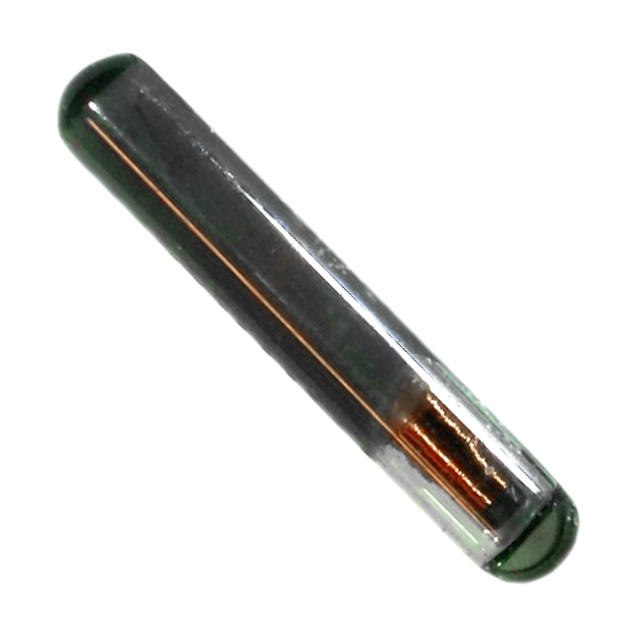

Texas Instruments TRPGR30TGC	Read Only	12 mm	2.12 mm	85 °C	-25 °C	134.2 kHz	Glass Encapsulated	Passive	ISO 11784 ISO 11785

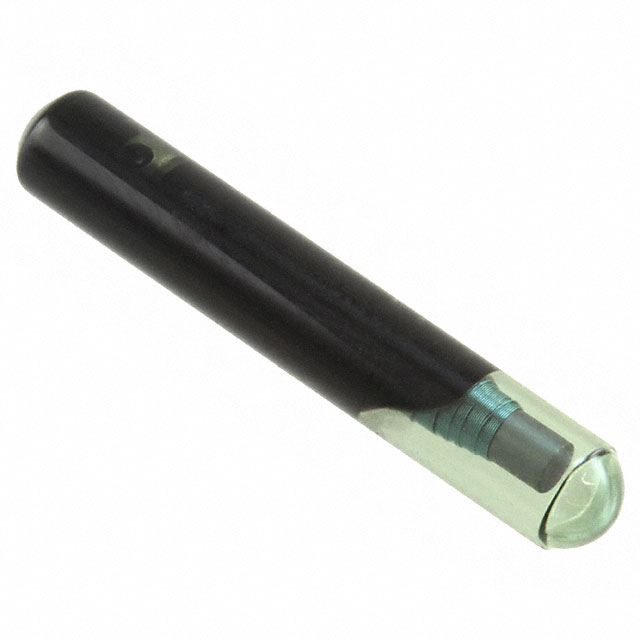

Texas Instruments TRPGR30ENATGA	Read Only	23.1 mm	3.85 mm	70 °C	-25 °C	134.2 kHz	Glass Encapsulated	Passive	ISO 11784 ISO 11785
Texas Instruments TRPGR30ATGA	Read Only	23.1 mm	3.85 mm	70 °C	-25 °C	134.2 kHz	Glass Encapsulated	Passive	ISO 11784 ISO 11785

Catalog

TRPGR30ATGC 12-mm Low-Frequency Glass-Encapsulated Transponder, Read Only

Key Features

• Best-in-Class Performance Through Patented HDX+ (Half-Duplex) TechnologyPatented Transponder Tuning Provides Stable and High Read Performance80-Bit Read-Only TypeEN 14803 NumberingInsensitive to Almost All Nonmetallic MaterialsBest-in-Class Performance Through Patented HDX+ (Half-Duplex) TechnologyPatented Transponder Tuning Provides Stable and High Read Performance80-Bit Read-Only TypeEN 14803 NumberingInsensitive to Almost All Nonmetallic Materials

Description

Texas Instruments' 12-mm low-frequency (LF) glass transponders provide superior performance and operate at a resonance frequency of 134.2 kHz. The products are compliant to ISO/IEC 11784 and ISO/IEC 11785 global open standards. Texas Instruments LF glass transponders are manufactured with TI's patented tuning process to provide consistent read performance. Before delivery, the transponders undergo complete functional and parametric testing to provide the high quality customers have come to expect from TI. Texas Instruments' 12-mm low-frequency (LF) glass transponders provide superior performance and operate at a resonance frequency of 134.2 kHz. The products are compliant to ISO/IEC 11784 and ISO/IEC 11785 global open standards. Texas Instruments LF glass transponders are manufactured with TI's patented tuning process to provide consistent read performance. Before delivery, the transponders undergo complete functional and parametric testing to provide the high quality customers have come to expect from TI.
