811-SS Series

Manufacturer: Preci-Dip

Catalog

Catalog

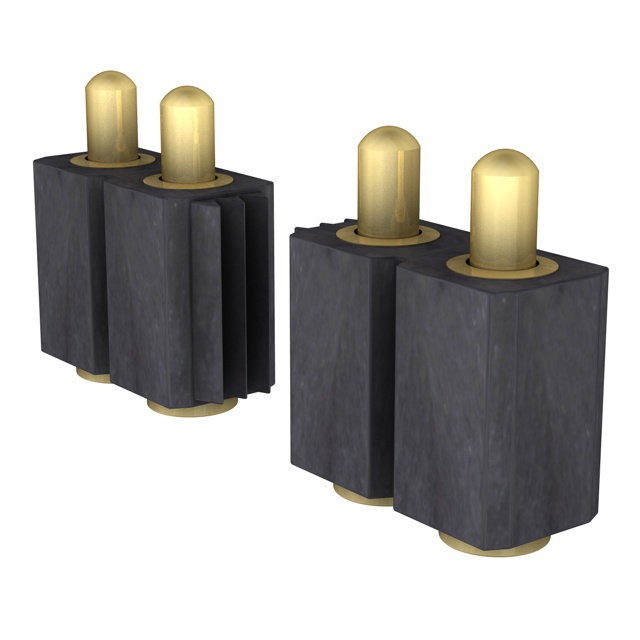

CONN SPRING PISTON 9POS SMD

...

Part	Number of Rows	Mounting Type	Material	Number of Contacts	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish
Preci-Dip 811-SS-009-30-026101	1	Surface Mount	Brass	9	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-008-30-024101	1	Surface Mount	Brass	8	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-010-30-024101	1	Surface Mount	Brass	10	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold

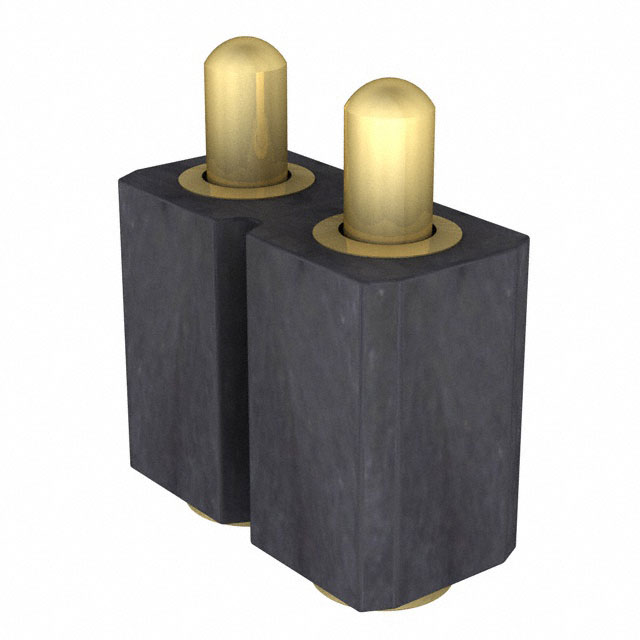

Preci-Dip 811-SS-002-30-002191	1	Surface Mount	Brass	2	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-008-30-003191	1	Surface Mount	Brass	8	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold

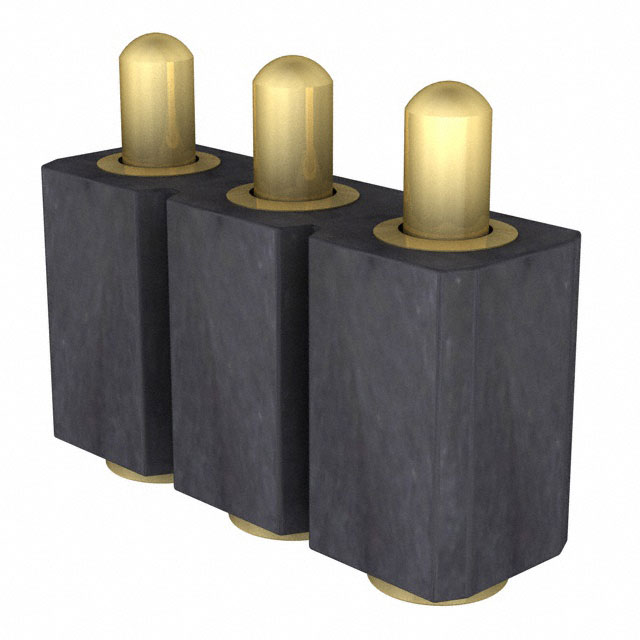

Preci-Dip 811-SS-003-30-003191	1	Surface Mount	Brass	3	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-005-30-001191	1	Surface Mount	Brass	5	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-007-30-001101	1	Surface Mount	Brass	7	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
Preci-Dip 811-SS-005-30-022101	1	Surface Mount	Brass	5	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold

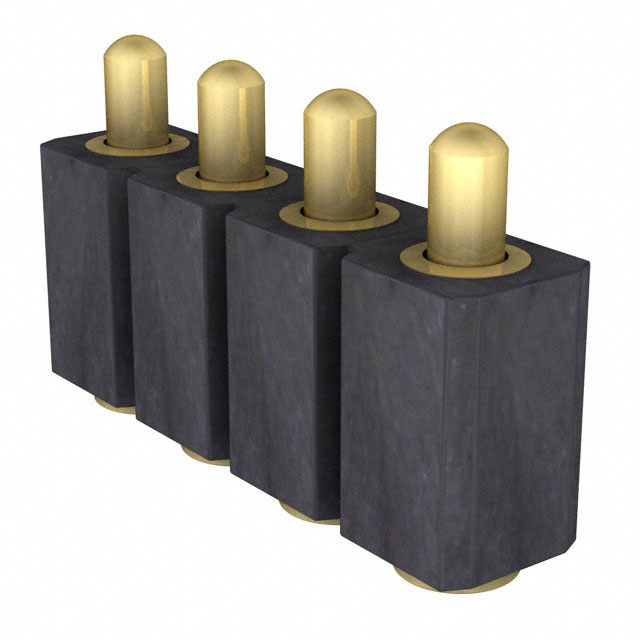

Preci-Dip 811-SS-004-30-022101	1	Surface Mount	Brass	4	0.1 "	2.54 mm	19.7 µin	0.5 µm	Piston	Gold
