152R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Weight	Weight	Height [z]	Height [z]	Thickness	Thickness	Ratings	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Material	Container Type	Area (L x W)	Area (L x W)	Material Flammability Rating	Features	Design	Area (L x W) [custom]	Area (L x W) [custom]

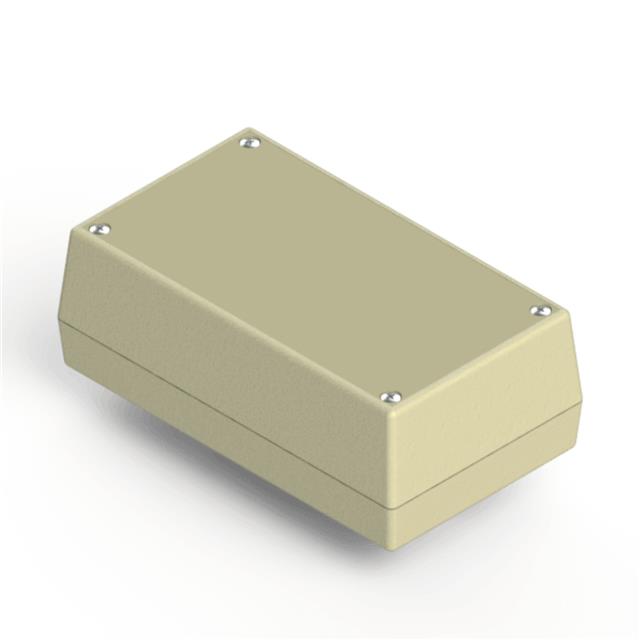

Serpac 152RI,AL	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	ABS Plastic	Box	18.3 in²	118 cm²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides

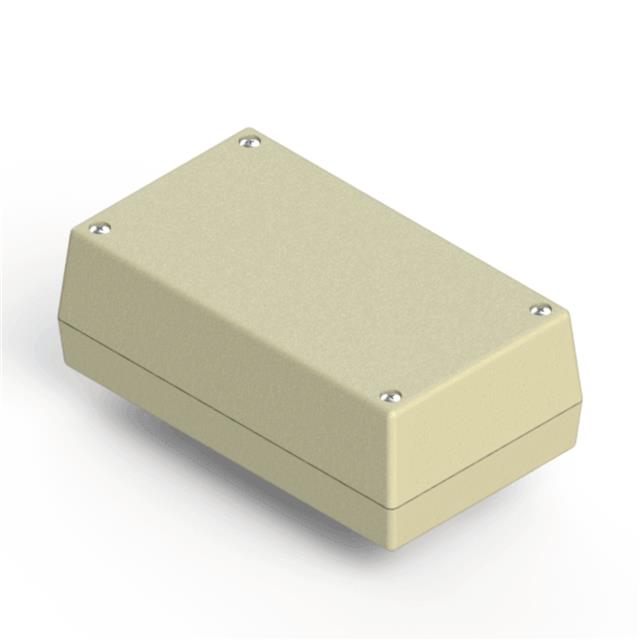

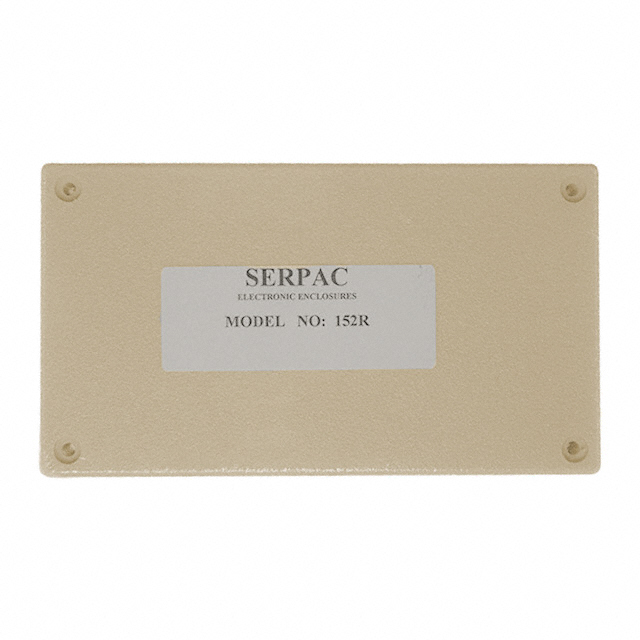

Serpac 152R,AL	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Almond	ABS Plastic	Box	18.3 in²	118 cm²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides

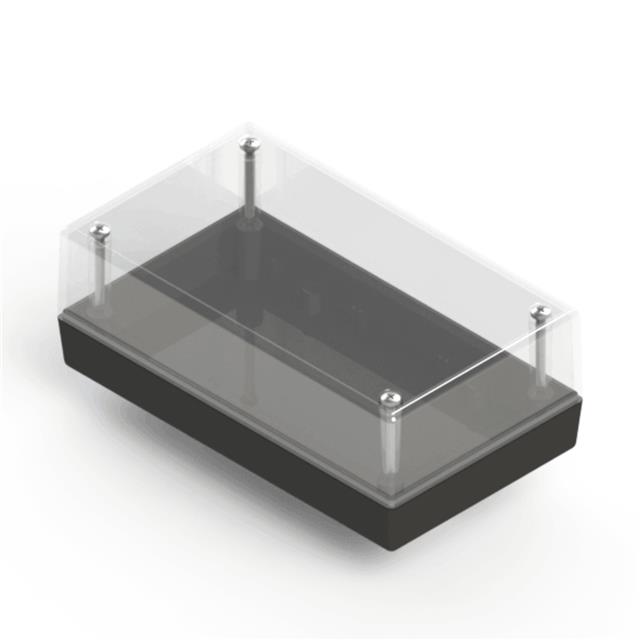

Serpac 152RC,BK	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Black Clear Cover/Door	Plastic Polycarbonate	Box	18.3 in²	118 cm²		Front Access PCB Supports	Hand Held Split Sides

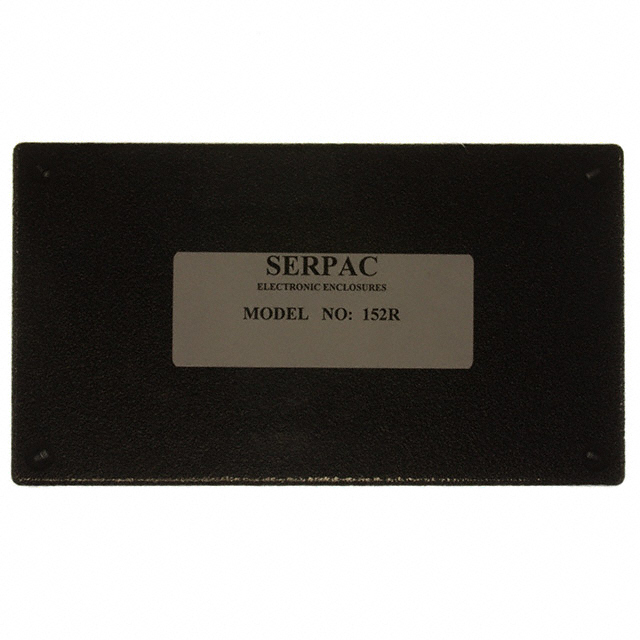

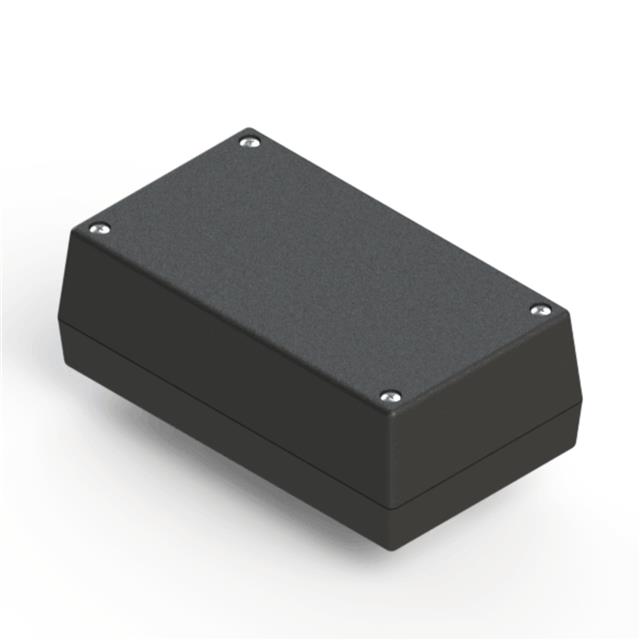

Serpac 152R,BK	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Black	ABS Plastic	Box	18.3 in²	118 cm²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides	118 cm˛	18.3 in˛

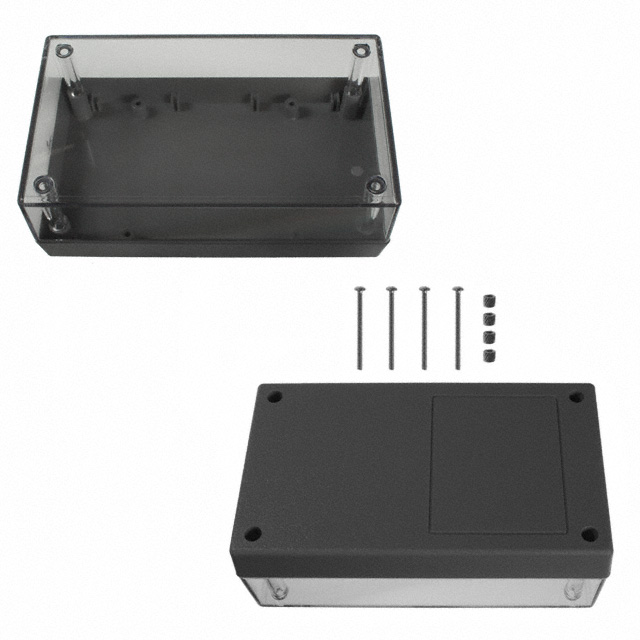

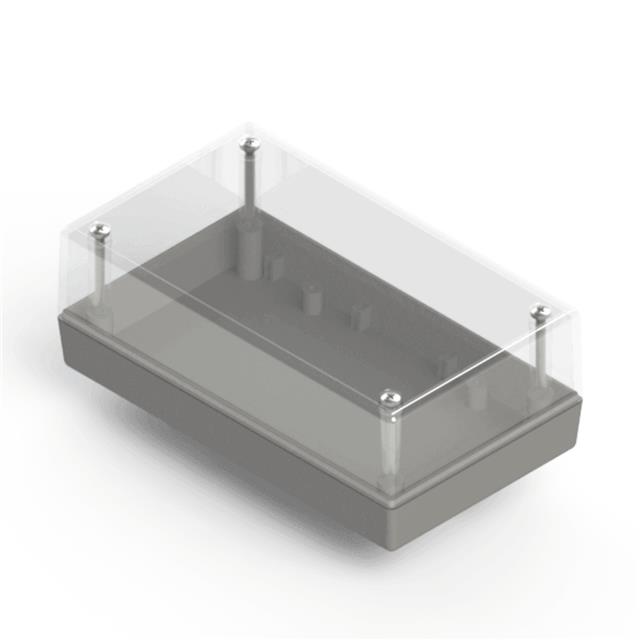

Serpac 152RC,GY	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Clear Cover/Door Gray	Plastic Polycarbonate	Box	18.3 in²	118 cm²		Front Access PCB Supports	Hand Held Split Sides

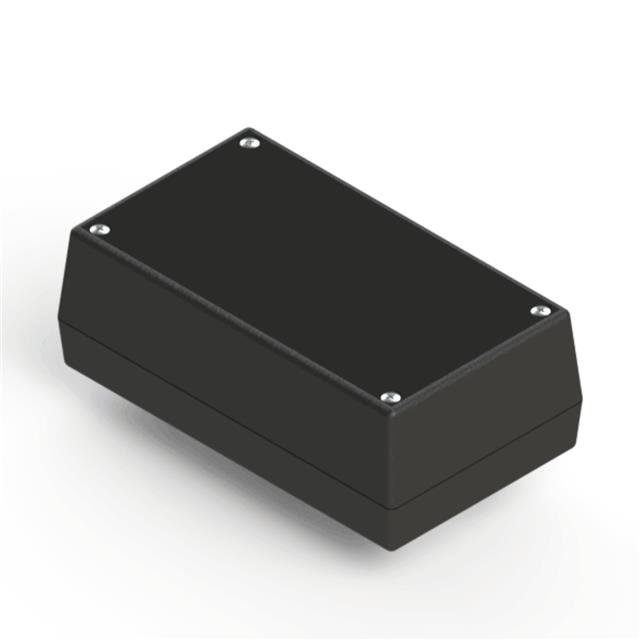

Serpac 152RI,BK	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Black	ABS Plastic	Box	18.3 in²	118 cm²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides

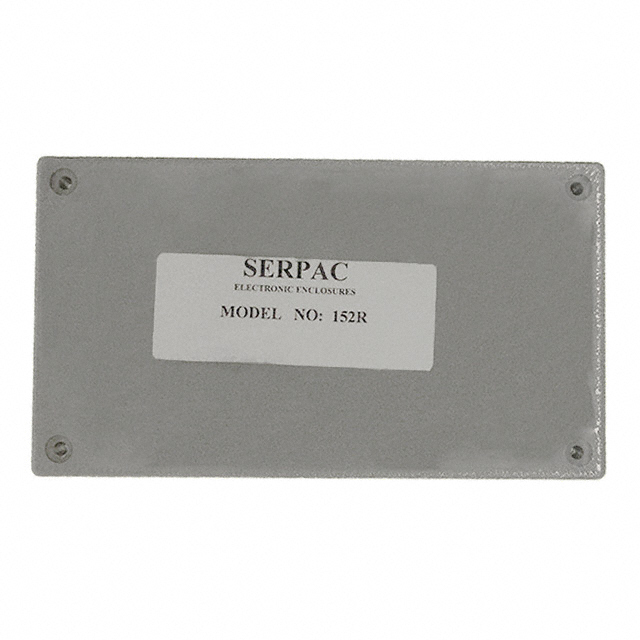

Serpac 152R,GY	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "	Gray	ABS Plastic	Box	18.3 in²	118 cm²	UL94 HB	Front Access PCB Supports	Hand Held Split Sides

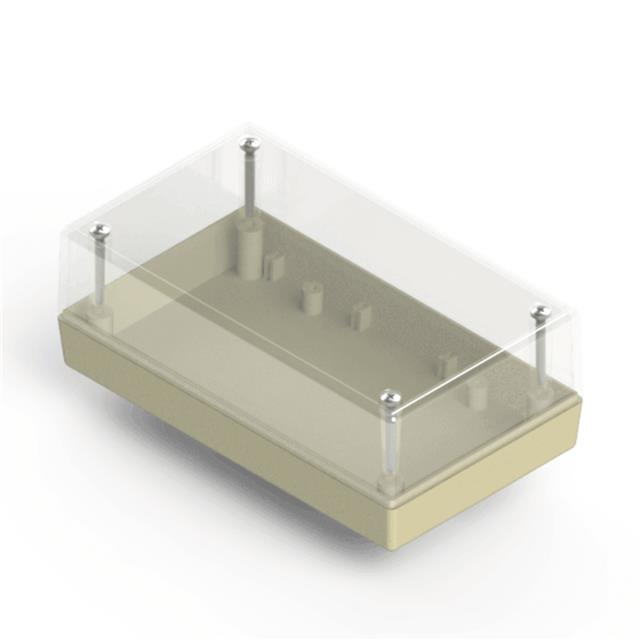

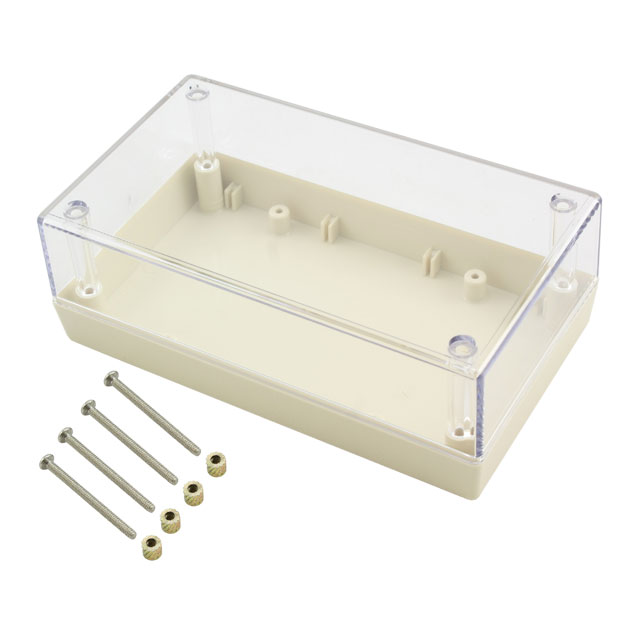

Serpac 152RC,AL	119.29 g	0.263 lb	50.8 mm	2 in	2.54 mm	0.1 in	IP40 NEMA 1	5.62 "	142.75 mm	82.55 mm	3.25 "		Plastic Polycarbonate	Box	18.3 in²	118 cm²		Front Access PCB Supports	Hand Held Split Sides
