3105Z Series
Manufacturer: Belden Inc.
Beta
⌘K

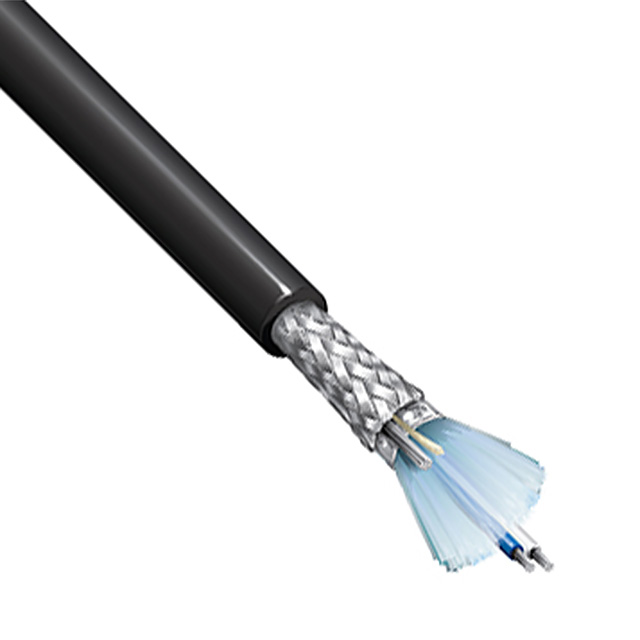

CABLE 2COND 22AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Voltage | Conductor Insulation | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Material | Number of Conductors | Features | Shield Type | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | Foam High Density Polyethylene (FHDPE) | Low Smoke Zero Halogen (LSZH) | Black | 10.16 mm | 0.4 in | -20 ░C | 60 °C | Industrial | 30 AWG | 7 | 22 AWG | Copper Tinned | 2 | Drain Wire UV Resistant | Braid Foil | Multi-Conductor |
