ESE-24 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH DETECTOR SPDT 0.01A 5V

Part	Termination Style	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Electrical Life	Operating Position	Operating Position	Operating Force	Current Rating (Amps)	Circuit	Voltage Rating - DC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Features

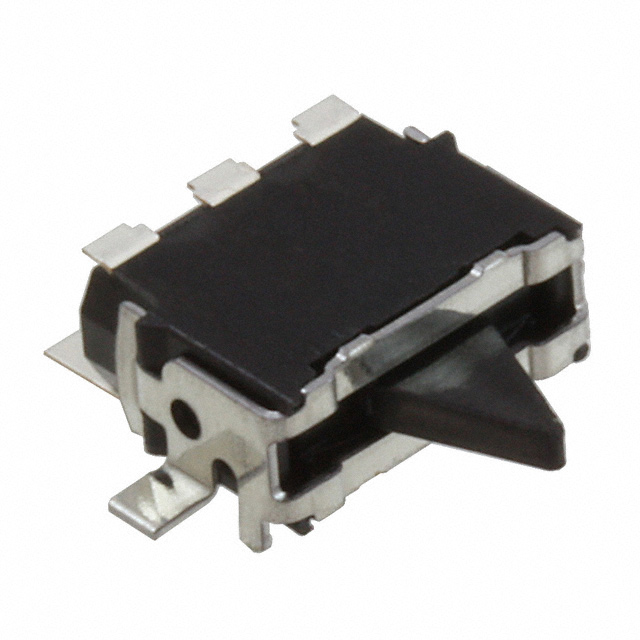

Panasonic Industrial Automation Sales ESE-24CMH6T	SMD (SMT) Tab	Mom-Off-Mom	85 °C	-40 °C	Surface Mount Right Angle	Angled Toggle (Detector)	50000 Cycles	0.132 in	3.35 mm	35 gf	10 mA	SPDT	5 V

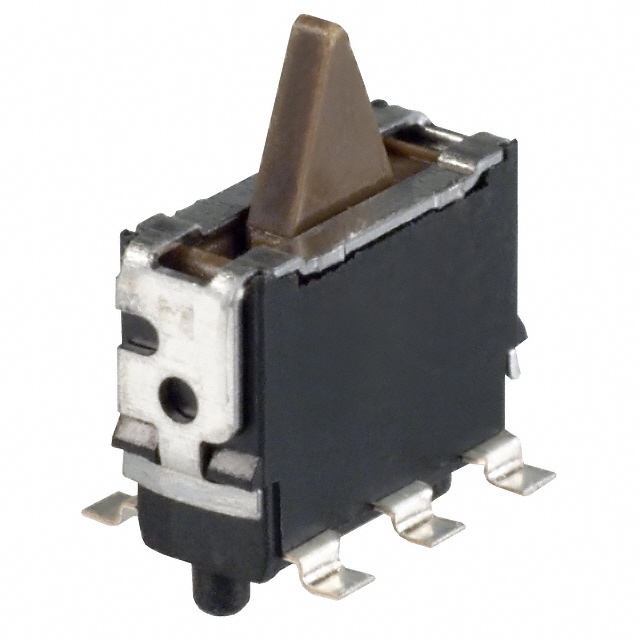

Panasonic Industrial Automation Sales ESE-24MV1	SMD (SMT) Tab	Mom-Off-Mom			Surface Mount	Angled Toggle (Detector)	50000 Cycles	0.317 in	8.05 mm	35 gf	10 mA	SPDT	5 V	-10 °C	158 °F	Board Guide
Panasonic Industrial Automation Sales ESE-24MV6T	SMD (SMT) Tab	Mom-Off-Mom			Surface Mount	Angled Toggle (Detector)	50000 Cycles	0.317 in	8.05 mm	35 gf	10 mA	SPDT	5 V	-10 °C	158 °F	Board Guide

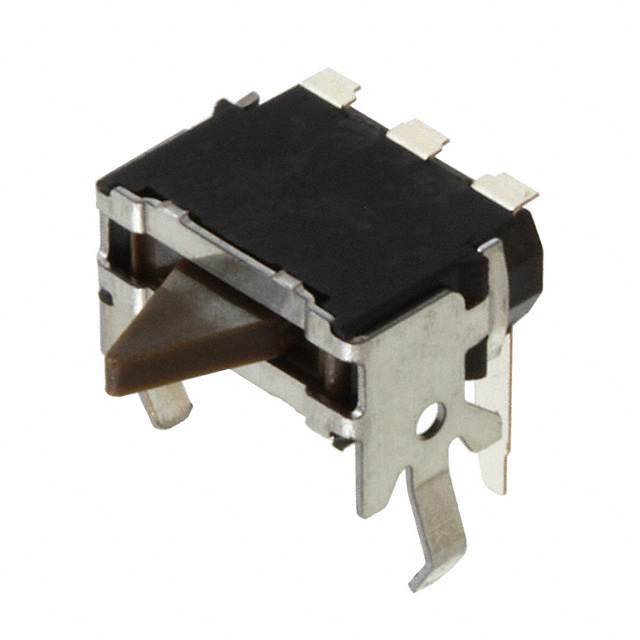

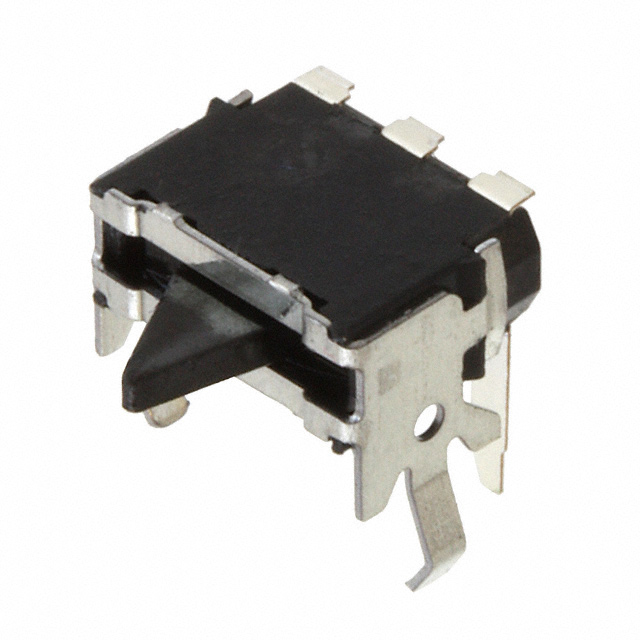

Panasonic Industrial Automation Sales ESE-24SH6	PC Pin	Mom-Off-Mom			Through Hole Right Angle	Angled Toggle (Detector)	50000 Cycles	0.179 in	4.55 mm	35 gf	10 mA	SPDT	5 V	-10 °C	158 °F
Panasonic Industrial Automation Sales ESE-24CSH1	PC Pin	Mom-Off-Mom	85 °C	-40 °C	Through Hole Right Angle	Angled Toggle (Detector)	50000 Cycles	0.179 in	4.55 mm	35 gf	10 mA	SPDT	5 V

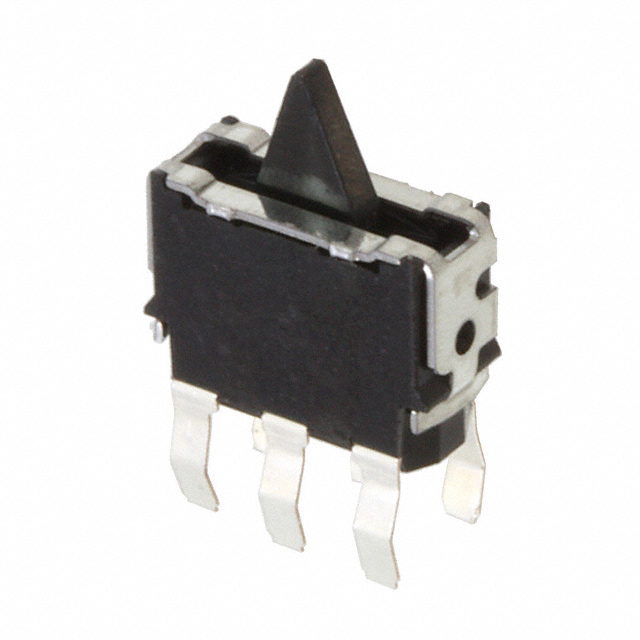

Panasonic Industrial Automation Sales ESE-24SV6	PC Pin	Mom-Off-Mom			Through Hole	Angled Toggle (Detector)	50000 Cycles	0.317 in	8.05 mm	35 gf	10 mA	SPDT	5 V	-10 °C	158 °F
Panasonic Industrial Automation Sales ESE-24CMH9T	SMD (SMT) Tab	Mom-Off-Mom	85 °C	-40 °C	Surface Mount Right Angle	Angled Toggle (Detector)	50000 Cycles	0.132 in	3.35 mm	35 gf	10 mA	SPDT	5 V
