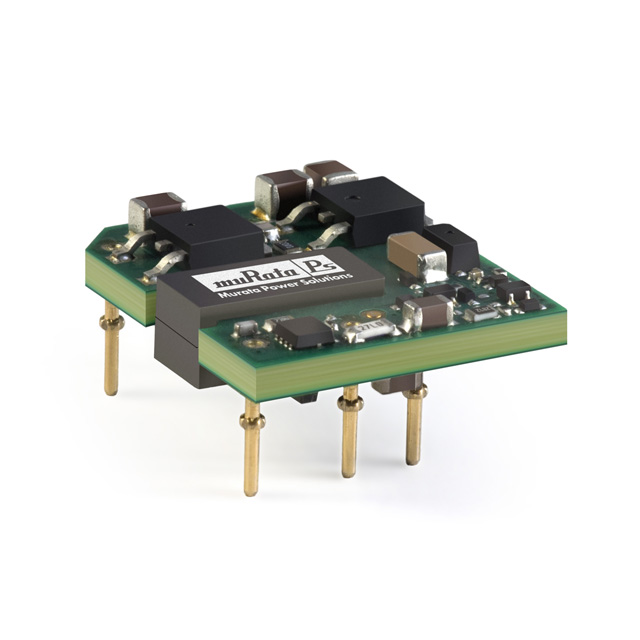

BEI15-120 Series

Catalog

DC DC CONVERTER +/-12V 15W

Part	Efficiency	Number of Outputs	Voltage - Isolation	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Applications	Type	Package / Case
Murata Electronics BEI15-120-Q48P-C	85.5 %	2	2250 VDC	Through Hole	18 V	15 W	12 V	85 °C	-40 C	625 mA	625 mA	-12 V	27.9 mm	1.1 in	8.9 mm	0.35 in	0.96 in	24.4 mm	75 V	ITE (Commercial)	Isolated Module	6-DIP Module
Murata Electronics BEI15-120-Q12N-C	86 %	2	2000 V	Through Hole	9 V	15 W	12 V	85 °C	-40 C	625 mA	625 mA	-12 V	27.9 mm	1.1 in	8.9 mm	0.35 in	0.96 in	24.4 mm	36 V	ITE (Commercial)	Isolated Module	6-DIP Module
Murata Electronics BEI15-120-Q48N-C	85.5 %	2	2250 VDC	Through Hole	18 V	15 W	12 V	85 °C	-40 C	625 mA	625 mA	-12 V	27.9 mm	1.1 in	8.9 mm	0.35 in	0.96 in	24.4 mm	75 V	ITE (Commercial)	Isolated Module	6-DIP Module
Murata Electronics BEI15-120-Q12P-C	86 %	2	2000 V	Through Hole	9 V	15 W	12 V	85 °C	-40 C	625 mA	625 mA	-12 V	27.9 mm	1.1 in	8.9 mm	0.35 in	0.96 in	24.4 mm	36 V	ITE (Commercial)	Isolated Module	6-DIP Module
