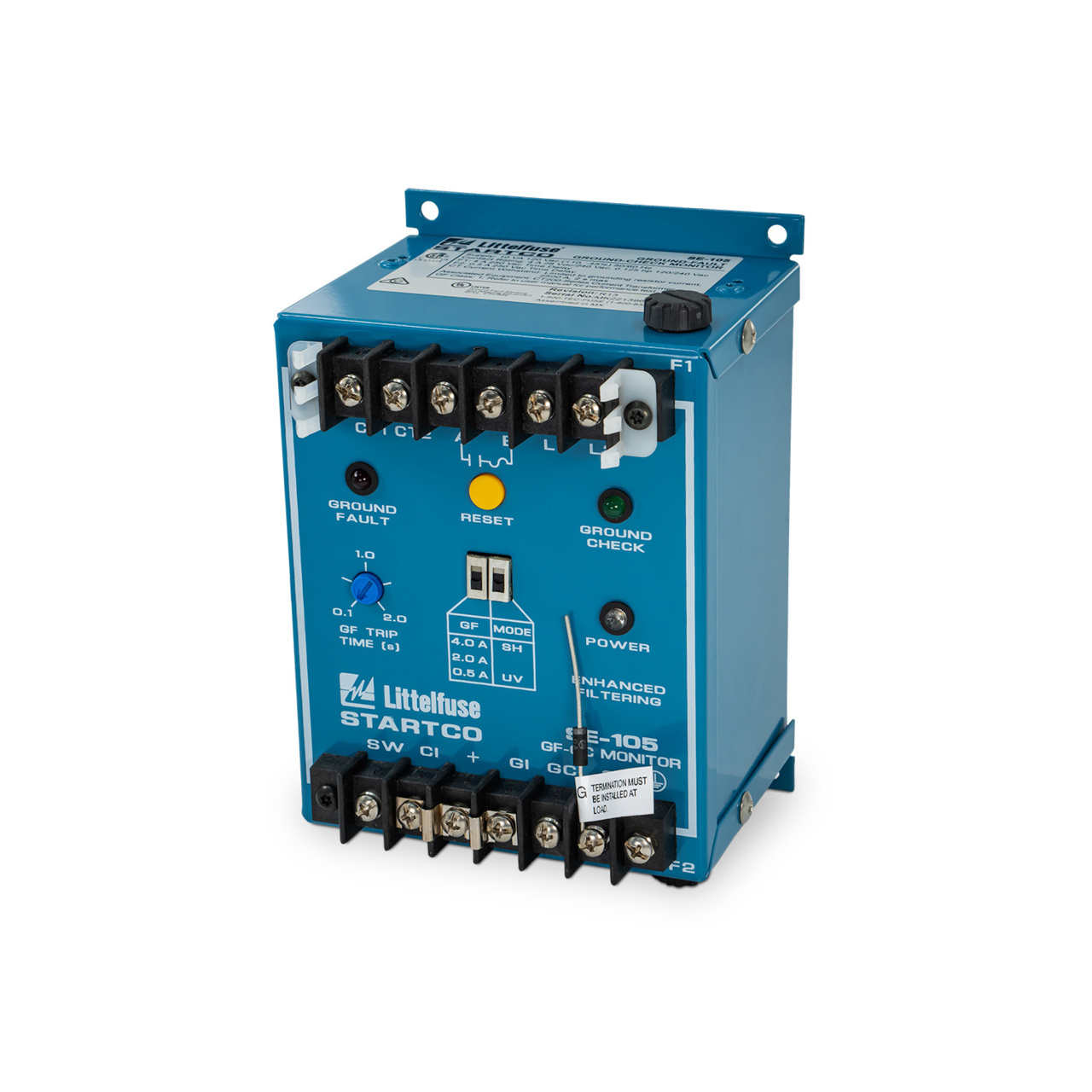

SE-105E Series

GF-GC Monitor c/w 1N5339B term 240VAC

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

GF-GC Monitor c/w 1N5339B term 240VAC

Part	Voltage - Supply	Mounting Type	Termination Style	Delay Time [Min]	Delay Time [Max]	Trip Range [Min]	Trip Range [Max]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Features
Littelfuse/Commercial Vehicle Products SE-105E	240 VAC	Chassis Mount	Screw Terminal	0.1 Sec	1 Sec	0.5 A	4 A	Ground Fault	-40 °C	60 °C	Automatic Reset Manual Reset

Catalog

GF-GC Monitor c/w 1N5339B term 240VAC

Description

The SE-105/SE-107 is a combination ground-wire monitor and ground-fault relay for resistance-grounded systems. It continuously monitors the integrity of the ground conductor to protect portable equipment from hazardous voltages caused by ground faults. The SE-105/SE-107 is an excellent choice for trailing cables 5 kV and under in underground mining applications. For higher voltages or long-cable applications, see the SE-134C/SE-135.
