0001.1008 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

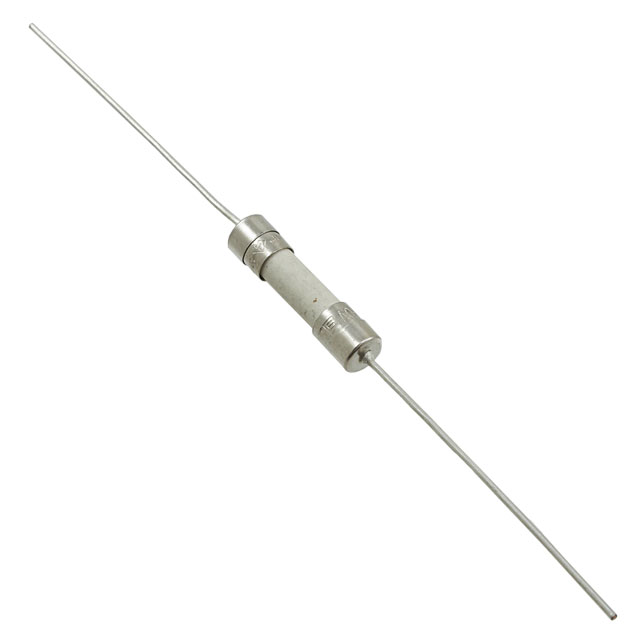

FUSE CERAMIC 2.5A 250VAC 5X20MM
| Part | Response Time | Current Rating (Amps) | Mounting Type | Breaking Capacity @ Rated Voltage | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Package / Case [y] | Package / Case | Package / Case [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Fast Blow | 2.5 A | Through Hole | 1.5 kA | Cartridge Ceramic | -55 C | 125 °C | 3.28 | 20 mm | Axial | 5 mm | 0.213 in | 0.886 in | 22.5 mm | 5.4 mm | 250 V |
