634-W44 Series
Manufacturer: EDAC Inc.
Beta
⌘K

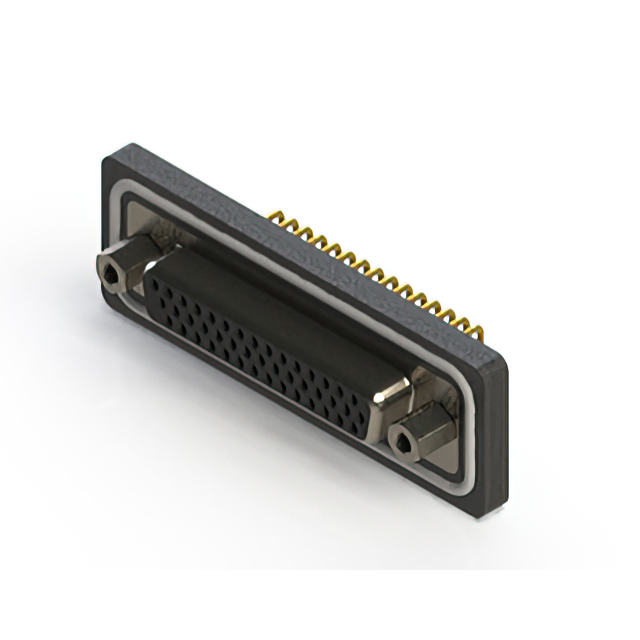

CONN D-SUB HD RCPT 44P R/A SLDR
| Part | Contact Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Shell Material, Finish | Number of Positions | Material Flammability Rating | Contact Finish | Ingress Protection | Connector Style | Connector Type | Contact Type | Mounting Type | Flange Feature | Termination | Shell Size, Connector Layout | Current Rating (Amps) | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 44 | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | D-Sub High Density | Receptacle Female Sockets | Signal | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | 3 | 3 A | 3 | 0.38 µm | 15 µin |
 EDAC Inc. | Copper Alloy | Black | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Nickel Plated Steel | 44 | UL94 V-0 | Gold | IP67 - Dust Tight Waterproof | D-Sub High Density | Receptacle Female Sockets | Signal | Right Angle Through Hole | 4-40 Mating Side Female Screwlock | Solder | 3 | 3 A | 3 | 0.76 Ám | 30 Áin |
