BS2 Series

Catalog

IC MODULE SX48AC 20MHZ 38B 16KB

Part	Speed	Core Processor	Flash Size	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Module/Board Type	RAM Size	Operating Temperature [Max]

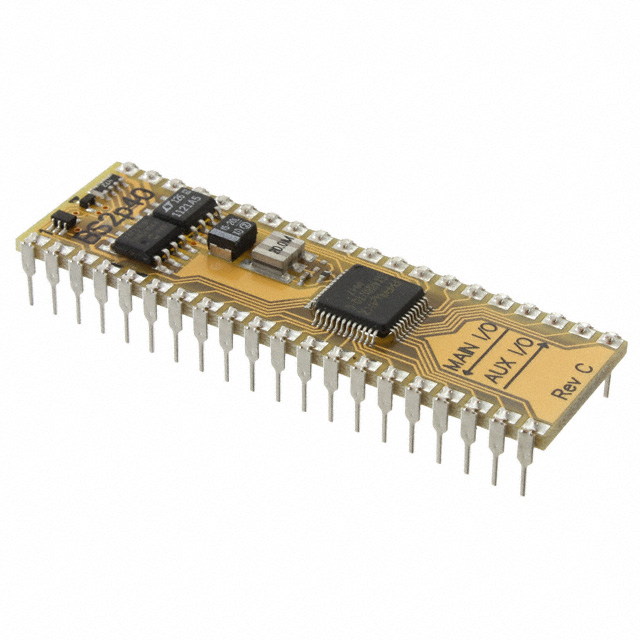

Parallax Inc. BS2P40	20 MHz	SX48AC	16 KB	0.6 in	15.2 mm	53.3 mm	2.1 in	MCU Core	38 B	70 °C

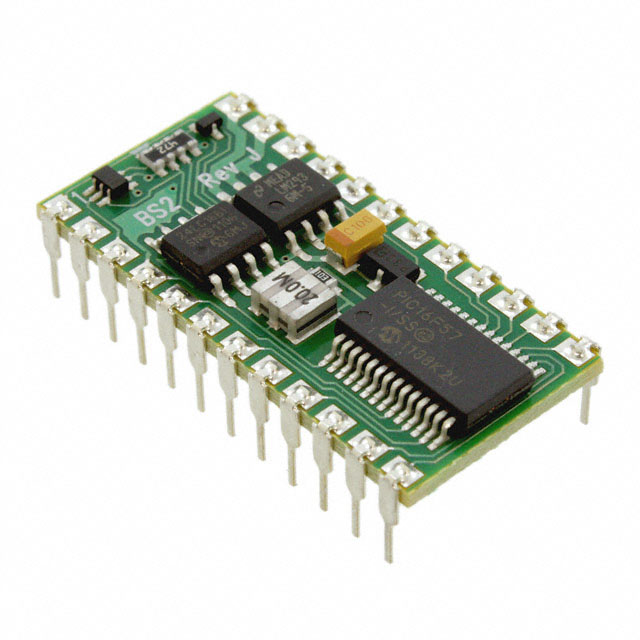

Parallax Inc. BS2-IC	20 MHz	PIC16C57C	2 KB	0.6 in	15 mm	30 mm	1.2 in	MCU Core	32 B	70 °C

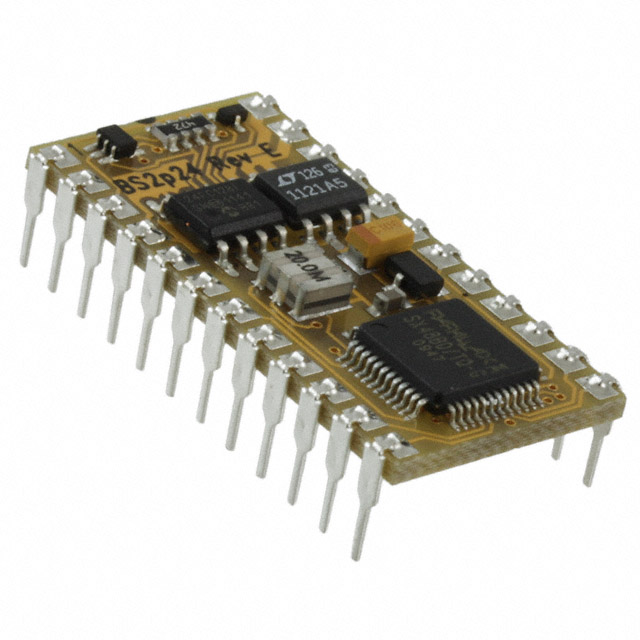

Parallax Inc. BS2P24	20 MHz	SX48AC	16 KB	0.6 in	15 mm	30 mm	1.2 in	MCU Core	38 B	70 °C

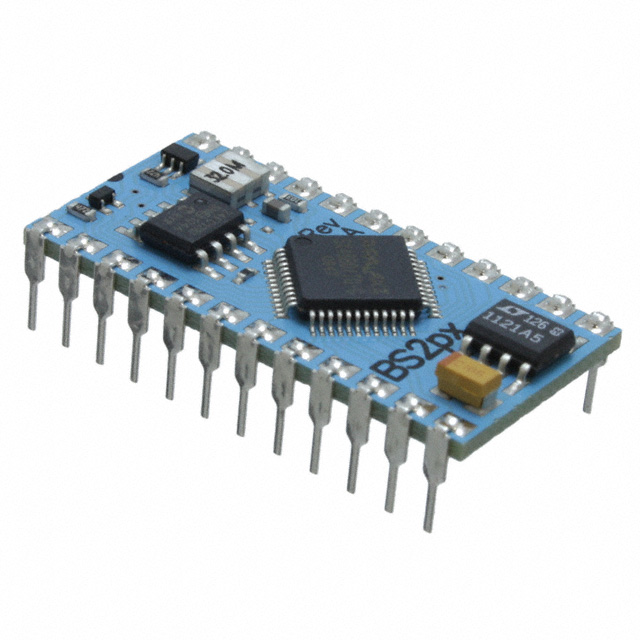

Parallax Inc. BS2PX24	32 MHz	SX48AC	16 KB	0.6 in	15 mm	30 mm	1.2 in	MCU Core	38 B	70 °C

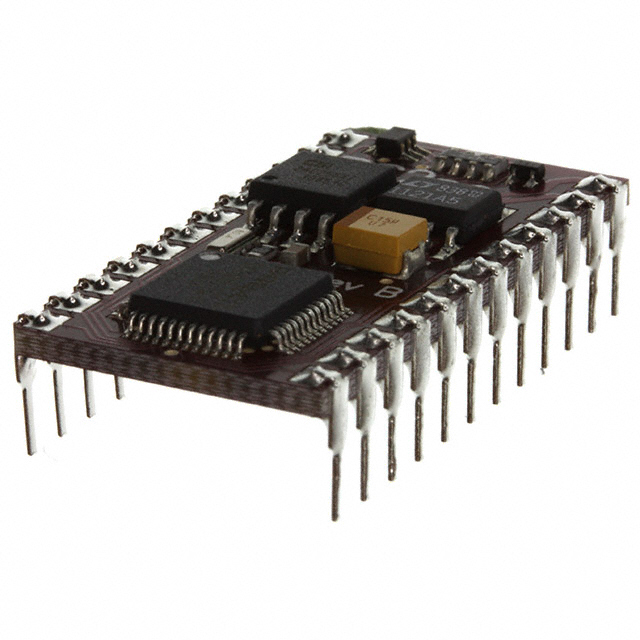

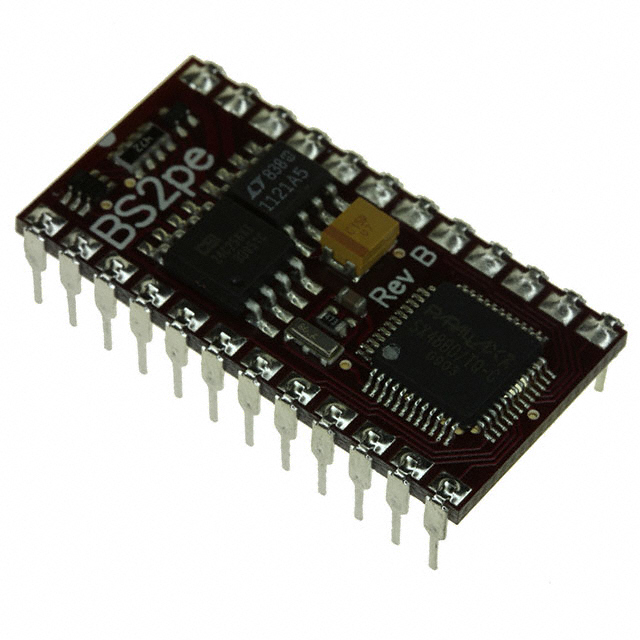

Parallax Inc. BS2PE	8 MHz	SX48AC	32 KB	0.6 in	15 mm	30 mm	1.2 in	MCU Core	38 B	70 °C
