502231 Series
Manufacturer: Molex
Beta
⌘K

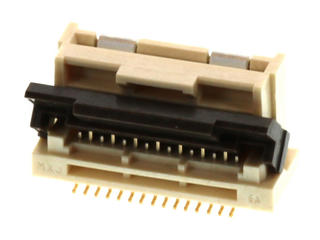

0.50MM PITCH EASY-ON FFC/FPC CONNECTOR, FOR LVDS, 6.05MM HEIGHT, VERTICAL, SURFACE MOUNT, ZIF, 15 CIRCUITS
| Part | Current Rating (Amps) | Actuator Color | Mating Cycles | Housing Color | Connector/Contact Type | Flat Flex Type | Mounting Type | Housing Material | Actuator Material | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Cable End Type | Pitch | Pitch | Locking Feature | FFC, FCB Thickness | Features | Termination | Voltage Rating | Number of Positions | Contact Material | Material Flammability Rating | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 400 mA | Brown | 20 | Natural | Contacts Vertical - 1 Sided | FFC | Surface Mount | Glass Filled Liquid Crystal Polymer (LCP) | Glass Filled Nylon 9T Polyamide (PA9T) | 0.238 in | 6.05 mm | 85 °C | -25 °C | Gold | Straight | 0.02 " | 0.5 mm | Flip Lock | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | Solder | 50 V | 15 | Phosphor Bronze | UL94 V-0 | |

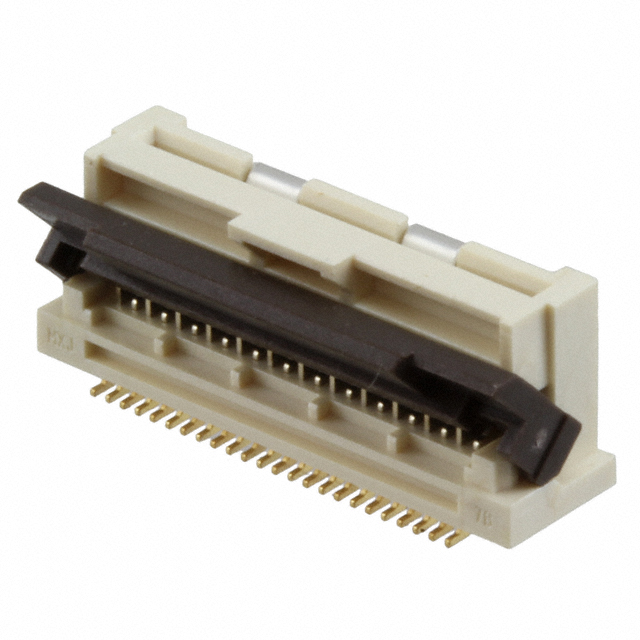

 Molex | 400 mA | Brown | 20 | Natural | Contacts Vertical - 1 Sided | FFC | Surface Mount | Glass Filled Liquid Crystal Polymer (LCP) | Glass Filled Nylon 9T Polyamide (PA9T) | 0.238 in | 6.05 mm | 85 °C | -25 °C | Gold | Straight | 0.02 " | 0.5 mm | Flip Lock | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | Solder | 50 V | 24 | Phosphor Bronze | UL94 V-0 | |

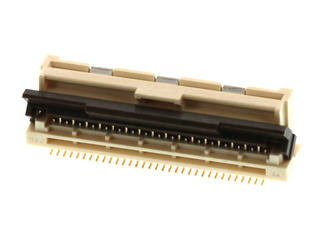

 Molex | Contacts Vertical - 1 Sided | FFC | Surface Mount | Glass Filled Liquid Crystal Polymer (LCP) | Glass Filled Nylon 9T Polyamide (PA9T) | 0.238 in | 6.05 mm | 85 °C | -25 °C | Gold | Straight | 0.02 " | 0.5 mm | Flip Lock | 0.3 mm | Solder Retention Zero Insertion Force (ZIF) | Solder | 50 V | Phosphor Bronze | UL94 V-0 | 33 |
