855-005 Series
Manufacturer: NorComp Inc.
Beta
⌘K

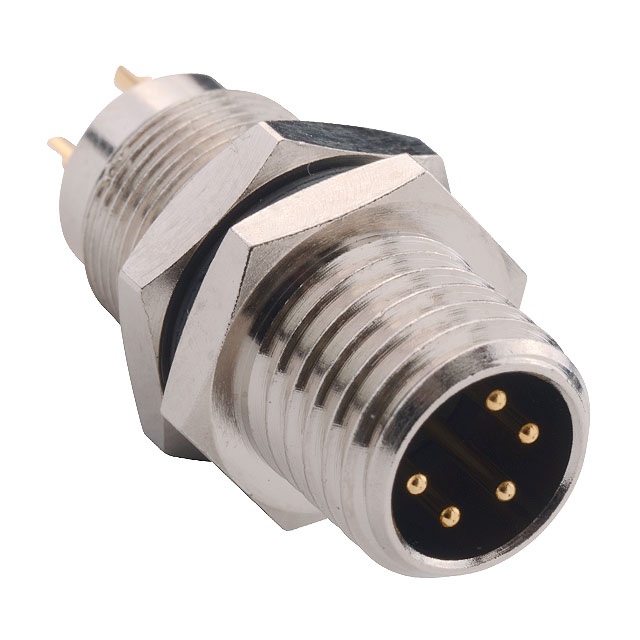

CONN RCPT MALE 5P GOLD SLDR CUP
| Part | Contact Finish - Mating | Current Rating (Amps) | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Material | Mounting Feature | Shell Size - Insert | Applications | Material Flammability Rating | Ingress Protection | Contact Finish Thickness - Mating | Connector Type | Shell Material | Mounting Type | Fastening Type | Number of Positions | Primary Material | Voltage Rating | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Gold | 1.5 A | Nickel | 85 °C | -40 C | Silver | Brass | Bulkhead - Rear Side Nut | M8-5 | Industrial Medical | UL94 V-0 | IP67 - Dust Tight Waterproof | Flash | Receptacle Male Pins | Brass | Panel Mount | Threaded | 5 | Metal | 30 VDC | Polybutylene Terephthalate (PBT) |
