ED020PL Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
CONN SOCKET PLCC 20POS TIN
| Part | Termination Post Length | Termination Post Length | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Features | Housing Material | Type | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Pitch - Post | Pitch - Post | Pitch - Mating | Pitch - Mating | Termination | Mounting Type | Contact Material - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

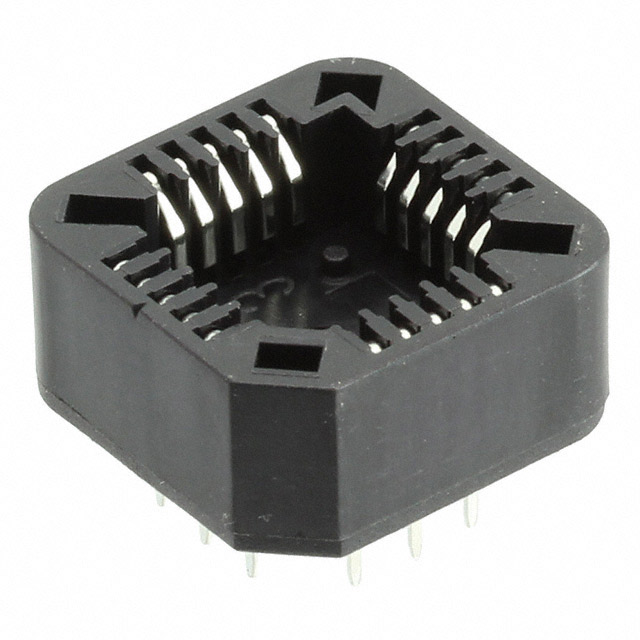

 On Shore Technology Inc. | 3 mm | 0.118 in | 30 mOhm | UL94 V-0 | 1 A | Closed Frame | Polybutylene Terephthalate (PBT) | PLCC | 20 | 5 | 4 | Phosphor Bronze | -55 C | 105 ░C | Tin | 0.1 in | 2.54 mm | 0.1 " | 2.54 mm | Solder | Through Hole | Phosphor Bronze |

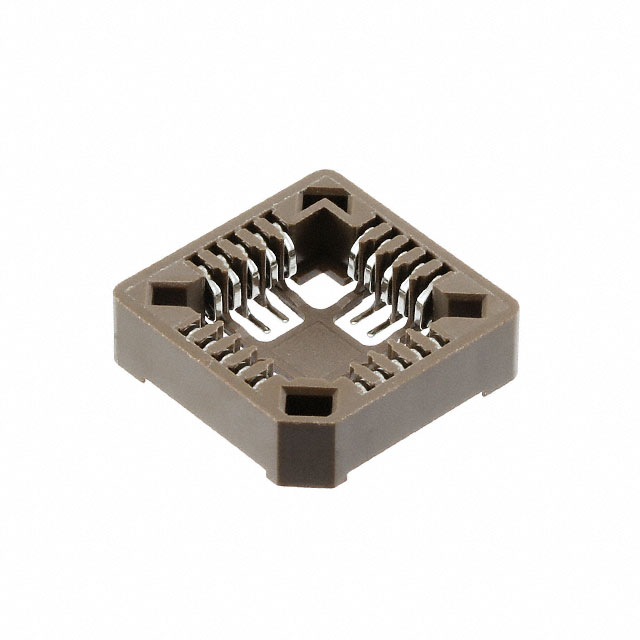

 On Shore Technology Inc. | 30 mOhm | UL94 V-0 | 1 A | Closed Frame | PLCC | 20 | 5 | 4 | Phosphor Bronze | -55 C | 105 ░C | 0.05 in | 1.27 mm | 0.05 in | 1.27 mm | Solder | Surface Mount | Phosphor Bronze |
