085009 Series

Manufacturer: Molex

Catalog

CONN DIN HDR 64POS PCB RA GOLD

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Termination	Style	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Mounting Type	Contact Finish	Material - Insulation	Level, Class	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Molex 0850090062	64	-55 °C	125 °C	2.54 mm	0.1 in	Header Male Pins	3	Solder	M	UL94 V-0	24 µin	0.61 µm	40	Through Hole Right Angle	Gold	Polyester Thermoplastic
Molex 0850090335	64	-55 °C	125 °C	2.54 mm	0.1 in	Header Male Pins	3	Solder	M	UL94 V-0	39.4 Áin	1 Ám	60	Through Hole Right Angle	Gold	Polyester Thermoplastic	1

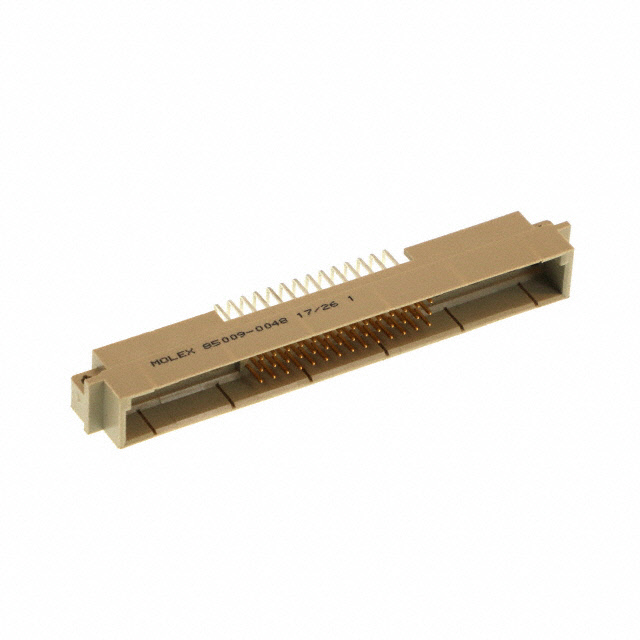

Molex 0850090048	48	-55 °C	125 °C	2.54 mm	0.1 in	Header Male Pins	3	Solder	M	UL94 V-0	24 µin	0.61 µm	42	Through Hole Right Angle	Gold	Polyester Thermoplastic		6	42
Molex 0850090854	48	-55 °C	125 °C	2.54 mm	0.1 in	Header Male Pins	3	Solder	M	UL94 V-0	39.4 Áin	1 Ám	42	Through Hole Right Angle	Gold	Polyester Thermoplastic	1	6	42
Molex 0850090012		-55 °C	125 °C	2.54 mm	0.1 in	Header Male Pins	3	Solder	M	UL94 V-0	24 µin	0.61 µm	24	Through Hole Right Angle	Gold	Polyester Thermoplastic			24	8
