B2 3/32 Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

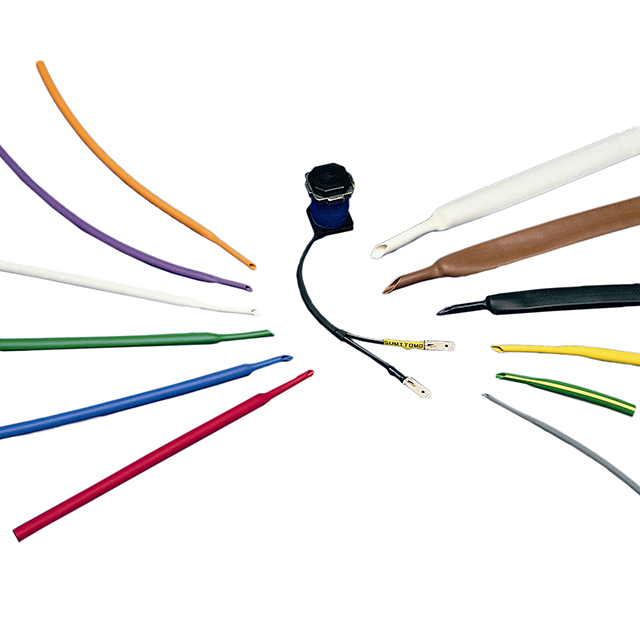

HEATSHRINK 3/32" YELLOW 1=1PC

Part	Type	Color	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Features	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Spool Size	Spool Size	Length
Sumitomo Electric Interconnect Products, Inc. B2 3/32 YELLOW 4FT	Tubing Flexible	Yellow	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm	4 ft	1.22 m
Sumitomo Electric Interconnect Products, Inc. B2 3/32 GREEN 4FT	Tubing Flexible	Green	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm	4 ft	1.22 m
Sumitomo Electric Interconnect Products, Inc. B2 3/32 BLUE SPL	Tubing Flexible	Blue	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm			152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/32 GREEN SPL	Tubing Flexible	Green	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm			152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/32 YELLOW SPL	Tubing Flexible	Yellow	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm			152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/32 RED SPL	Tubing Flexible	Red	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm			152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
Sumitomo Electric Interconnect Products, Inc. B2 3/32 RED 4FT	Tubing Flexible	Red	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm	4 ft	1.22 m
Sumitomo Electric Interconnect Products, Inc. B2 3/32 WHITE 4FT	Tubing Flexible	White	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm	4 ft	1.22 m
Sumitomo Electric Interconnect Products, Inc. B2 3/32 BLACK 4FT	Tubing Flexible	Black	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant UV Resistant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm	4 ft	1.22 m
Sumitomo Electric Interconnect Products, Inc. B2 3/32 BLACK SPL	Tubing Flexible	Black	1	2	Polyolefin (PO) Irradiated	90 °C	0.51 mm	0.02 in	Flame Retardant	-55 C	135 °C	0.047 in	1.19 mm	0.106 "	2.7 mm			152.5 m	500.3 ft	Enter Number of Feet in Order Quantity
