SML-LXR85 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

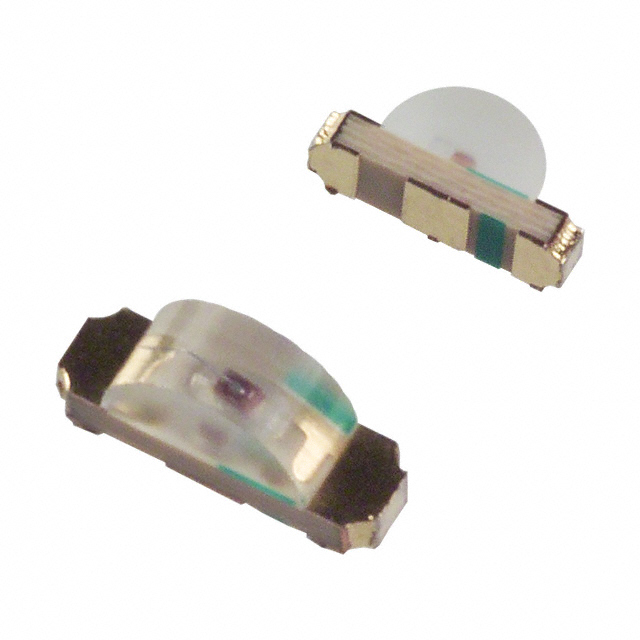

LED ORANGE CLEAR SMD R/A

Part	Lens Transparency	Millicandela Rating	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Configuration	Wavelength - Peak	Lens Style	Package / Case	Viewing Angle	Height (Max) [z]	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Color	Color
Lumex Opto/Components Inc. SML-LXR85SOC-TR	Clear	70 mcd	1 mm	2 mm	3.2 mm	1.5 mm	20 mA	Standard	610 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	2 V	Colorless
Lumex Opto/Components Inc. SML-LXR85SYC-TR	Clear	50 mcd	1 mm	2 mm	3.2 mm	1.6 mm	20 mA	Standard	590 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	2 V	Colorless	Yellow
Lumex Opto/Components Inc. SML-LXR85YC-TR	Clear	10 mcd	1 mm	2 mm	3.2 mm	1.6 mm	20 mA	Standard	585 nm	Rectangle with Domed Top	2-SMD No Lead	130 °	1 mm	Right Angle Surface Mount	2.1 V	Colorless	Yellow

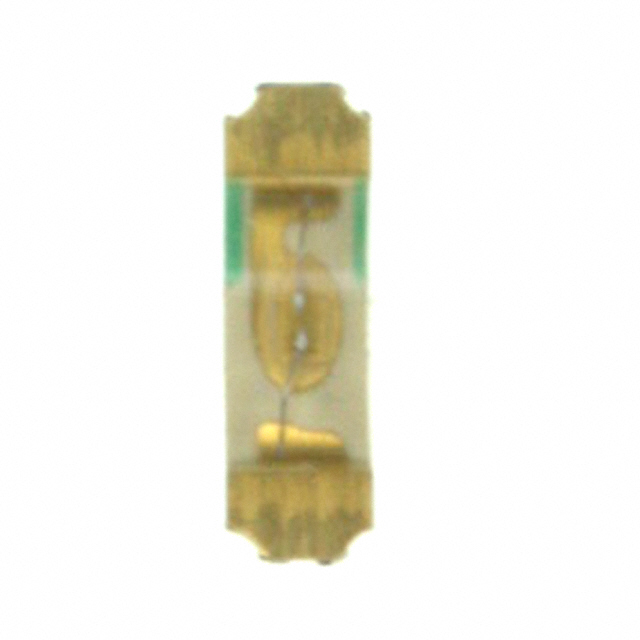

Lumex Opto/Components Inc. SML-LXR85USBC-TR	Clear	30 mcd	1 mm	2 mm	3.2 mm	1.6 mm	20 mA	Standard	470 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	3.5 V	Colorless	Blue
Lumex Opto/Components Inc. SML-LXR85IC-TR	Clear	12 mcd	1 mm	2 mm	3.2 mm	1.5 mm	20 mA	Standard	635 nm	Rectangle with Domed Top	2-SMD No Lead	130 °	1 mm	Right Angle Surface Mount	2 V	Colorless	Red
Lumex Opto/Components Inc. SML-LXR85SIC-TR	Clear	70 mcd	1 mm	2 mm	3.2 mm	1.5 mm	20 mA	Standard	636 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	2 V	Colorless	Red
Lumex Opto/Components Inc. SML-LXR85GC-TR	Clear	12 mcd	1 mm	2 mm	3.2 mm	1.5 mm	20 mA	Standard	565 nm	Rectangle with Domed Top	2-SMD No Lead	130 °	1 mm	Right Angle Surface Mount	2.2 V	Colorless	Green
Lumex Opto/Components Inc. SML-LXR85UPGC-TR	Clear	45 mcd	1 mm	2 mm	3.2 mm	1.6 mm	20 mA	Standard	525 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	3.5 V	Colorless	Green
Lumex Opto/Components Inc. SML-LXR85SRC-TR	Clear	30 mcd	1 mm	2 mm	3.2 mm	1.5 mm	20 mA	Standard	660 nm	Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	1.7 V	Colorless	Red
Lumex Opto/Components Inc. SML-LXR85SUGC-TR	Clear	45 mcd	1 mm	2 mm	3.2 mm	1.6 mm	20 mA	Standard		Rectangle with Domed Top	2-SMD No Lead	160 °	1 mm	Right Angle Surface Mount	2.2 V	Colorless	Green
