R50RB2 Series
Manufacturer: Bivar Inc.
Beta
⌘K
LED, BLUE, RED, THROUGH HOLE, 4.6MM, 45 °, DOME, R 50MA, B 50MA
| Part | Lens Style | Height (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Lens Size [diameter] | Current - Test [custom] | Current - Test [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Color | Lens Transparency | Configuration | Mounting Type | Package / Case | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Viewing Angle | Color | Lens Size | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

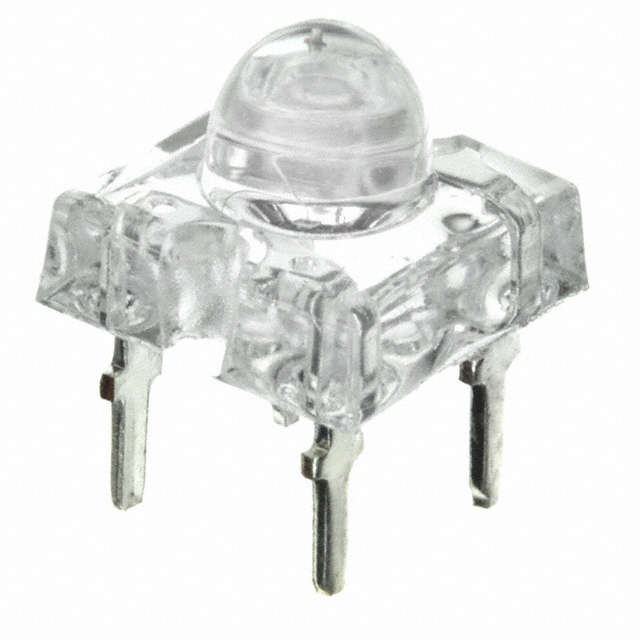

 Bivar Inc. | Round with Domed Top | 7.8 mm | 7.6 mm | 7.6 mm | 4.6 mm | 50 mA | 50 mA | 4000 mcd | 400 mcd | Colorless | Clear | Common Cathode | Through Hole | 4-DIP (0.200" 5.08mm) | 465 nm 628 nm | 2.6 V 3.8 V | 45 ° | Blue Red | ||

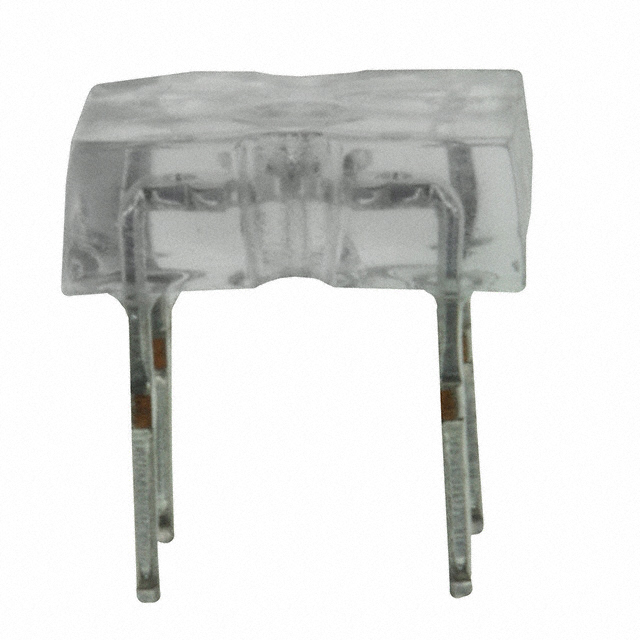

 Bivar Inc. | Square with Flat Top | 4.4 mm | 7.6 mm | 7.6 mm | 50 mA | 50 mA | Colorless | Clear | Common Cathode | Through Hole | 4-DIP (0.200" 5.08mm) | 465 nm 628 nm | 2.6 V 3.8 V | 160 ° | Blue Red | 7.6 mm | 150 mcd 600 mcd |
