84981 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
FFC / FPC BOARD CONNECTOR, 1 MM, 6 CONTACTS, RECEPTACLE, FPC SERIES, SURFACE MOUNT, TOP
| Part | Housing Color | Features | Connector/Contact Type | Housing Material | Voltage Rating | Mounting Type | Number of Positions | Height Above Board [z] | Height Above Board [z] | FFC, FCB Thickness | Contact Finish | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Flat Flex Type | Termination | Cable End Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 6 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |

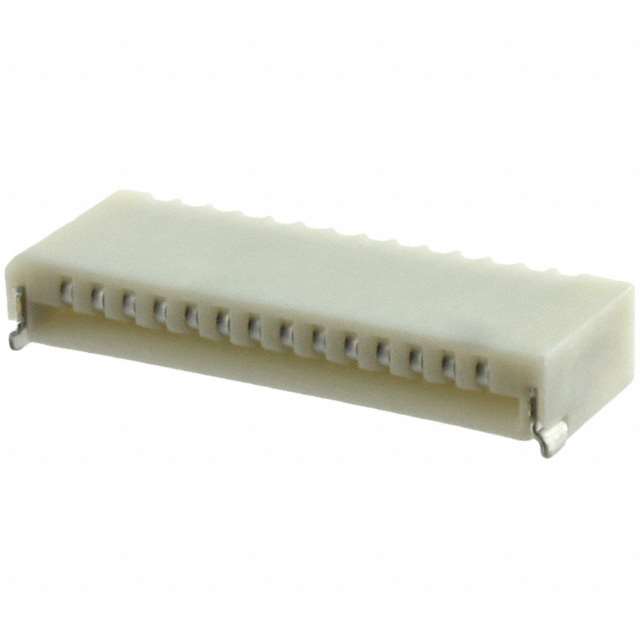

 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 14 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 4 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |

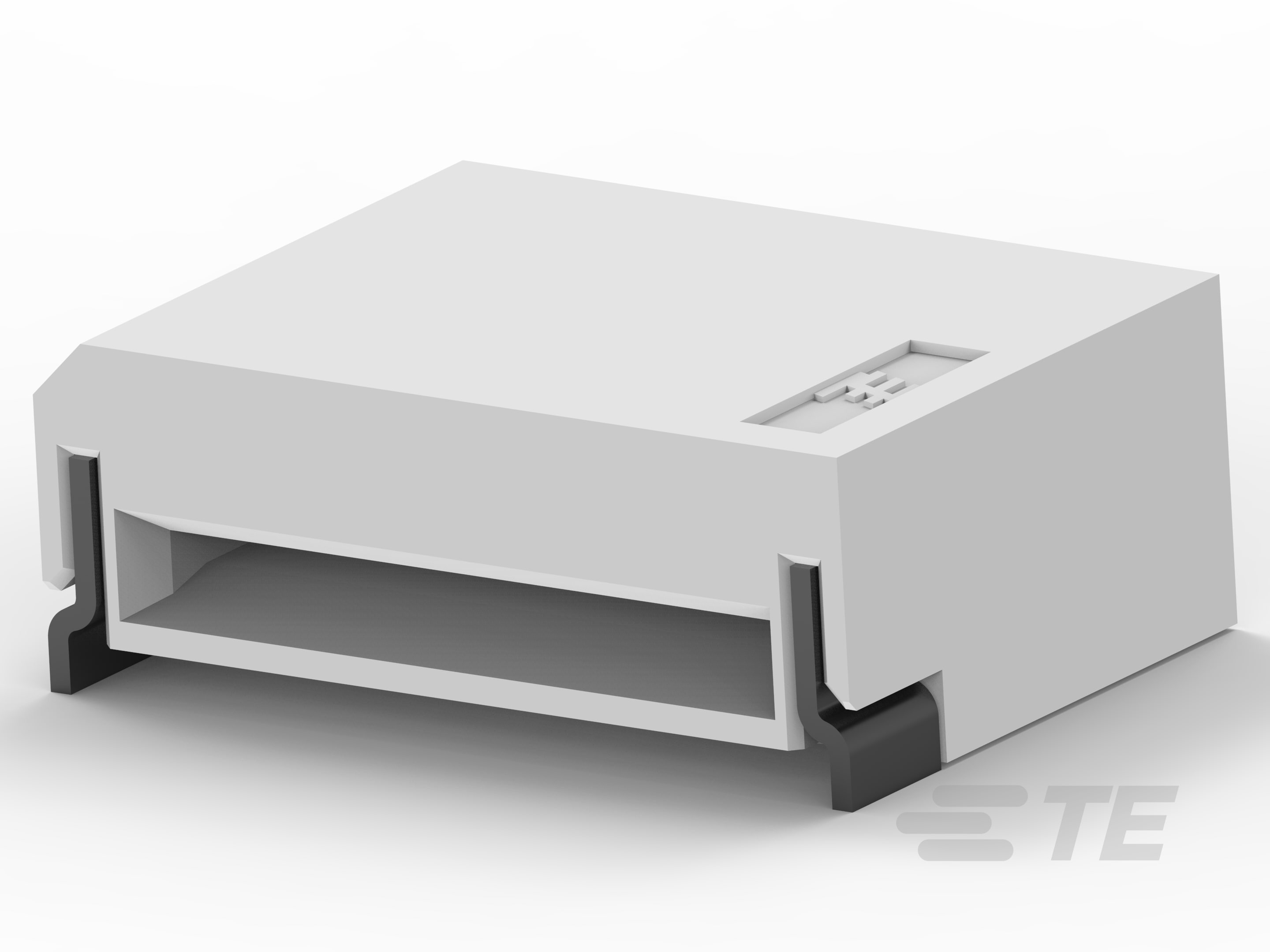

 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 5 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 18 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 30 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 21 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 20 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |

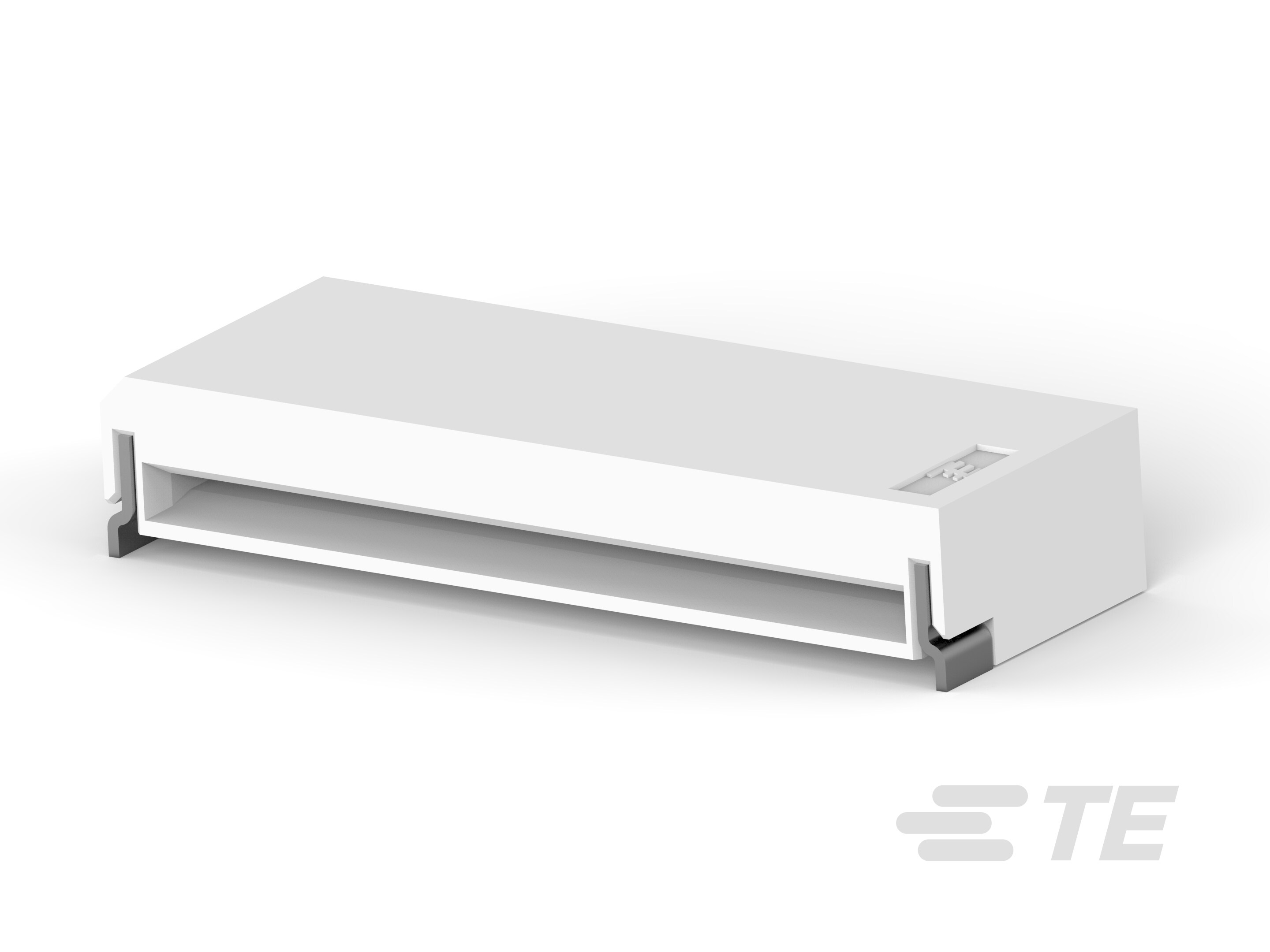

 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 13 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |

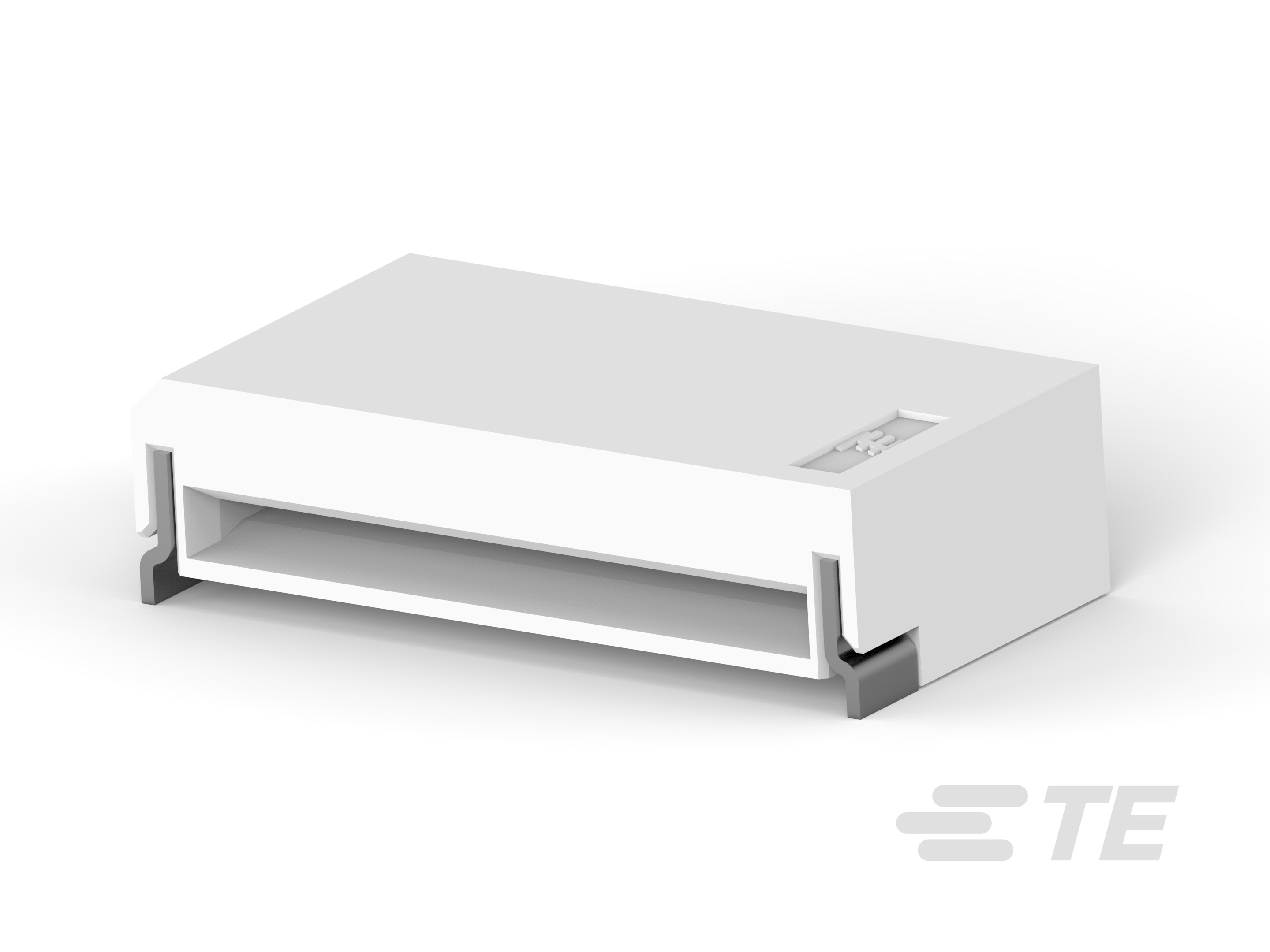

 TE Connectivity AMP Connectors | Beige | Solder Retention | Contacts Top | Glass Filled Nylon Polyamide (PA) | 125 VDC | Right Angle Surface Mount | 8 | 0.118 in | 3 mm | 0.3 mm | Tin | 1 mm | 0.039 in | 85 °C | -20 ░C | FFC FPC | Solder | Straight | Phosphor Bronze |
