GXE51 Series

Catalog

SWITCH SNAP ACTION SPDT 4A 250V

Part	Voltage Rating - AC	Termination Style	Circuit	Differential Travel	Differential Travel	Pretravel	Pretravel	Mounting Type	Mechanical Life	Operating Position	Operating Position	Ingress Protection	Actuator Type	Voltage Rating - DC	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Current Rating (Amps)	Features

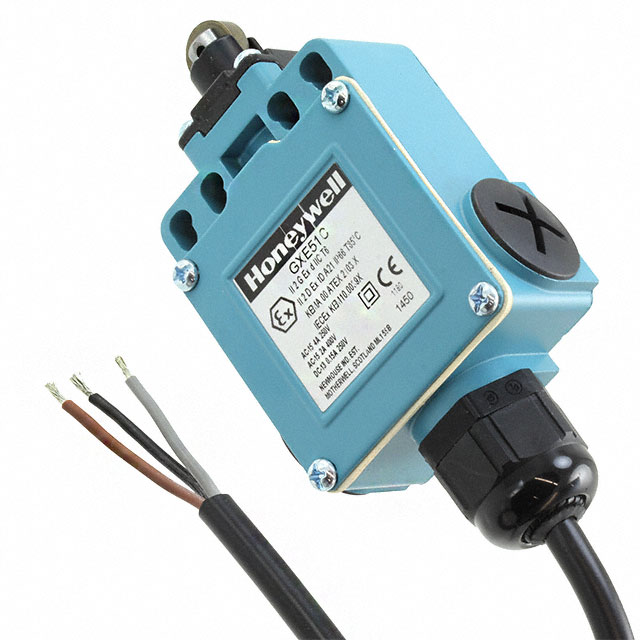

Honeywell Sensing and Productivity Solutions GXE51C	250 V	Cable Leads	SPDT	0.5 mm	0.02 in	2 mm	0.08 in	Chassis Mount	2000000 Cycles	1.14 in	28.95 mm	IP66	Roller Plunger	25 V	On-Mom	-20 C	60 °C	1632 gf	4 A 150 mA	Explosion Proof

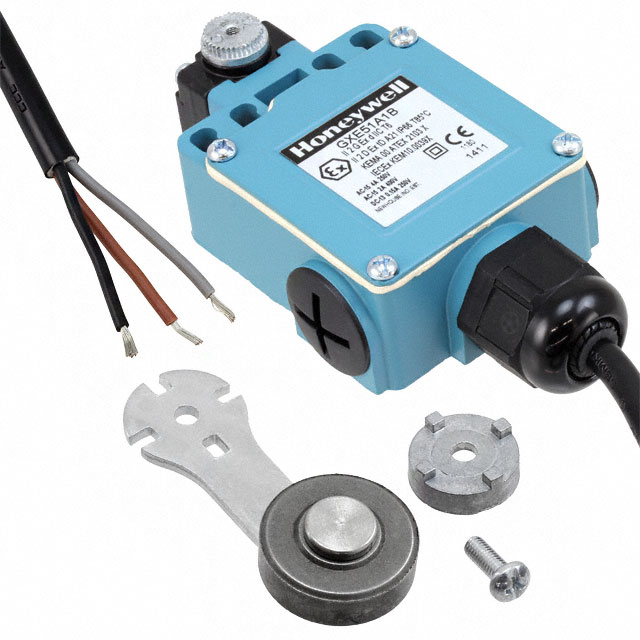

Honeywell Sensing and Productivity Solutions GXE51A1B	250 V	Cable Leads	SPDT				26 °	Chassis Mount	2000000 Cycles	26 °		IP66	Roller Side Rotary	25 V	On-Mom	-20 C	60 °C	25 gfm	4 A 150 mA	Explosion Proof
Honeywell Sensing and Productivity Solutions GXE51A2B	250 V	Cable Leads	SPDT				26 °	Chassis Mount	2000000 Cycles	26 °		IP66	Side Rotary Adjustable Roller	25 V	On-Mom	-20 C	60 °C	25 gfm	4 A 150 mA	Explosion Proof
Honeywell Sensing and Productivity Solutions GXE51A2A	250 V	Cable Leads	SPDT				26 °	Chassis Mount	2000000 Cycles	26 °		IP66	Side Rotary Adjustable Roller	25 V	On-Mom	-20 C	60 °C	25 gfm	4 A 150 mA	Explosion Proof
