LNJ206 Series

Catalog

LED RED CHIP SMD

Part	Lens Size [y]	Lens Size [x]	Configuration	Current - Test	Supplier Device Package	Height (Max) [Max] [z]	Lens Style	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Color	Package / Case	Lens Color	Lens Transparency

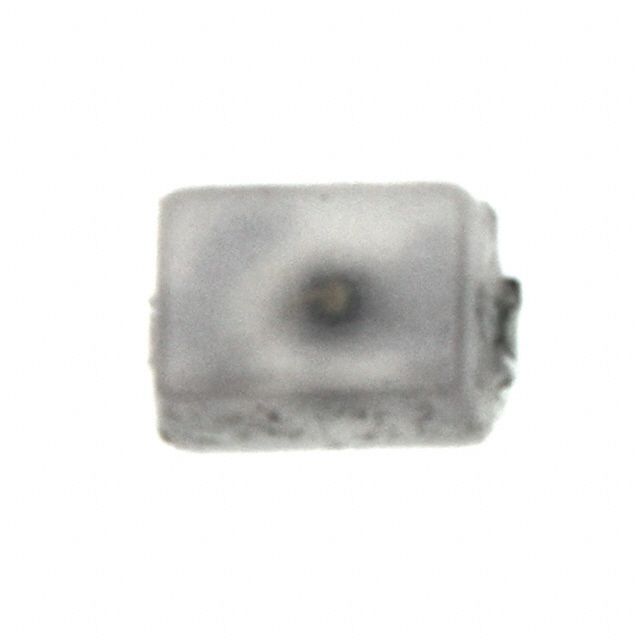

Panasonic Industrial Automation Sales LNJ206R5AUX	1.25 mm	1.7 mm	Standard	10 mA	Chip LED	1.1 mm	Rectangle with Flat Top	Surface Mount	1.25 mm	1.7 mm	5 mcd	1.72 V	660 nm	Red	2-SMD J-Lead

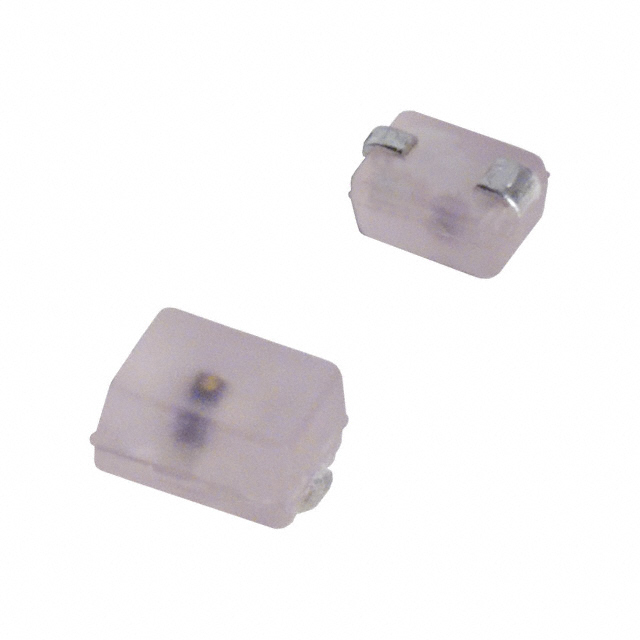

Panasonic Industrial Automation Sales LNJ206R5RRX	1.25 mm	1.7 mm	Standard	10 mA	Chip LED	1.1 mm	Rectangle with Flat Top	Surface Mount	1.25 mm	1.7 mm	0.4 mcd	2.03 V	700 nm	Red	2-SMD J-Lead	Red	Diffused
Panasonic Industrial Automation Sales LNJ206R5ARA	1.25 mm	1.7 mm	Standard	10 mA	Chip LED	1.1 mm	Rectangle with Flat Top	Surface Mount	1.25 mm	1.7 mm	5 mcd	1.72 V	660 nm	Red	2-SMD J-Lead	Red	Diffused
Panasonic Industrial Automation Sales LNJ206R5RUX	1.25 mm	1.7 mm	Standard	10 mA		1.1 mm	Rectangle with Flat Top	Surface Mount	1.25 mm	1.7 mm	0.4 mcd	2.03 V	700 nm	Red	0805	Red	Diffused
