MX25U6432 Series

Manufacturer: Macronix

Catalog

IC FLASH 64MBIT SPI/QUAD 8XSON

Part	Memory Organization [y]	Memory Organization [x]	Memory Interface	Supplier Device Package	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Clock Frequency	Mounting Type	Memory Size	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Access Time	Memory Organization	Package / Case

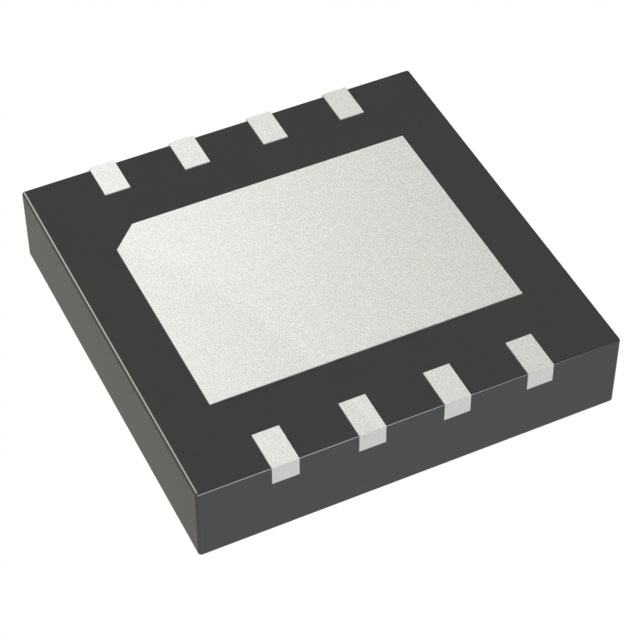

Macronix MX25U6432FZCI02	1 2 4	16 M 32 M 64 M	QPI SPI - Quad I/O	8-XSON (4x4)	FLASH - NOR (SLC)	1.65 V	2 V	8-XDFN Exposed Pad	133 MHz	Surface Mount	8 MB	40 µs	3 ms	FLASH	85 C	-40 ¯C	Non-Volatile	6 ns
Macronix MX25U6432FM2I02			QPI SPI - Quad I/O	8-SOP	FLASH - NOR	1.65 V	2 V	8-SOIC	133 MHz	Surface Mount	8 MB	40 µs	3 ms	FLASH	85 C	-40 ¯C	Non-Volatile		8 M	0.209 in 5.3 mm
Macronix MX25U6432FBBJ02	1 2 4	16 M 32 M 64 M	QPI SPI - Quad I/O	14-WLCSP	FLASH - NOR (SLC)	1.65 V	2 V	14-XFBGA WLCSP	120 MHz	Surface Mount	8 MB	40 µs	3 ms	FLASH	105 °C	-40 °C	Non-Volatile	6 ns

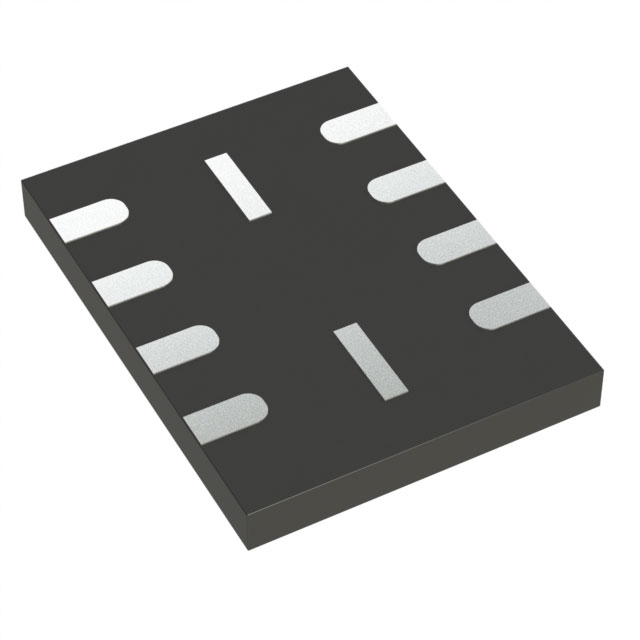

Macronix MX25U6432FZBI02			QPI SPI - Quad I/O	8-USON (4x3)	FLASH - NOR	1.65 V	2 V	8-UDFN Exposed Pad	133 MHz	Surface Mount	8 MB	40 µs	3 ms	FLASH	85 C	-40 ¯C	Non-Volatile	6 ns	8 M
Macronix MX25U6432FM2Q02	1 2 4	16 M 32 M 64 M	QPI SPI - Quad I/O	8-SOP	FLASH - NOR (SLC)	1.65 V	2 V	8-SOIC		Surface Mount	8 MB			FLASH	125 °C	-40 °C	Non-Volatile			0.209 in 5.3 mm
