PM20204V Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

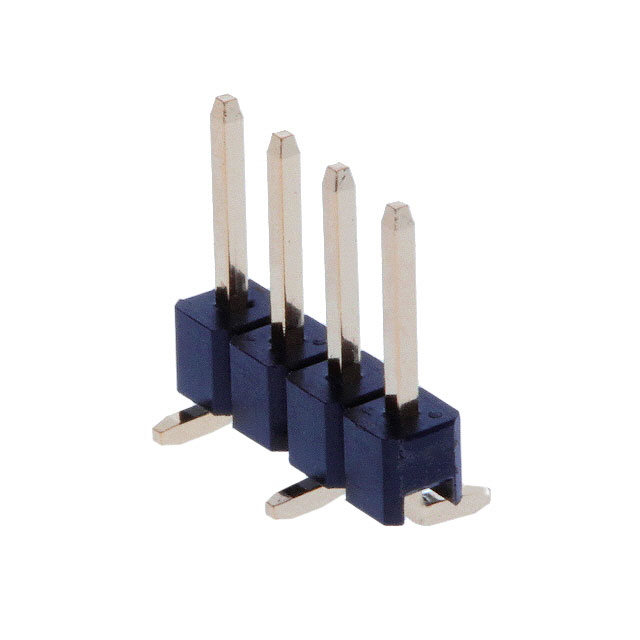

PIN HEADER, SMT, SINGLE ROW, .10
| Part | Number of Rows | Number of Positions | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Fastening Type | Shrouding | Insulation Material | Contact Material | Number of Positions Loaded | Insulation Color | Contact Shape | Termination | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Connector Type | Contact Type | Mounting Type | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 1 | 4 | 0.1 " | 2.54 mm | -40 C | 105 ░C | Flash | Push-Pull | Unshrouded | Polyethylene | Copper Zinc | All | Black | Square | Solder | 6 mm | 0.236 in | 0.098 " | 2.5 mm | Header | Male Pin | Surface Mount | Gold | |||
 METZ CONNECT USA Inc. | 8 | 0.1 " | 2.54 mm | -40 C | 105 ░C | Flash | Push-Pull | Unshrouded | Polyethylene | Copper Alloy | All | Black | Square | Solder | 6 mm | 0.236 in | 0.098 " | 2.5 mm | Header | Male Pin | Surface Mount | Gold | 0.1 in | 2.54 mm | 2 |
