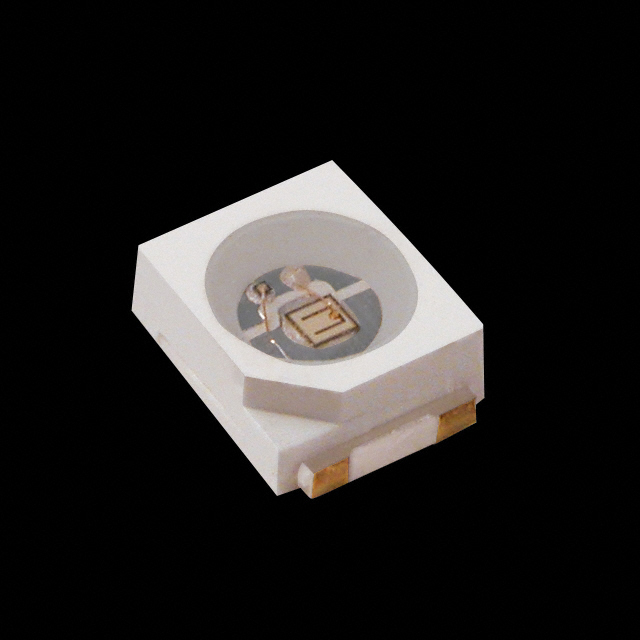

AA3529 Series
Manufacturer: Kingbright
Beta
⌘K
LED AA3529 ORANGE 618NM SMD
| Part | Thermal Resistance of Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Viewing Angle | Height - Seated (Max) | Height - Seated (Max) [Max] | Lumens/Watt @ Current - Test | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Luminous Flux @ Current/Temperature | Mounting Type | Wavelength | Package / Case | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 80 °C/W | 0.11 " | 3.2 mm | 0.126 " | 2.8 mm | SMD | 120 ° | 1.55 mm | 0.061 in | 7 lm/W | 150 mA | 25 °C | 3.6 V | 150 mA | 4 lm | Surface Mount | 618 nm | 2-PLCC | |
Kingbright | 90 °C/W | 0.11 " | 3.2 mm | 0.126 " | 2.8 mm | SMD | 120 ° | 1.55 mm | 0.061 in | 11 lm/W | 150 mA | 25 °C | 3.6 V | 150 mA | 6 lm | Surface Mount | 590 nm | 2-PLCC | Yellow |
