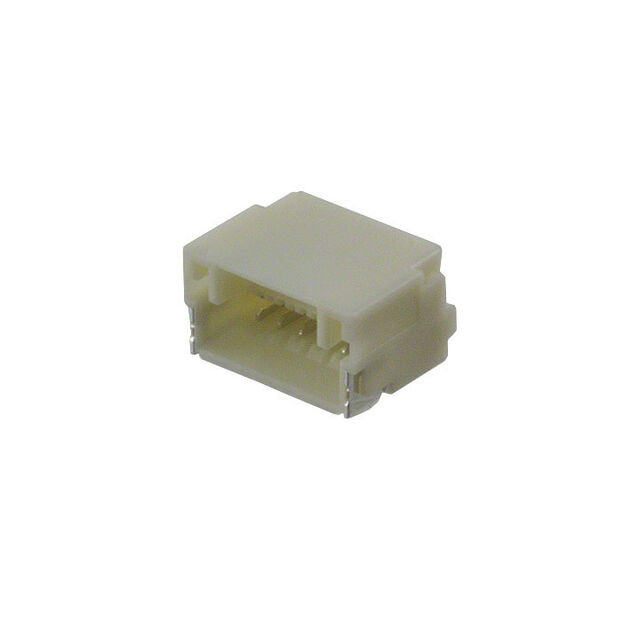

SM06B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 6POS 1MM
| Part | Shrouding | Style | Voltage Rating | Number of Positions | Insulation Color | Contact Material | Pitch - Mating | Pitch - Mating | Fastening Type | Material Flammability Rating | Number of Positions Loaded | Number of Rows | Insulation Material | Contact Finish - Post | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Termination | Insulation Height | Insulation Height | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Shrouded - 4 Wall | Board to Cable/Wire | 50 V | 6 | Natural | Copper Alloy | 1 mm | 0.039 in | Latch Holder | UL94 V-0 | All | 1 | Nylon Polyamide (PA) | Tin | Header | 85 °C | -25 °C | Solder Retention | Solder | 4.4 mm | 0.173 in | Male Pin | Right Angle Surface Mount |
