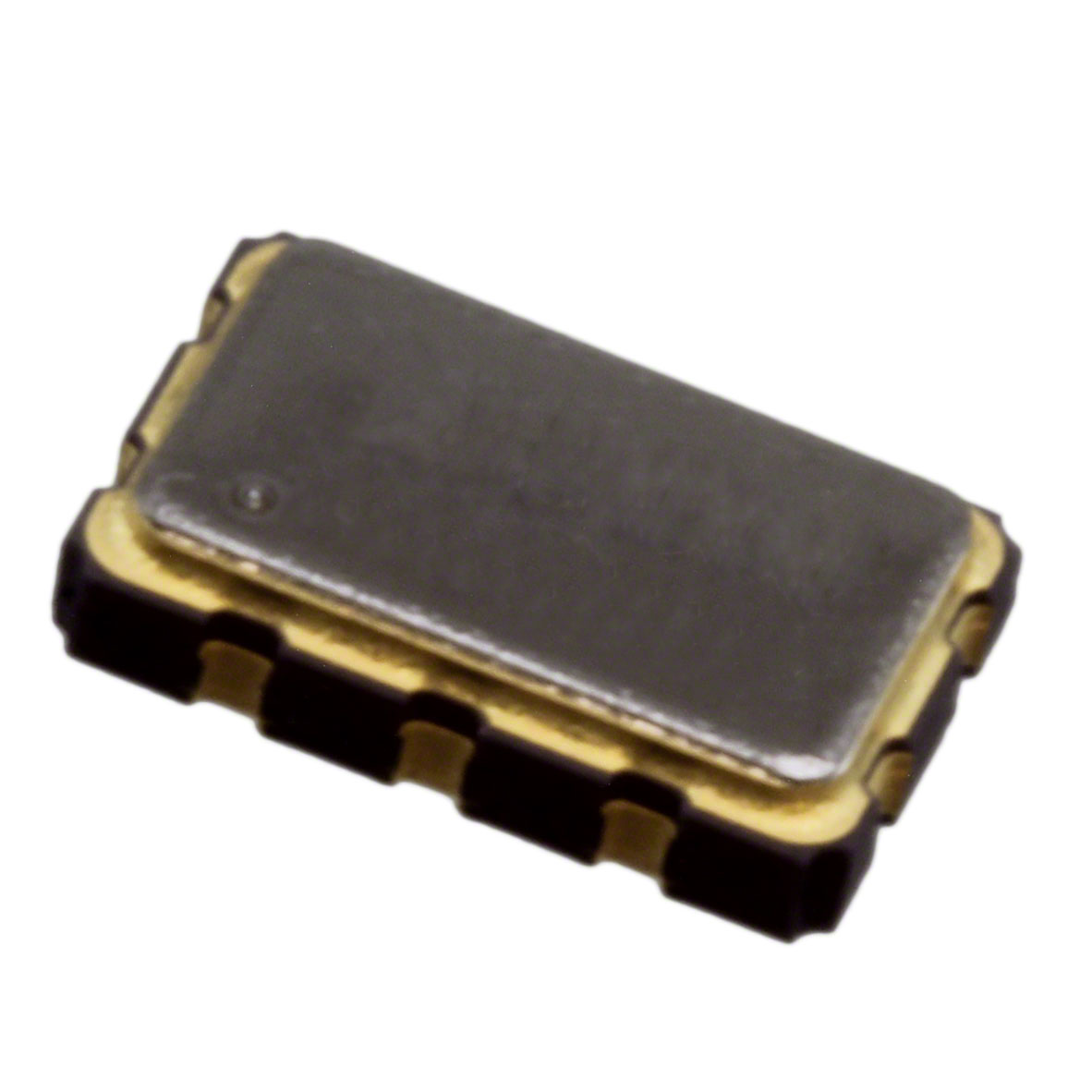

XLH536 Series

Manufacturer: Renesas Electronics Corporation

Catalog

Catalog

XTAL OSC XO 59.3000MHZ HCMOS SMD

...

Part	Frequency Stability	Frequency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Type	Current - Supply (Max) [Max]	Package / Case	Function	Base Resonator [custom]	Voltage - Supply	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
Renesas Electronics Corporation XLH536059.300000I	25 ppm	59.3 MHz	3.2 mm	0.126 in	5 mm	0.197 in	HCMOS	85 °C	-40 C	1.2 mm	0.047 "	Surface Mount	XO (Standard)	47 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V
Renesas Electronics Corporation XLH536111.111000X	25 ppm	111.111 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	70 °C	-20 ░C			Surface Mount	XO (Standard)	47 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536024.000000I	25 ppm	24 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	35 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536001.152000I	25 ppm	1.152 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	32 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536074.927880I	25 ppm	74.92788 MHz	3.2 mm	0.126 in	5 mm	0.197 in	HCMOS	85 °C	-40 C	1.2 mm	0.047 "	Surface Mount	XO (Standard)	47 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V
Renesas Electronics Corporation XLH536001.250000I	25 ppm	1.25 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	32 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536002.000000I	25 ppm	2 MHz	3.2 mm	0.126 in	5 mm	0.197 in	HCMOS	85 °C	-40 C	1.2 mm	0.047 "	Surface Mount	XO (Standard)	32 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V
Renesas Electronics Corporation XLH536168.960000I	25 ppm	168.96 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	55 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536006.000000I	25 ppm	6 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	32 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
Renesas Electronics Corporation XLH536081.982492I	25 ppm	81.982492 MHz		0.132 "	5.15 mm	0.203 in	HCMOS	85 °C	-40 C			Surface Mount	XO (Standard)	47 mA	6-SMD No Lead	Enable/Disable	Crystal	3.3 V	0.055 in	1.4 mm	3.35 mm
