TERM BLOCK HDR 7POS 5.08MM

Part	Mounting Type	Material Flammability Rating	Insulation Height	Insulation Height	Header Orientation	Contact Mating Finish	Number of Positions	Color	Contact Tail Length	Contact Tail Length	Positions Per Level	Type	Number of Levels	Termination Style	Pitch [x]	Pitch [x]	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
TE Connectivity Raychem Cable Protection 1546109-7	Through Hole	UL94 V-0	8.36 mm	0.329 in	90° Right Angle	Tin	7	Gray	3.5 mm	0.138 in	7	Header Male Pins Shrouded (4 Side)	1	Solder	0.2 in	5.08 mm	300 V	-40 °C	110 °C	Copper Alloy
TE Connectivity Raychem Cable Protection 1546109-4	Through Hole	UL94 V-0	8.36 mm	0.329 in	90° Right Angle	Tin	4	Gray	3.5 mm	0.138 in	4	Header Male Pins Shrouded (4 Side)	1	Solder	0.2 in	5.08 mm	300 V	-40 °C	110 °C	Copper Alloy
TE Connectivity Raychem Cable Protection 1546109-5	Through Hole	UL94 V-0	8.36 mm	0.329 in	90° Right Angle	Tin		Gray	3.5 mm	0.138 in	5	Header Male Pins Shrouded (4 Side)	1	Solder	0.2 in	5.08 mm	300 V	-40 °C	110 °C	Copper Alloy

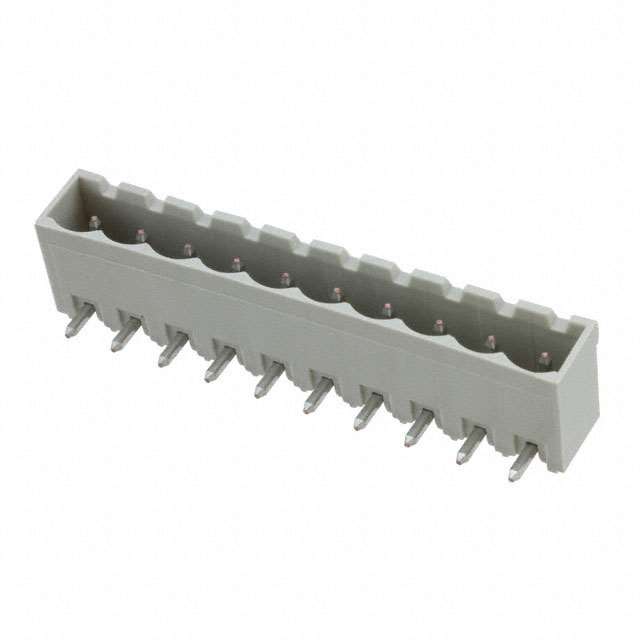

TE Connectivity Raychem Cable Protection 1-1546109-0	Through Hole	UL94 V-0	8.36 mm	0.329 in	90° Right Angle	Tin	10	Gray	3.5 mm	0.138 in	10	Header Male Pins Shrouded (4 Side)	1	Solder	0.2 in	5.08 mm	300 V	-40 °C	110 °C	Copper Alloy
